Leica IC90 E User Manual Get Set! 23
HDMI Mode – Capturing Images Without a Computer or Without a Wireless
Device (Continued)

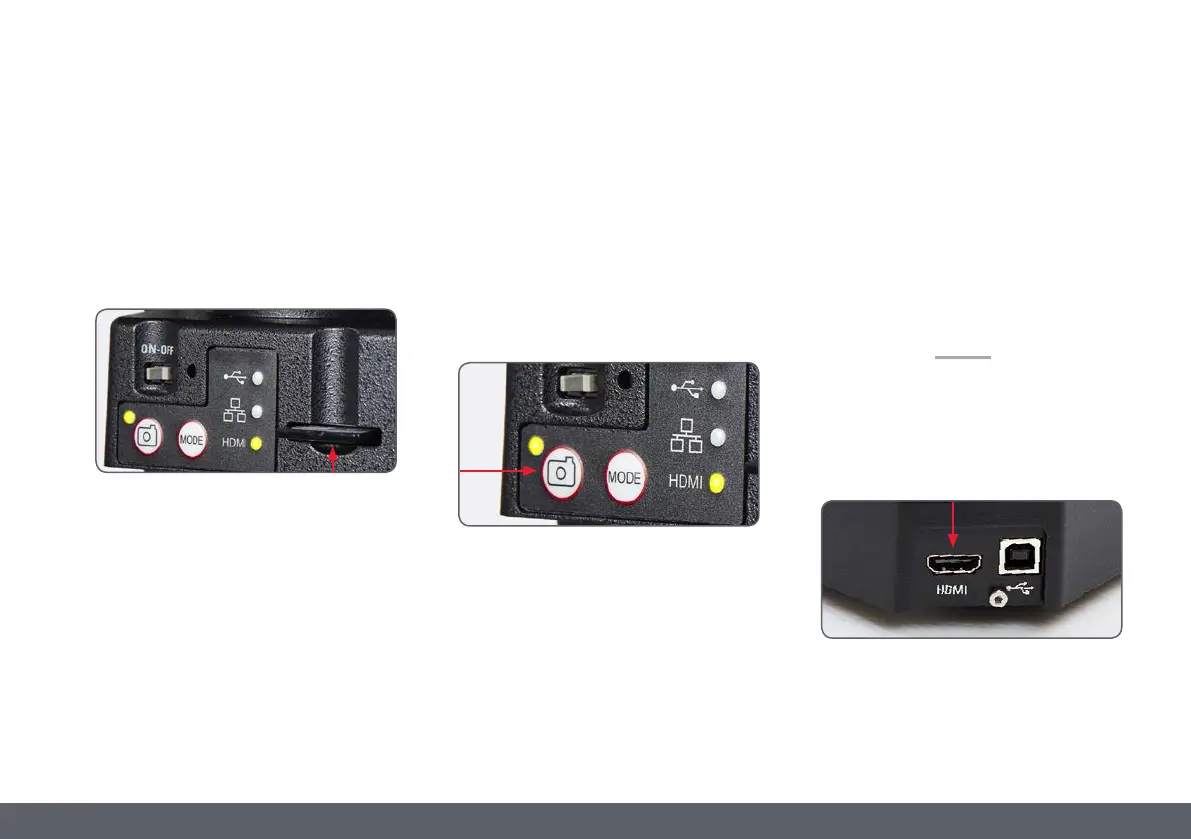

5. Insert the SD memory card into the slot
on the side of the Leica IC90 E until the
card clicks into place. The Leica IC90 E is
now ready to capture images onto the SD
memory card.
Capturing an image
•
It is critical to properly set the micro-
scope eyepieces’ diopters to ensure that
the images on the SD memory card are in focus
when the image is in focus through the micro-
scope’s eyepieces. Refer to the microscope’s
user manual for proper diopter setting. Focus
the microscope at high magnification, then
change to the magnification at which you wish
to capture the image. Do not refocus the micro-
scope. You can also use the HDMI output and
an HD display (not provided) as a focusing aid.
6. To capture an image onto SD card, press the
capture button, located on the side of the
Leica IC90 E camera.
O You will hear a beep to acknowledge the
button was pressed.
O The status LED flashes green while the
image is being captured.
O You will hear another beep when the Leica
IC90 E has completed capturing the image
and the status LED will return to steady green.
The image is now saved on the SD card. Images
which are on the SD card can be viewed using
the optional remote control. See "Camera
Remote Control" on page 26.
7. While in HDMI mode, you can connect the
provided HDMI cable from the camera to
an HD monitor or HD projector to share the
image.
