30

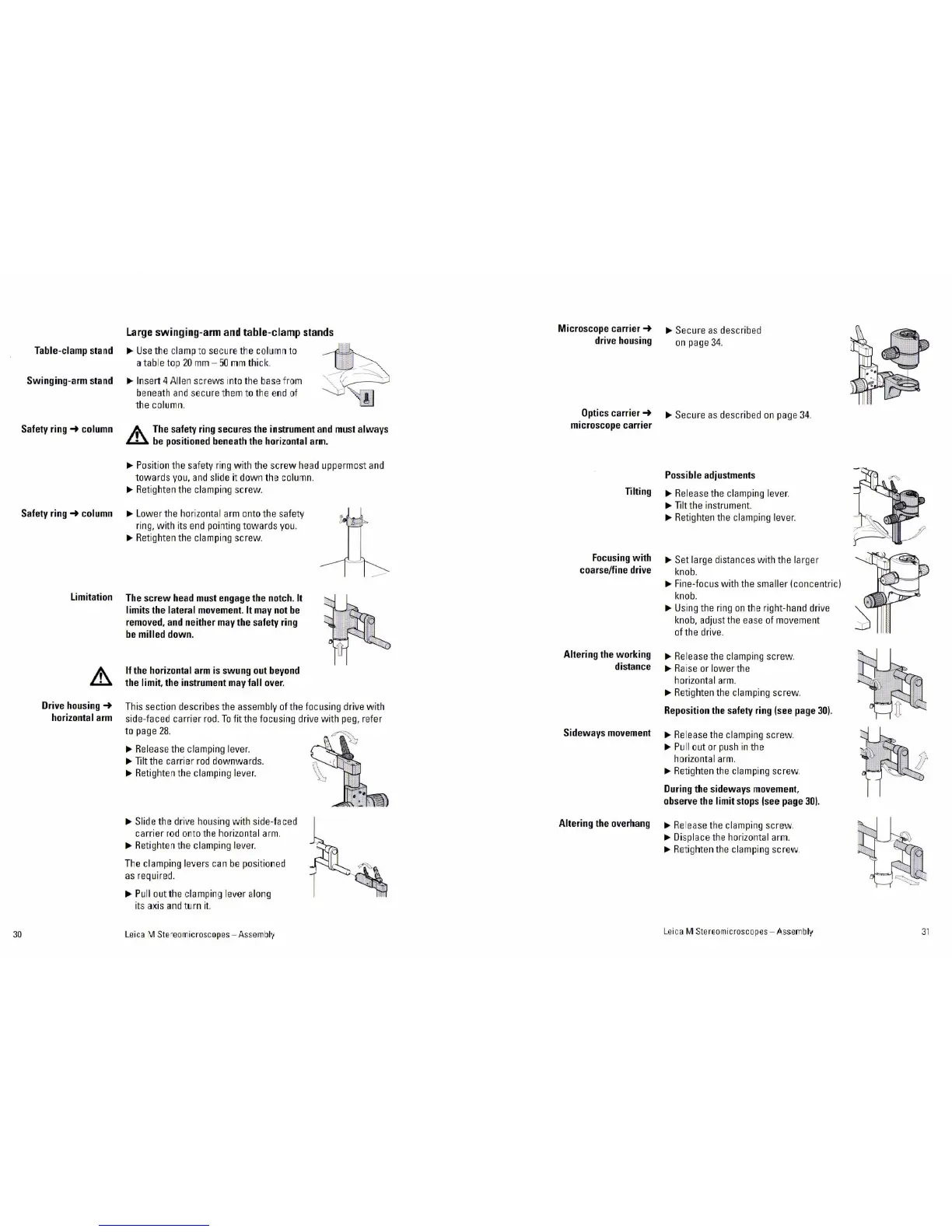

Large swinging-arm and table-clamp stands
Table-clamp stand 11>- Use the clamp to secure the coiLJmll to
a tab le top 20 mm - 50 mm thick.
Swinging-arm stand 11>- Insert 4 Alien screws i nto the base f rom
Safety ring -+ co l umn
Safety ring -+ column
limitation
Drive hous i ng -+
horizontal arm
beneath and secure t hem to the end oi
the column.
.I.\ The safety r ing secures the instrument and must always
~ be positioned beneath the horizontal arm.
11>- Position the safety ri ng with the screw head u ppermos t and
towards you, and slide it down the column .
11>- Re tighten the clamping screw.
11>- lower the horizontal arm onto the safety
ri ng , with its end poi11ting towards you.
11>- Ret ighten the clampi11g screw.
The screw head must engage the notch . lt
limits the lateral movement. lt may not be
removed, and neither may the safety ring
be milled down.
If the horizontal arm is swung out beyond
the limit, the instrument may fall over .
Th is section describes the assembly of the focusing drive with
side-faced carrier
rod . To fit the focusing drive with peg , refer
to page 28 .
11>- Re lease the clamping leve r.
11>- Tilt the carrier rod downwards.
11>- Retighten the clamping lever.
11>- Slide the dri ve housing with side-fa ced
carrier rod on to the horizontal arm.
11>- Ret igh ten the clamping lever.
The clamping levers can be posi t ioned
as required.
11>- Pu ll outthe c lamp ing lever a long
its axis and turn it.
Leica 1\11 Ste"eomicroscopes - Assembly
Microscope carrier-+
dr i ve housing
Optics carrier -+
microscope carrier
Tilting
Focusing with
coarse/fine drive
Altering the working
distance
Sideways movement
11>- Secure as des c rib ed
on page 34.
11>- Secure as described on page 34 .
Possible adjustments
11>- Release t he clamping lever.
11>- Tilt the instrument.
11>- Retighten the cl a mping lever.
11>- Set large distances with the larger
knob.
11>- Fine-focus with the smaller ~concentricl
knob.
11>- Using the ring on the right-hand drive
knob, adjust the ea se of movement
of the d ri ve.
11>- Re lease the clamping screw.
11>- Raise or lower the
horizontal arm .
11>- Retighten the clamping screw.
Reposition the safety ring ~see page 301.
11>- Re l ease the clamping screw.
11>- Pu ll out or push in the
horizontal arm .
11>- Retighten the clamping screw.
During the sideways movement,
observe the limit stops tsee page 301.
Altering the overhang 11>- Re lea se the clamping screw.
11>- Di splace the horizontal arm.
11>- Re tighten the clamping screw.
Leica M Ste reo mi c ro scopes - Ass em bly
31
