Leica MS5 - Interpupillary Distance

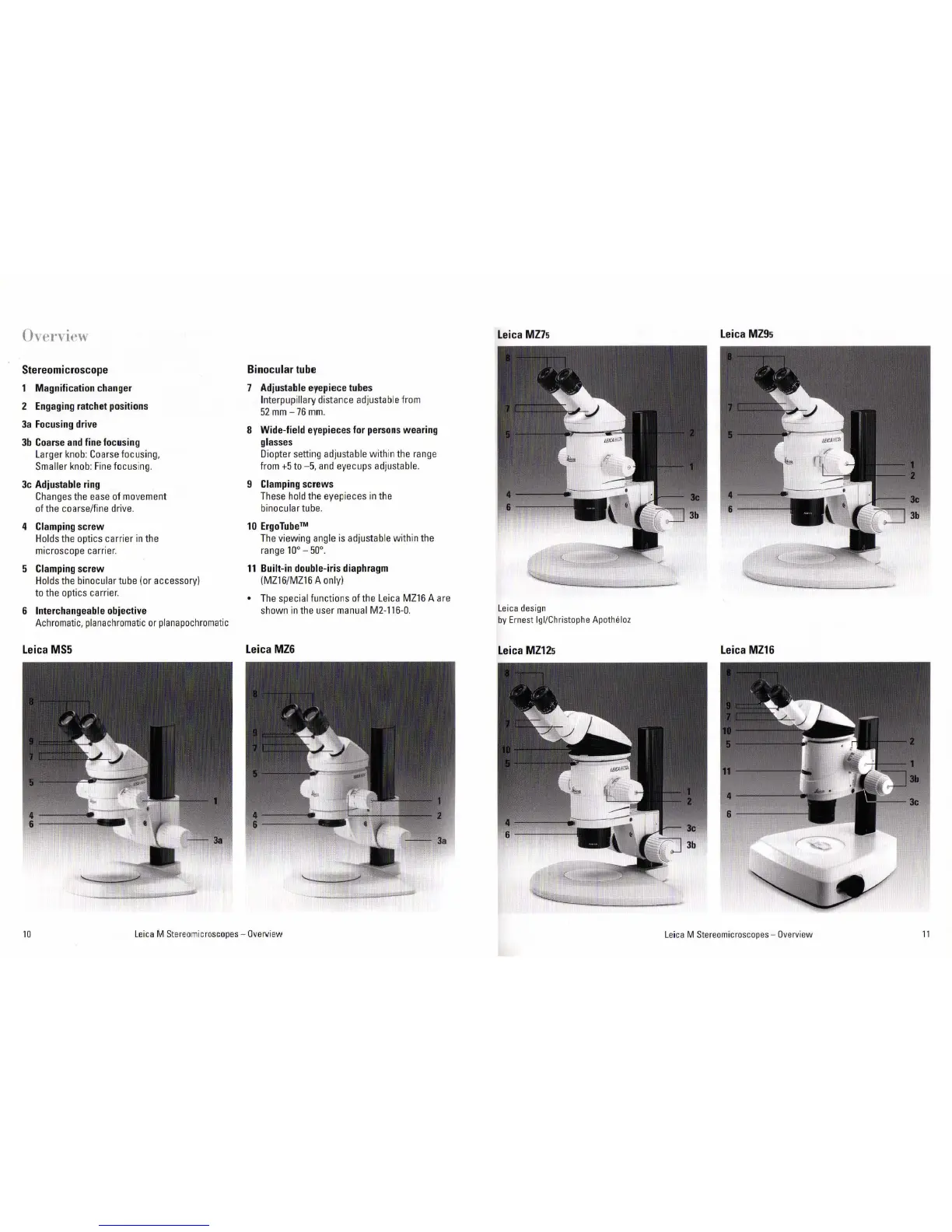

Overview
Stereomicroscope
Magnification changer
2 Engaging ratchet positions
3a Focusing drive
3b Coarse and fine focusing
Larger knob: Coarse focusin g,
Smaller knob: Fine focusi ng.
3c Adjustable ring
Changes the ease of movement
of the coarse/fine drive.
4 Clamping screw
Holds the optics carrier in the
microscope
carrier.
5 Clamping screw
Holds the binocular tube ( or accessory)
to the optics carrier.
6
Interchangeable objective
Achromatic , planachromatic or planapochromatic
Leica MS5
Binocular tube
7 Adjustable eyepiece tubes
Interpupillary distance adju stab le f ro m
52 mm -76 mm.
8 Wide-field eyepieces for persons wearing
glasses
Diopter setting adjustable wi th in the range
fr om +5 to -5, and eye cups adjustable.
9 Clamping screws
These hold the eyepieces in the
binocular tube.
10 ErgoTube™
The viewing angle is adjustable within the
r
ange 10 °- 50 °.
11 Built-in double-iris diaphragm
(MZ16/MZ16 A only)
• The special functions of the Leica MZ16 A are
shown in the user manual M2-116-0.
Leica MZ6
10
Leica M Stereo m ic r oscopes - Overv i ew
Leica MZ7s
Leica MZ9s
Leica de sign
by Erne st lgi/Christophe Apotheloz
Leica MZ12s
Leica MZ16
Le i ca M Stereomicroscopes - Overview
11
