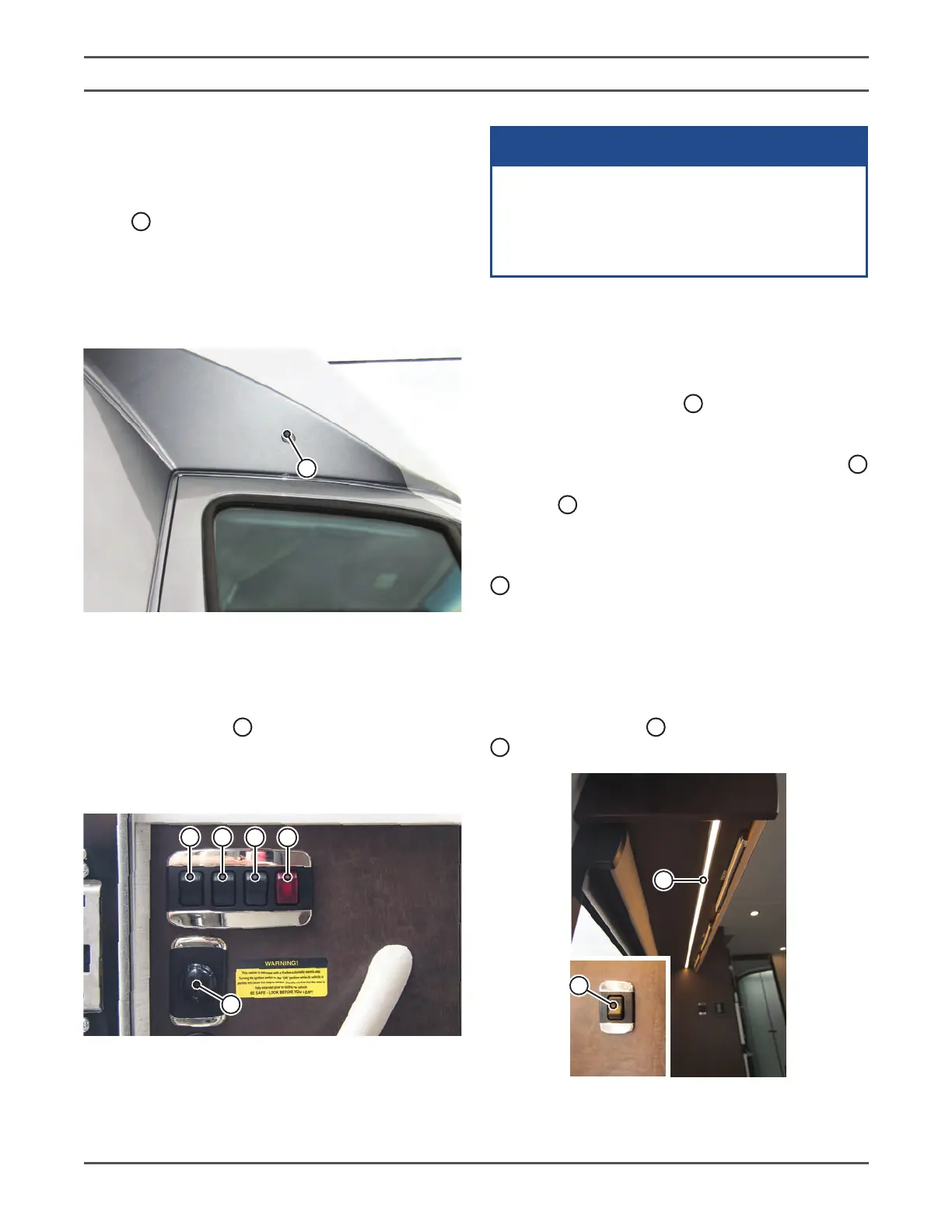

LIGHTING
CAB ENTRY LIGHT
A light
4
is located above each cab door and comes
on when the door is opened� It lights up the seat and
cab area to facilitate entry. When the door is opened,
light comes on. When the door is closed, the light
goes out. The light is powered by the Mercedes
Sprinter chassis system.
4
INTERIOR OVERHEAD LIGHT
DIMMER SWITCH
Turn dimmer switch
5
to turn on the interior ceiling
lights� Rotate the dimmer switch to control the interior
light level. Turn the dimmer switch back to turn off the
lights�
5
6
7
8
9
Turn the battery disconnect switch to internal
12 volt DC power to operate the interior
roof lights. Refer to the “Electrical System
Operation” section in this manual for battery
disconnect switch details.
NOTICE
EXTERIOR/INTERIOR LIGHT
SWITCHES
Depress the top of switch
7
to turn on the exterior
patio lights, depress the bottom for assist handle and
entrance step ground illumination lights (in the center
position lights are off). Depress the top of switch
8
to turn on the interior accent lights. Depress the top
of switch
9
to turn on the exterior storage and utility
center lights�
NOTE: Depress the top of the step override switch
6
, located inside the coach entrance, to prevent
the steps from retracting when the coach door is
closed. (Refer to the "Step Override Switch" section
for details.)
UNDER CABINET LIGHT SWITCHES
Under cabinet lights
10
are controlled by switches
11
mounted on the wall adjacent to it.
10
11
