SLIDE OUT ROOM EMERGENCY
OPERATION
If the slide out room fails to extend or retract
electrically, you can manually operate the slide out
mechanism� Manual operation of the slide out is
not recommended unless the slide out needs to be
retracted in order to move the motorhome.
The slide out electrical function is protected
by a fuse located on the power distribution
panel. Check that the fuse is intact before
resorting to manual slide out operation.
NOTICE

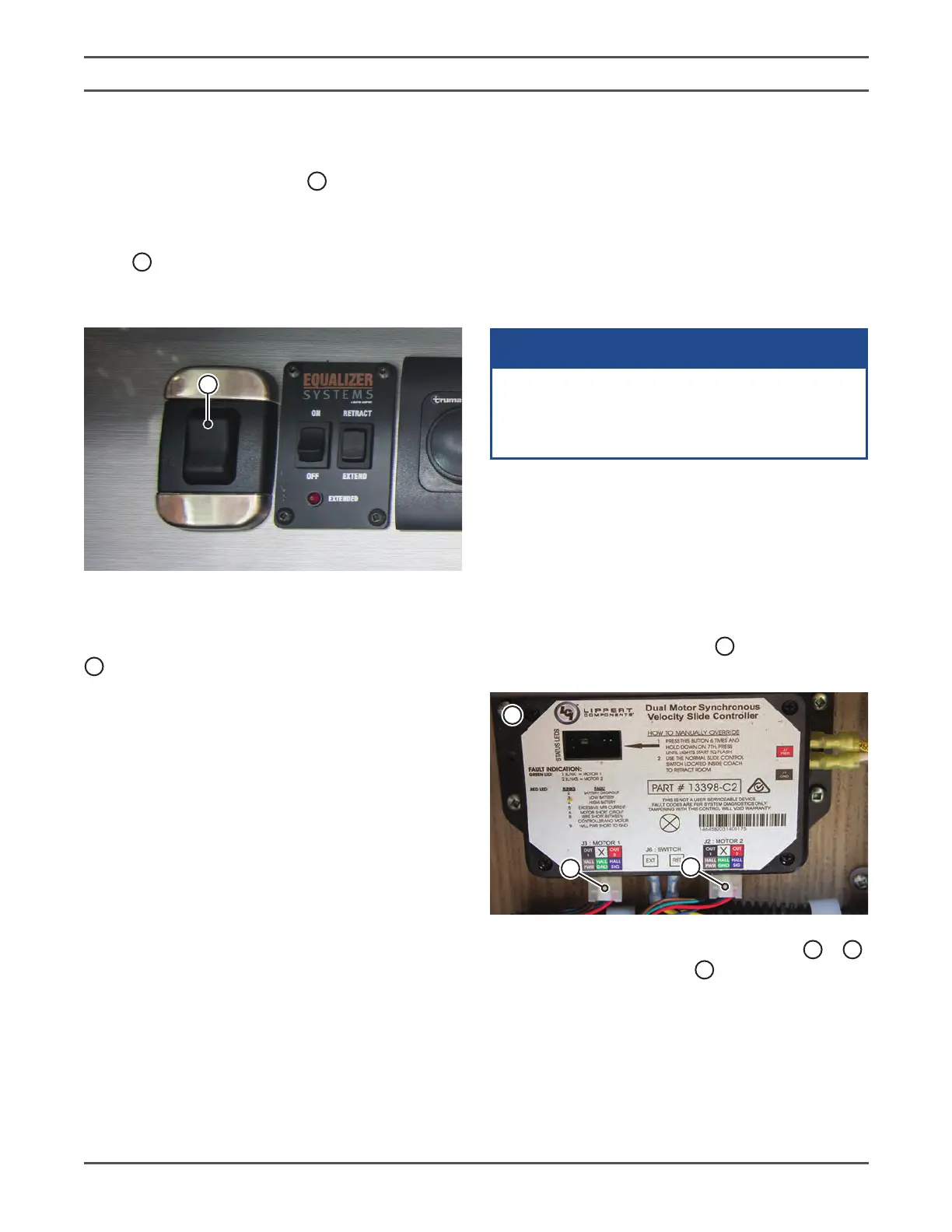

ACCESSING THE MOTOR MOUNTING SCREW
WHEN SLIDE OUT IS IN (U24CB AND U24FX)
1� Turn the battery disconnect switch to the “OFF”
position, and disconnect the shore power. Refer
to the "Battery Disconnect Switch" section in the
“Electrical System Operation” section.
2� Locate the control module
4
(installed in lower
galley.)
4
5
6
3� Unplug both motor electrical connectors (
5
&
6
)
from the control module
4
�
EXTENDING THE SLIDE OUT ROOM
The slide out control switch
3
is located in the
cabinet above the coach entrance doorway.
Depress and hold the bottom of the slide out control
switch
3
u nti l th e sl id e ou t ro om i s f ull y ex ten de d, t hen
release the switch� Fully extend the slide out room to
ensure the all-weather seals are in correct alignment�
3
RETRACTING THE SLIDE OUT ROOM
Depress and hold the top of the slide out control switch
3
until the slide out room is fully retracted, then
release the switch� Fully retract the slide out room to
ensure the all-weather seals are in correct alignment�
SERVICING ALL-WEATHER SEALS
Cracked or worn all-weather seals around the slide
out room may allow dirt and moisture to enter your
motorhome which could lead to premature interior
wear� Inspect the all-weather seals in the spring and
fall, and have them replaced if necessary.
Extensive travel and use in severe weather conditions
may cause more rapid deterioration of some
components, especially all-weather seals.
Have professional service personnel, adjust, maintain
and replace the all-weather seals to extend the life
and comfort of your slide out room�
