UNITY MOTORHOME MOTORHOME OPERATION

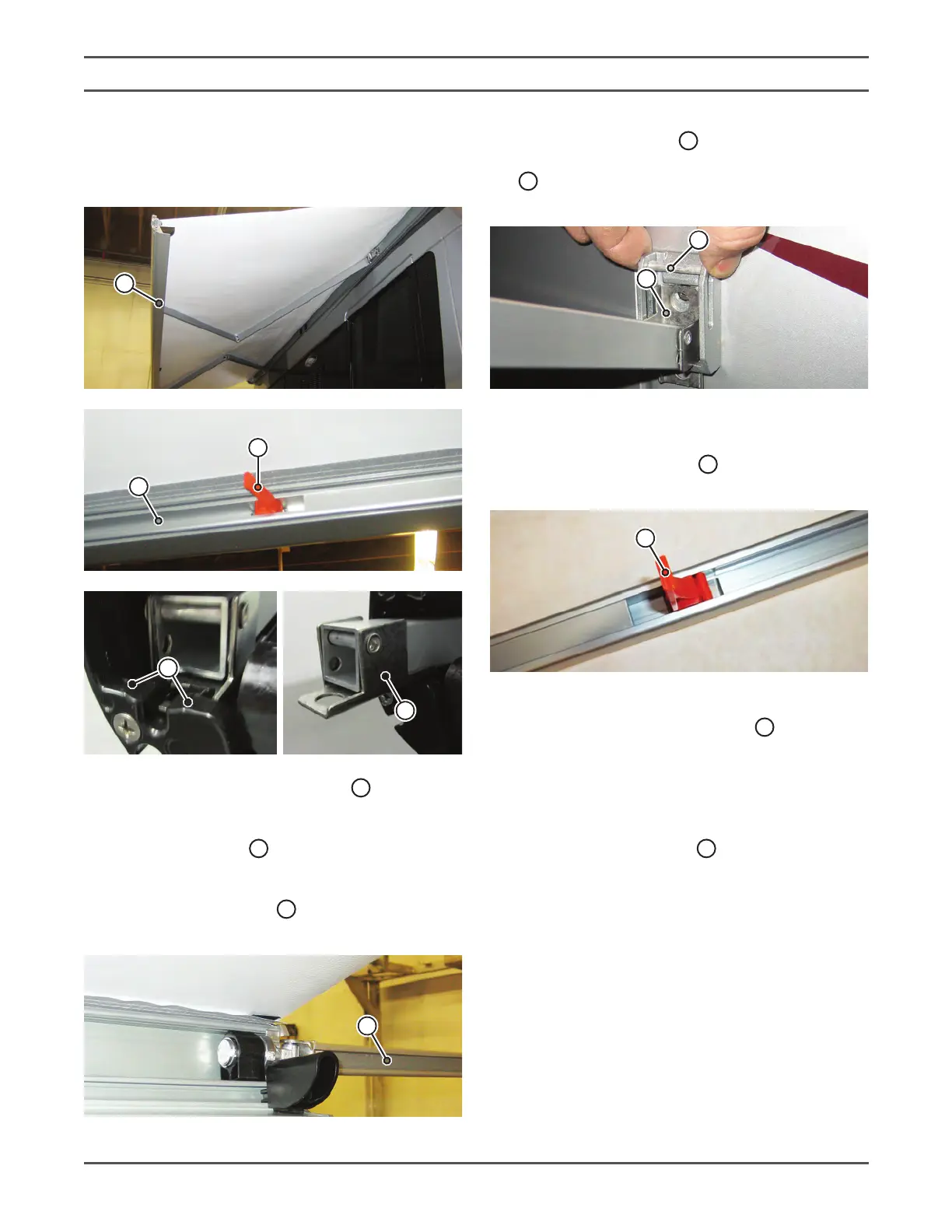

NOTE: Ensure that the support leg feet have
been properly locked into the tabs on the lead
rail end caps when retracting the awning�
2
4
5
7
6
3� Slide out the right support leg
4
fully until it
reaches the end cap stop�
NOTE: Close latch
5
to clear the awning support
hinge�
4� Rotate the support leg
4
90 degrees and swivel
the support leg down�
4
5� Lift the retaining pin
8
on the coach awning
support bracket and insert the support foot plate
9
. Allow the retaining pin to drop down and lock
the foot plate in place�
8
9
6� Repeat steps 3, 4, 5 and 6 to install the left
support leg�
7� Ensure that the latches
10
in the left and right
support legs are unlocked (raised).
10
8� Lift the lead rail of the awning to the desired height
and lock the left and right latches
10
�
NOTE: Adjust the side of the awning furthest away
from the coach door to a slightly lower position to
enable rainwater to run off�
9� Turn on the awning light
11
if desired�
RETRACTING THE AWNING
1� Release and stow the support legs by following
the steps in the "Extending the Awning" section in
reverse order.
2� Depress and hold the awning switch located on
passenger side in the “IN” (retract) position until
the awning fully retracts�
NOTE: Store the support leg and foot inside the
lead rail�
