UNITY MOTORHOME APPLIANCE AND EQUIPMENT OPERATION
HDMI MATRIX SWITCH SCHEMATIC
User Manual
Matrix is a perfect matrix product with detached external audio output ports,
can connect 4 different HDMI signal sources and 2 displays. It can easily
any 1 or 2 of 4 input signals to 2 displays by using remote control or pushing
The output signals can be same or different. By using this product can
avoid the need to disconnect and reconnect signal sources to displays frequentl
y.
can smartly select input signal sources with priority order and jump over those
signal sources which are not in work. It can optimize your home theatre
fect.
TURES
its 4 input ports are separately connected to 4 signal sources with HDMI
the HDMI Matrix automatically recognizes the last connected port and
switches its input signal to 2 displays.
2.The
needed input signal sources must be selected by using remote control or
pushing button in order to make 2 displays showing 2 dif
ferent signals.
Work with all HDCP-enabled sources devices and display devices with HDMI
Support high resolutions up to 1920*1200, including 480i/p, 576i/p, 720i/p,
1080i and 1080p,3840x2160@25/30Hz.
5. Switch easily between any 4 HDMI sources.
6.
The 2 displays can get the same or different signals without mutual interaction.
7. Connected easily to dual-channel audio receiver device.
8. Support HDMI 1.4.
9. HDCP
Compliant.
10. Support DVI device with DVI to HDMI adapte
r.
1. Plug-and-play and no need of setting.
12. Metal casing design and overall shielding without signal interference.
13. Use remote control or push button to freely select input source.
14. LED indicates signal /power mode.
3.0 P
ACKAGE CONTENTS
attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
1.HDMI 4X2 Matrix ---------------------1PCS
2.DC 5V Power adapter----------------1PCS
3.Remote control-------------------------1PCS
4.User Manual----------------------------1PCS
4.0 TECHNICA
L PARAMETERS
With different brands of the input or output device, the length
of the connecting cables will differ too.

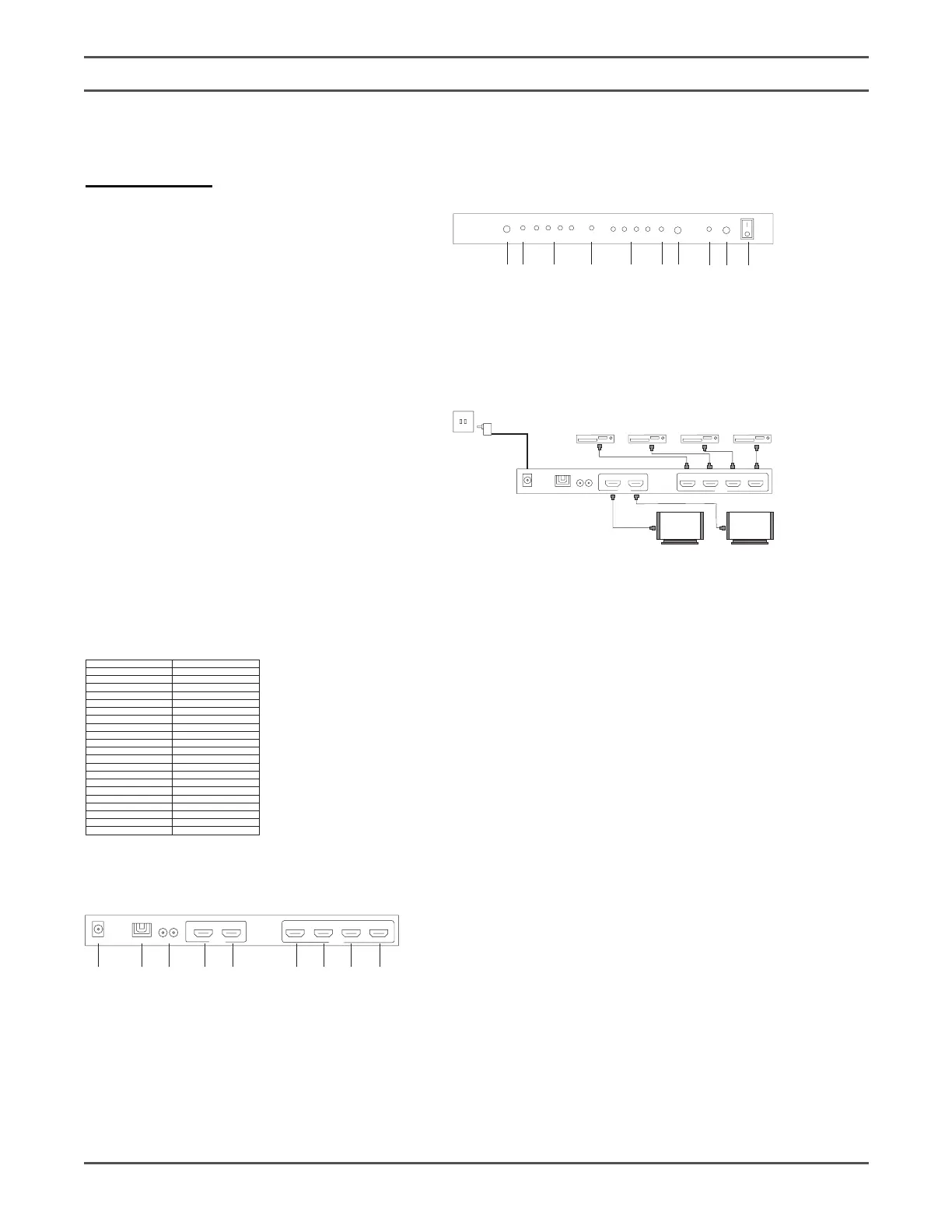

5.0 P
ANEL DESCRIPTIONS
study the panel drawings below and become familiar with the signal
input(s), output(s) and power requirements.
1.DC POWER INPUT
PORT
OSLINK DIGITAL AUDIO OUTPUT
AUDIO OUTPUT
T A
T B
SIGNAL 1
7.HDMI INPUT SIGNAL 2
8.HDMI INPUT SIGNAL 3
9.HDMI INPUT SIGNAL 4
10.OUTPUT B SELECT
11.OUTPUT B STATE
12.OUTPUT B PORT STATE
13.REMOTE CONTROL RECEIVER
14.OUTPUT A PORT STATE
15.OUTPUT A STATE
16.OUTPUT A SELECT
17.POWER INSTRUCTIONS
18.RESET BUTTON
19.POWER SWITCH
6.0 CONNECTION DIAGRAM
The pictures and technical parameter involved are only for your reference,
As for specific circumstances, please be subject to the actual product.
7.0 INSTALLATION AND PRECAUTIONS
To avoid electric shock, product damage and to protect your safety, please notice
the following:
1.Please slowly plug or unplug signal cables and do not often plug, unplug, or
shake them.
2.The equipment should not be placed under the sun, rain and damp or unventilat-
ed environment.
3.Liquid items should not be placed on the equipment.
4.Do not install the equipment near heat sources such as fire, power, or other
amplifiers that produce heat.
5.Do not insert the metal or other objects to the equipment in addition to connect-
ing cables to ports.
6.Do not demolish the equipment by yourself; it should be maintained by
professional maintenance staff.
Warning! Electronic products can't be discarded at will, it must be recycled
through special ways.
HDMI Source Input Port4
Display Device Output Port 2
Source Port Connector HDMI 19PIN
Display Device Port Connector HDMI 19PIN
HDCP CompliantYES
Single Link Range3840x2160
Input Video Signal0.5-1.0 Volts P-P
Input DDC Signal 5 Volts P-P(TTL)
Deep Color 36bit
HDMI Version HDMI1.4
BandwidthUp to 340Mhz
Signal Speed Up to 10.2Gbps
The length of input cable PS3°‹15M£ªBLUE DVD°‹15M
The length of output cable °‹25M
The cable standard26AWG HDMI1.4
Vertical Frequency Range 30Hz
Power Consumption(max.)6.5Watts
Operation Temperature0°Ê-70°Ê
Working VoltageDC 5V
Power Adaptor 5V 2A
Net Weight 1.08kg
Dimension: L*W*H(mm) 270*130*20
HDMI
MATRIX
DC 5V TOSLINK R/L AUDIO
HDMI
HDMI
OUTPUT A OUTPUT B INPUT 1 INPUT 2 INPUT 3 INPUT 4
(1) (2) (3) (4) (5) (6) (7) (8) (9)
OUTPUT B
SELECT
BON B4 B3 B2 B1
SIGNALA1
A2 A3 A4
AON
OUTPUT A
SELECT
POWER
REST
ON
OFF
(10) (11) (12) (13) (14) (15) (16)
(17)
(18) (19)
HDMI
MATRIX
DC 5V TOSLINKR/L AUDIO
HDMI
HDMI
OUTPUT A OUTPUT BINPUT 1INPUT 2INPUT 3INPUT 4
HDMI Source 1 HDMI Source 2 HDMI Source 3 HDMI Source 4
HDTV HDTV
(3D Ultra HD 4Kx2K HDMI 4x2)
