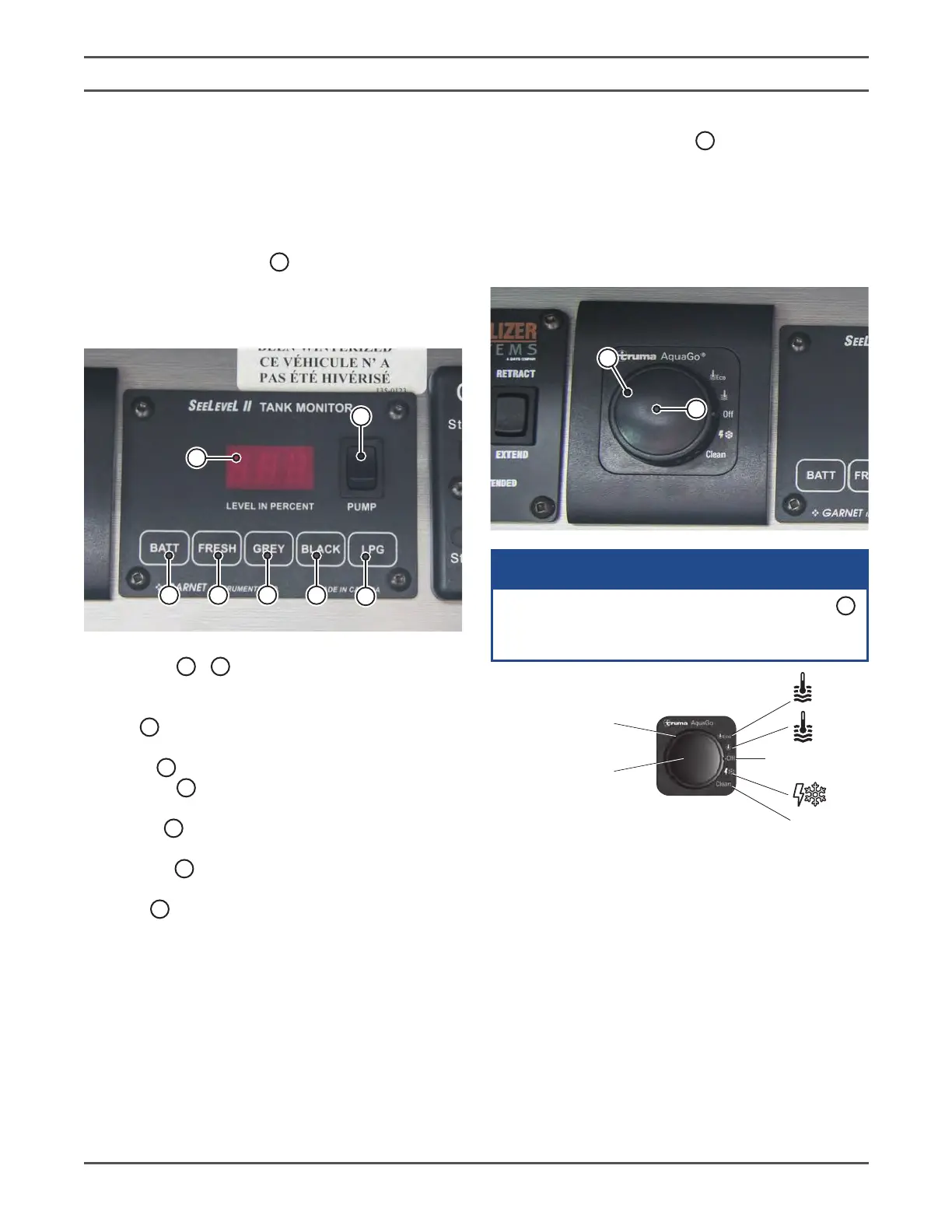

UNITY MOTORHOME ELECTRICAL SYSTEM OPERATION
WATER HEATER SWITCH
8
This switch controls the power to the water heater.
Turn the switch counterclockwise from the "OFF"
position for water heater function or clockwise from
the "OFF" position for winterization or cleaning.
Reverse direction to the "OFF" position to turn off the
water heater�
8
9
The on-demand water heater switch light
9
illuminates when the water heater is turned to
the ON setting.
NOTICE
LED
Rotary switch
O
Eco
Clean
SYSTEM MONITOR
The system monitor panel, located in the cabinet
above the coach entrance doorway, monitors the
following systems:
WATER PUMP SWITCH
1
This switch controls the power to the water pump.
The light above the switch illuminates when the
water pump is activated.
2
1
3 4
5
6
7
SWITCHES
3
-
7
Depress the following switches to monitor the level
of the system capacity used/available on the LED
display
2
:
• BATT
3
- Displays the coach battery power level
• FRESH
4
- Displays the fresh water holding
tank level
• GREY
5
- Displays the grey water holding tank
level
• BLACK
6
- Displays the black water holding
tank level
• LPG
7
- Displays the LP Gas tank level
Refer to the detailed operating instructions in the
Motorhome Information Kit
