UNITY MOTORHOME ELECTRICAL SYSTEM OPERATION
necessary to change some internal settings� Please
refer to the Inverter / Remote Control manual for
setting or contact the manufacturer. The Magnum
ME-MR controls the invert and charge features of
the inverter.
The invert feature needs to be manually
switched ON and OFF. However if the inverter
feature is turned ON and the battery disconnect
switch has been turned off, the inverter will
need to be powered up and switched ON
manually the next time it is turned on.
NOTICE
Please be aware that the inverters create
a standby current drain even when your
equipment is turned off. To ensure battery
life, turn the inverter function OFF when not
in use.
NOTICE
The inverter is not intended for appliances
that consume more than the specied inverter
wattage. Exceeding the specied wattage
could result in damage to the appliance or
the inverter. Extended use of the inverter-
powered receptacles will drain your batteries.
NOTICE
Before performing any service, insure the
inverter is completely disconnected from
power sources. Disconnect battery (12V DC)
and shore power (120V AC). Inverter should
only be services by a qualied technician.
CAUTION
Remove rings, metal watchbands and other
metal jewelry before working around a battery.
Use caution when using metal tools. If the tool
contacts the battery terminals or the metal
connected to them a short circuit could result.
CAUTION

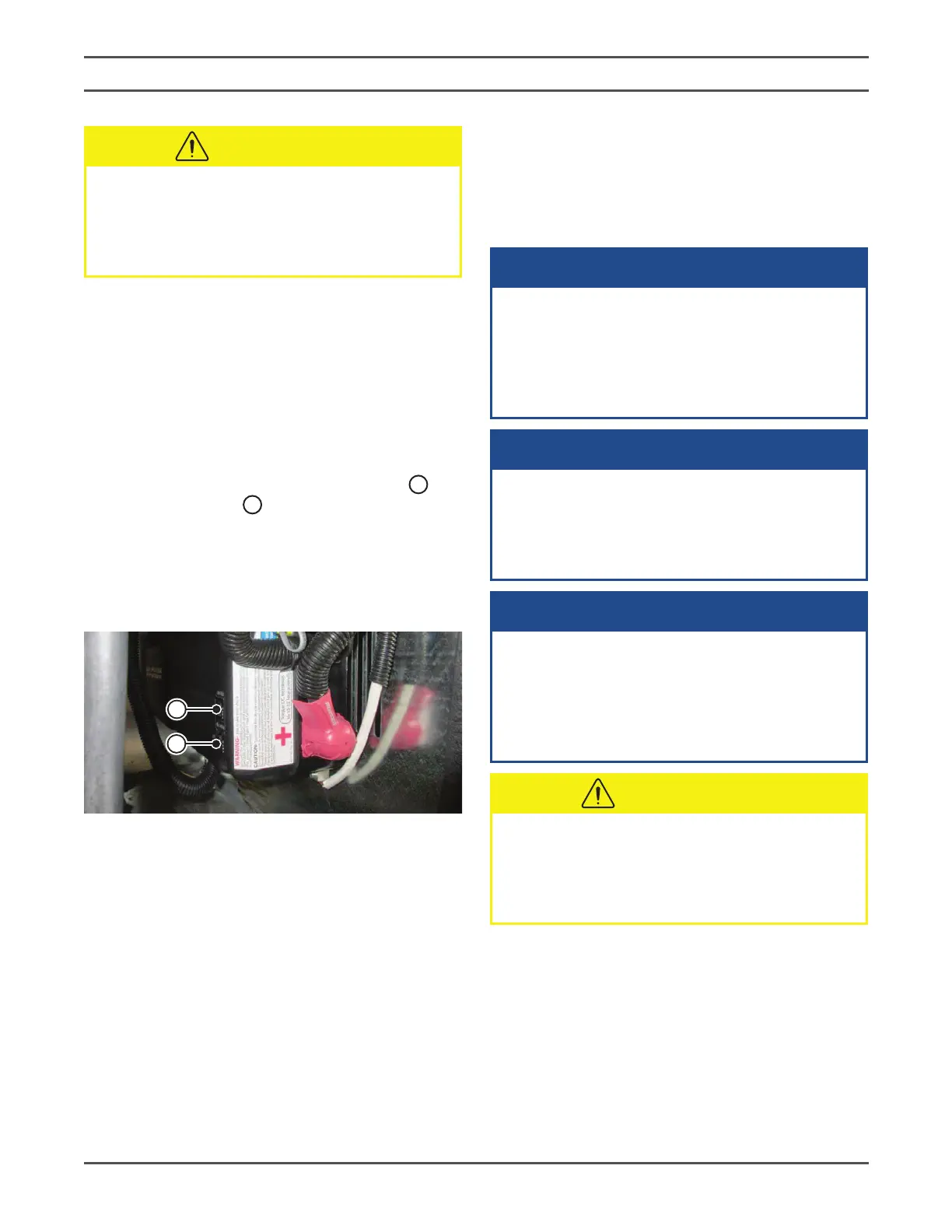

INVERTER
Triple E RV uses Magnum 1000W Pure Sine Wave
Inverter/Charges. The 1000W inverters are standard
on all units. Inverters change 12V DC power stored
in batteries into 120V AC power used in household
appliances. The 1000W inverter can supply 8.3A AC
at full capacity. It has a 15A output breaker
1
and
a 20A input breaker
2
. The 15A breaker powers
the bedroom, entertainment and galley receptacles.
When the motorhome is plugged into shore power,
the breaker panel supplies power to the inverter,
which switches that power through to the "inverter
loads�"
1
2
When shore power or generator power is absent,
the inverter can be switched on and used to supply
120 volt AC power to the loads mentioned above,
no other receptacles will have power. The 1000 watt
inverter has an internal 50 amp battery charger.
Once the inverter has accepted the AC input power,
Charge Mode will begin� It is not possible to turn off
this charge mode�
The Magnum Monitor instrument is a complex
computer control and monitor device, it is used on all
motorhomes. It is factory congured for the particular
inverter and battery installation of Triple E RV. If any
modications are made to the battery bank, it may be
