LELY Luna - Page 36

5.4101.8538.0 B
5-12 Installation

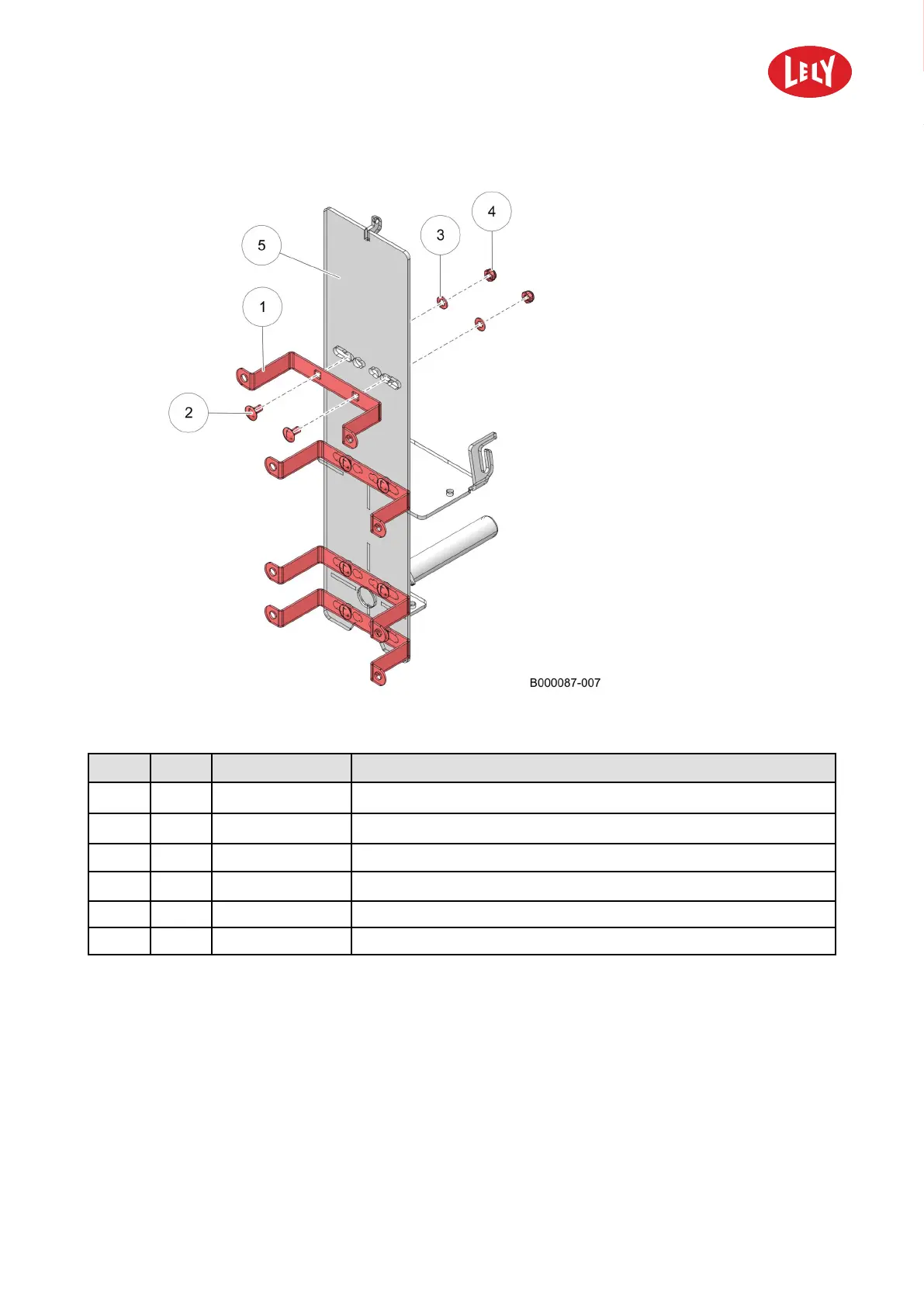

Figure 10. Install the bracket
Item
Qty.
Part no.
Technical data
1 4
5.4101.0286.0
Bracket (140 mm (5.52 in))
4
5.4101.0285.0
Bracket (190 mm (7.48 in))
2 8 9.1058.0047.3
Coach bolt M10x20 DIN603-8.8
3 8 9.1048.0007*1
Washer A10,5 DIN 125-St
4
8 9.1030.0004*2 Nut M10 DIN985-8
5 1
5.4101.0266Z0
Frame
