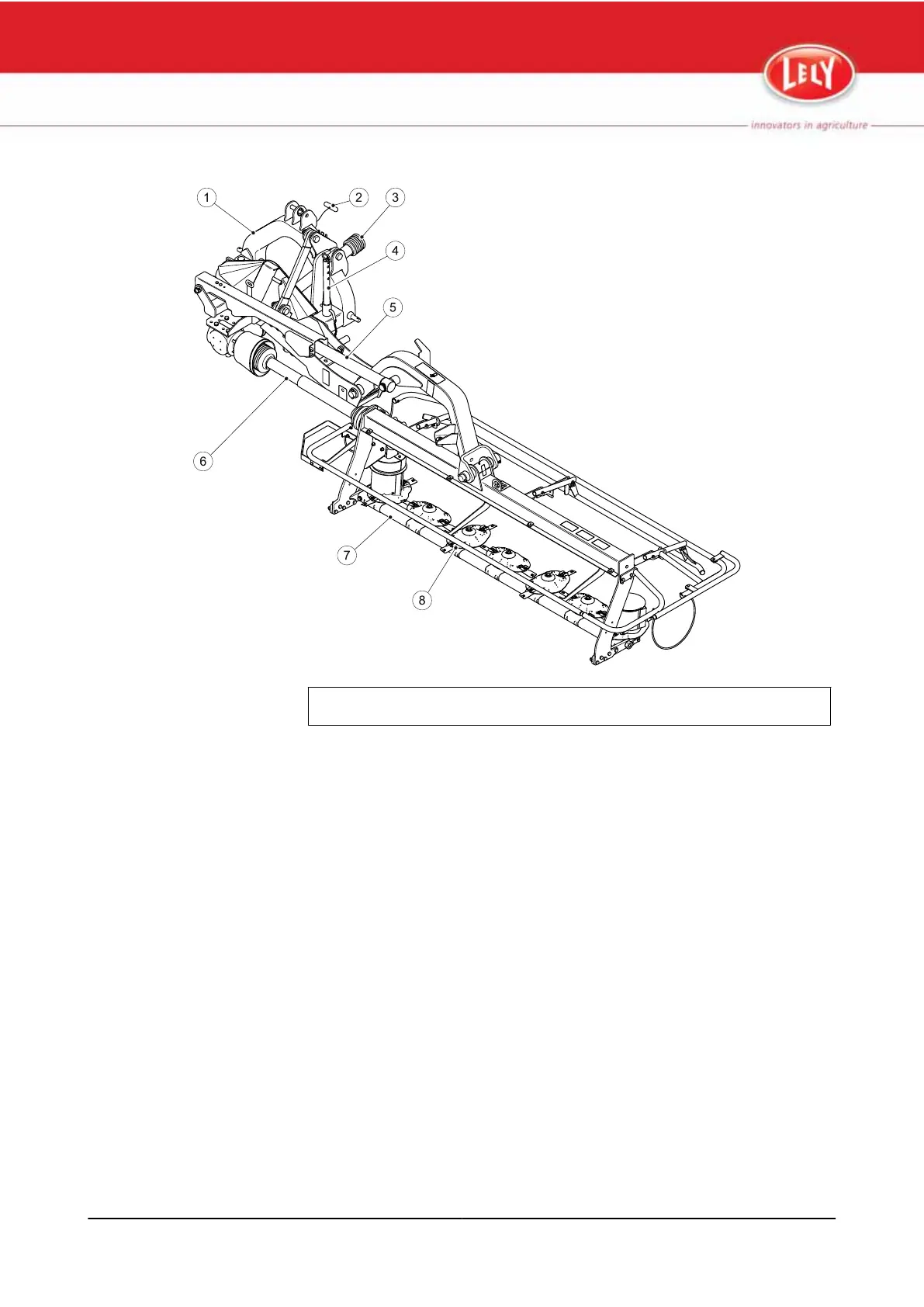

1. Headstock - 2. Operating cord - 3. Primary PTO-shaft - 4. Parking jack - 5. Hydraulic ram
- 6. Secondary PTO-shaft - 7. Cutter bar - 8. Mower disc
Figure 1. Overview of the Lely Splendimo 320 M
1.2 Cutter Bar
The cutter bar contains the mower units. The modular design of the cutter bar
enables quick and easy replacement of mower units and drive shafts if they
are damaged. The mower units are connected to each other by a rod.
The first mower unit is driven from the top. A spring-steel shaft then transfers
the drive from the first mower unit to the other mower units. All mower units
are directly driven by this shaft.
The mower units turn in pairs, either clockwise or counterclockwise.
The mower knives are connected to the mower units by the Splendimo Clip
quick-release system. This enables easy replacement of mower knives.
1.3 Hydraulic System
The hydraulic system raises and lowers the cutter bar.
When the hydraulic system is set to the floating position the cutter bar can
closely follow ground contours.
1-2 Introduction
M-H026.1004EN
