10

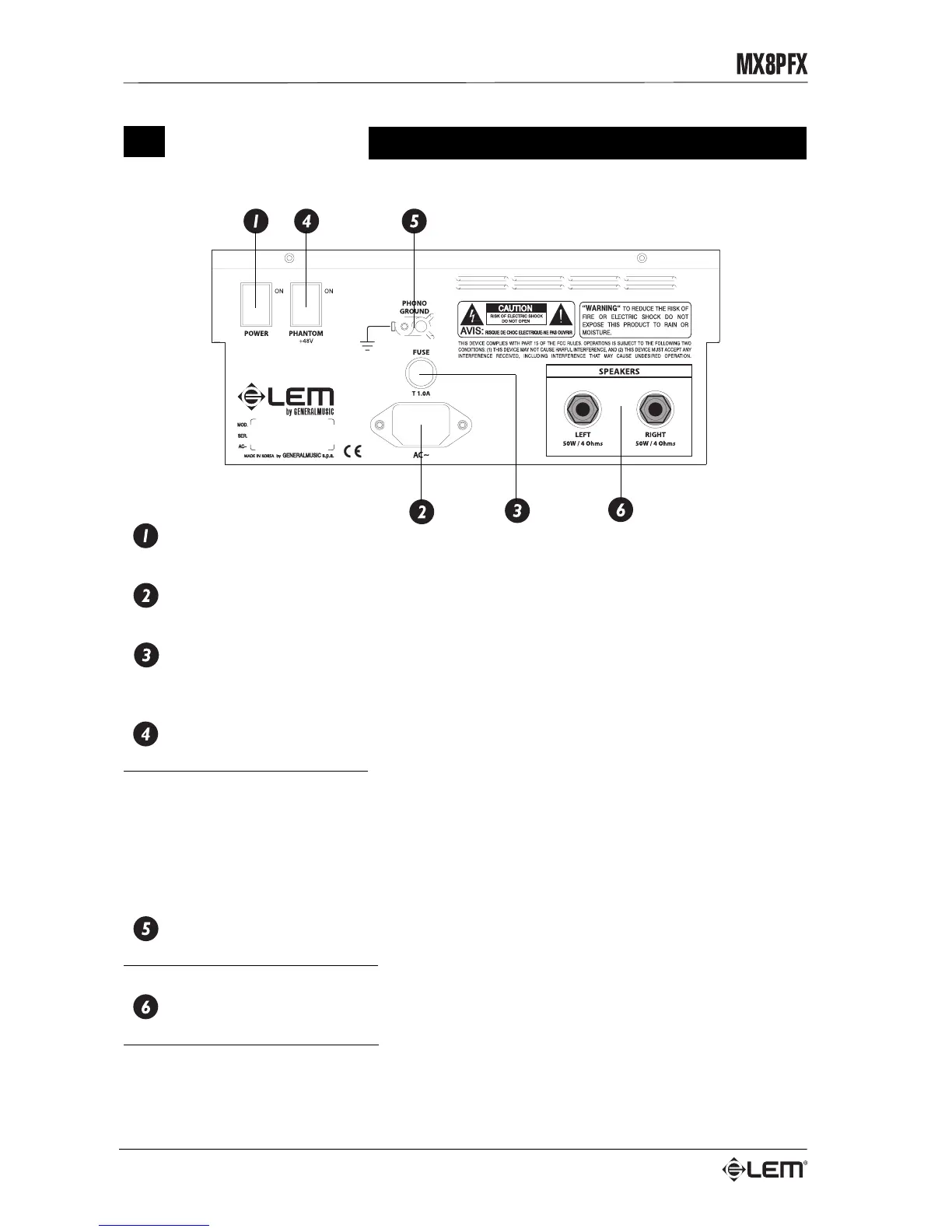

Rear panel
Mixer on/off switch.
Power supply socket.
Main fuse holder
In the event of breaking, always replace the fuse with same type and rating.
+48V
+48V Phantom power supply button: this button switches on the +48V power supply for all the MIC inputs
(XLR-F connector) of the MONO input channels and allows condenser microphones to be used on them.
When the PHANTOM power supply is switched on make certain that cables with BALANCED XLR
connectors are ALWAYS used to connect the microphones: this precaution is extremely important for
avoiding damage in the event of both condenser and normal (dynamic) microphones being used
simultaneously. Switch on the phantom power supply only after having connected the condenser
microphone to the input and only with the channel fader closed to avoid output signal peaks.
Phono ground
Ground connector for the turntables: connect here the ground cable of the turntable.
Powered outputs
MIX LEFT & RIGHT powered outputs: connect these outputs to the loudspeaker enclosures.
Be careful that the overall impedance of the speakers connected is not below 4 Ohms, because in this
case the amplifier could protect himself. Only use “power” cables (speaker enclosure cables), not “signal”
cables (screened cables used for instruments and microphones).
Rear panel
