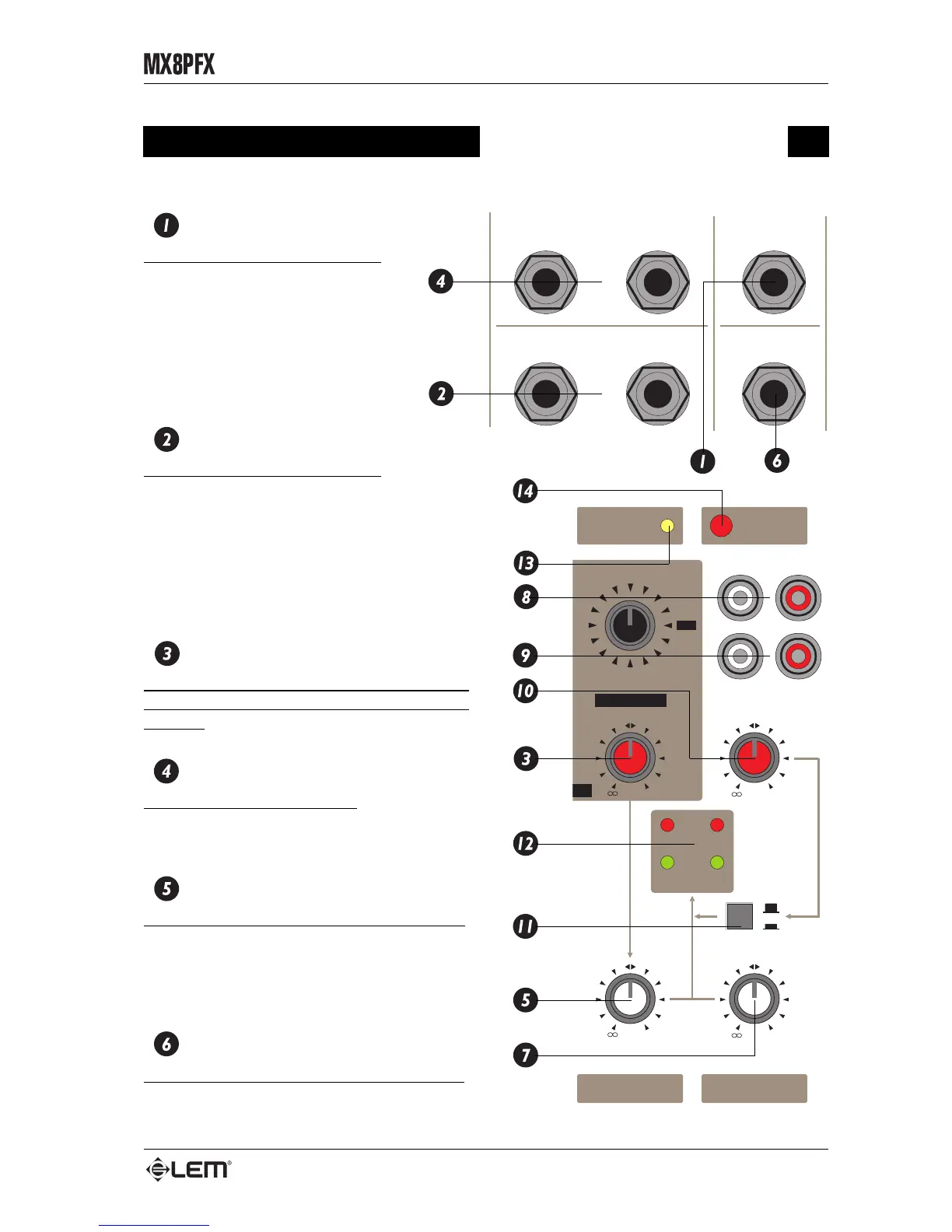

MASTER section
MASTER section
AUX OUT
Unbalanced JACK connectors:
these connectors feed out the sum of
the signals arriving from the relative
DSP / AUX sends of the input
channels. The DSP / AUX send is
POST-FADER and is therefore
mainly intended for use with
EFFECTS.
AUX IN L&R
Unbalanced JACK connectors:
these are the connectors of the
auxiliary stereo input available on the
MX8P FX. This input, whose signal is sent directly
to MIX L&R, can be used for the return signal from
outboard effects or for connecting any instrument
or equipment with a line output (e.g. keyboards,
cassette recorder or CD turntable).
DSP / AUX RETURN
Pot for controlling the level of the auxiliary
stereo input and of the BUILT-IN DSP (see DSP
section).
MIX L&R OUT
Balanced JACK connectors: these are the
connectors of the mixer’s main line outputs, from
which the program from MIX L&R is fed out.
MIX
Pot for STEREO control of the general volume:
controls the level of the signal arriving from the
input channel sent to the two main MIX L&R
outputs, to the TAPE OUT output and to the inputs
of the built-in amplifier.
PHONES OUT
STEREO JACK headphone output connector:
only stereo headphones with a minimum
MIX
TAPE
SIGNAL
PEAK
RL
TAPE IN
LEVEL
MIX
MON
AMP
PHONES/
+20
+20
MAX
MAX
TAPE OUT
TAPE IN
L
R
POWER
ON
PHANTOM
+48V
D
SP
DSP RETURN
AUX RETURN
MUTE
V
OC2
O
C1
P
ERC
PLATE
S/ROOM
DEL2
DEL1
VOC3
CHURCH
DEL5
DEL4
DEL3
M/HALL
L/HALL
L/ROOM
MIX OUT
AUX
RETURN
L
L/MONO
R
R
HEADPHONES
AUX OUT
