LEM MX8PFX - STEREO input channel; STEREO INPUT and LINE;PHONO Selector; GAIN Control; DSP; AUX Send and BAL Control

6
POST
AUX
PHONO
LINE
LEFT
RIGHT
LEFT
STEREO
LINE
10
10
0
0
RIGHT
LEVEL
BAL
-5dB -55dB
GAIN
7/8

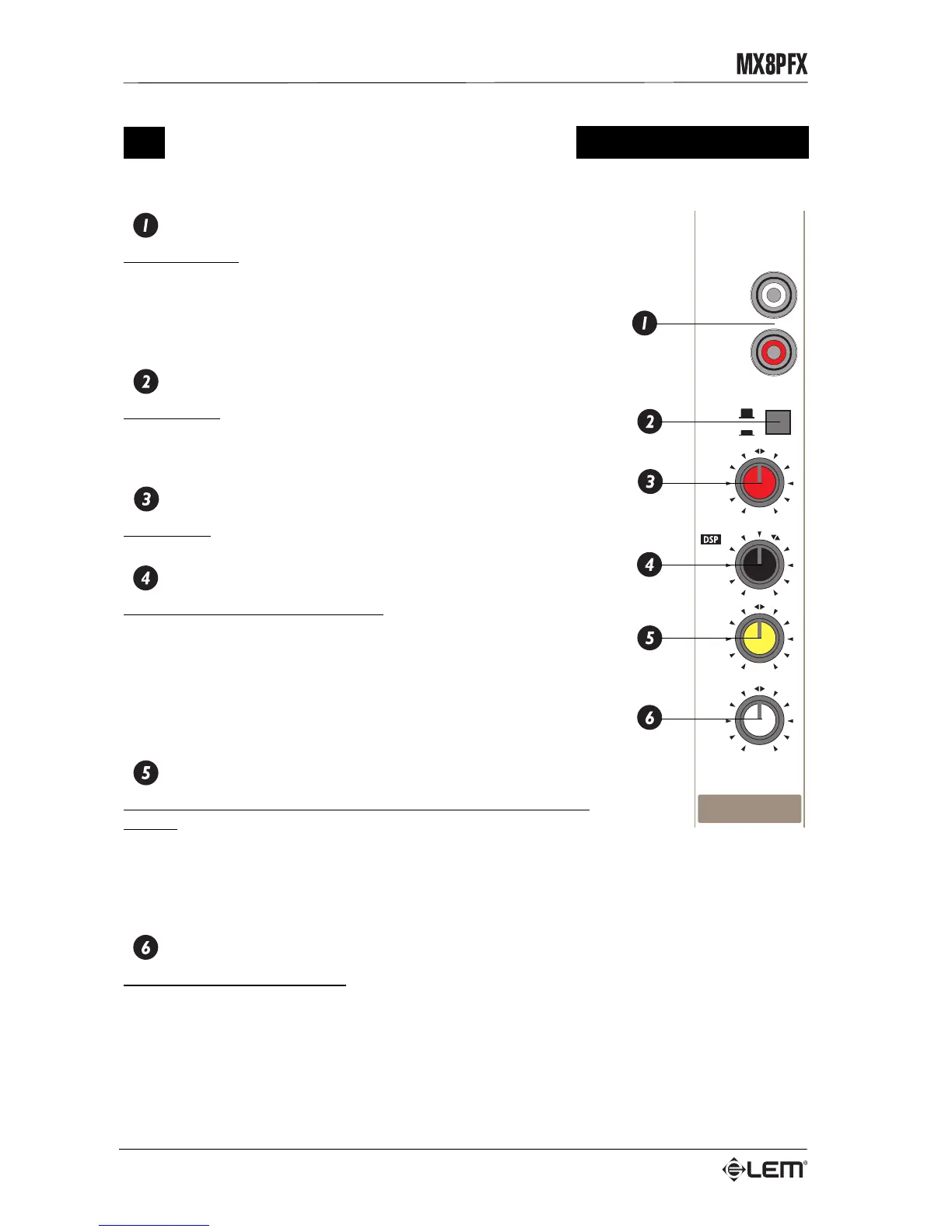

STEREO input channel
STEREO input channel
STEREO INPUT
RCA connector: receives the STEREO LINE input signal on the
channel.
According to the position of the LINE/PHONO SELECTOR, this inputs
can accept line signal coming from high-level output devices (LINE) or
signals with RIIA EQ coming from turntables (PHONO).
LINE/PHONO
Input selector: allows to select the kind of input signal:
• button UP = line signal;
• button DOWN = phono signal.
GAIN
Gain control: regulates the amplification of external signals.
DSP / AUX
Control for the DSP / AUX send level.
Sends the signal both to the internal DSP and to the AUX output,
allowing also the use of an external effect (if needed).
The DSP / AUX send is POST-FADER: this means than the signal is
taken after the control of the channel FADER and therefore its level is
effected by the fader’s setting. For this reason, the DSP / AUX send is
suitable for the use with effect.
BAL
Centre-dented control of the balance of the signal on the main
outputs.
The BAL control has a balancing effect on the levels of the two LEFT & RIGHT parts of the STEREO
signal and works as follows:
• turning to the LEFT lowers the RIGHT signal level on MIX RIGHT;
• turning to the RIGHT lowers the LEFT signal on MIX LEFT.
LEVEL
Pot for controlling channel level: regulates the level of each channel sent to the MIX L&R main outputs.
