LEM MX8PFX - DSP Effects

9
DSP
DSP
The MX8P FX is fitted with a built-in DSP, including 15
high-quality REVERB and STEREO DELAY effects
able to reproduce accurately different kinds of ambients
and to enrich not only the voice, but also any kind of
instrument.

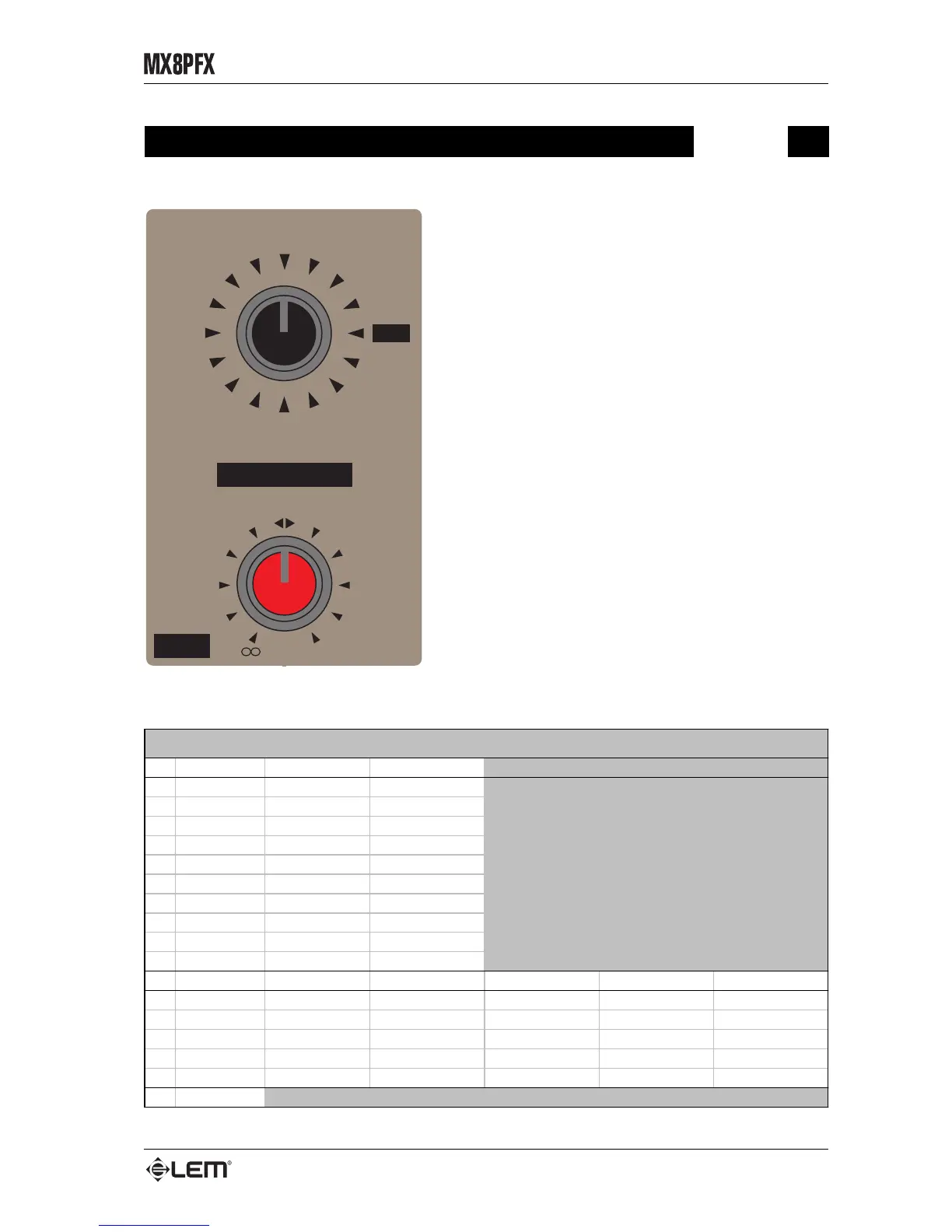

The 15 PRESETS can be selected by means of a
convenient 16-position encoder. In the last position
there’s a MUTE PRESET that can be used to cut out
the effect on all the channels.
The signal is sent to the effect through the channel DSP
/ AUX send. The effect level sent to the MIX outputs is
controlled by the DSP RETURN knob.
NOTE: if you need to use an external effect connected to the AUX
OUTPUT and to the AUX RETURN INPUTS, the internal DSP can
be switched off selecting the MUTE PRESET. The internal DSP
and the external effect can be also used together, but this is not
an advisable condition.
The following table include the list and the main
parameters of the 15 PRESETS available in the internal
DSP.
+20
DSP
DSP RETURN
AUX RETURN
MUTE
VOC2
VOC1
PERC
PLATE
S/ROOM
DEL2
DEL1
VOC3
CHURCH
DEL5
DEL4
DEL3
M/HALL
L/HALL
L/ROOM
No. PRESET Effect REV TIME (s)
1 CATHEDRAL HALL REVERB 5.0
2 LARGE HALL HALL REVERB 3.0
3 MID HALL HALL REVERB 1.7
4LARGE ROOMROOM REVERB 1.5
5 SMALL ROOM ROOM REVERB 0.8
6PLATE PLATE REVERB 1.5
7PERCUSSIONPLATE REVERB 1.2
8VOCAL 1 PLATE REVERB 3.0
9VOCAL 2 PLATE REVERB 1.5
10 VOCAL 3 PLATE REVERB 0.9
No. PRESET Effect LEFT DELAY (ms) RIGHT DELAY (ms) LEFT FB (%) RIGHT FB (%)
11 DELAY 1 STEREO DELAY 100 200 40 20
12 DELAY 2 STEREO DELAY 200 400 30 15
13 DELAY 3 STEREO DELAY 300 600 30 15
14 DELAY 4 STEREO DELAY 200 210 30 30
15 DELAY 5 STEREO DELAY 300 310 20 20
16 MUTE
PRESET LIST
