11
Connection cables
Connection cables
UNBALANCED JACK connector
BALANCED JACK connector
BALANCED XLR-M connector
JACK POWER cable

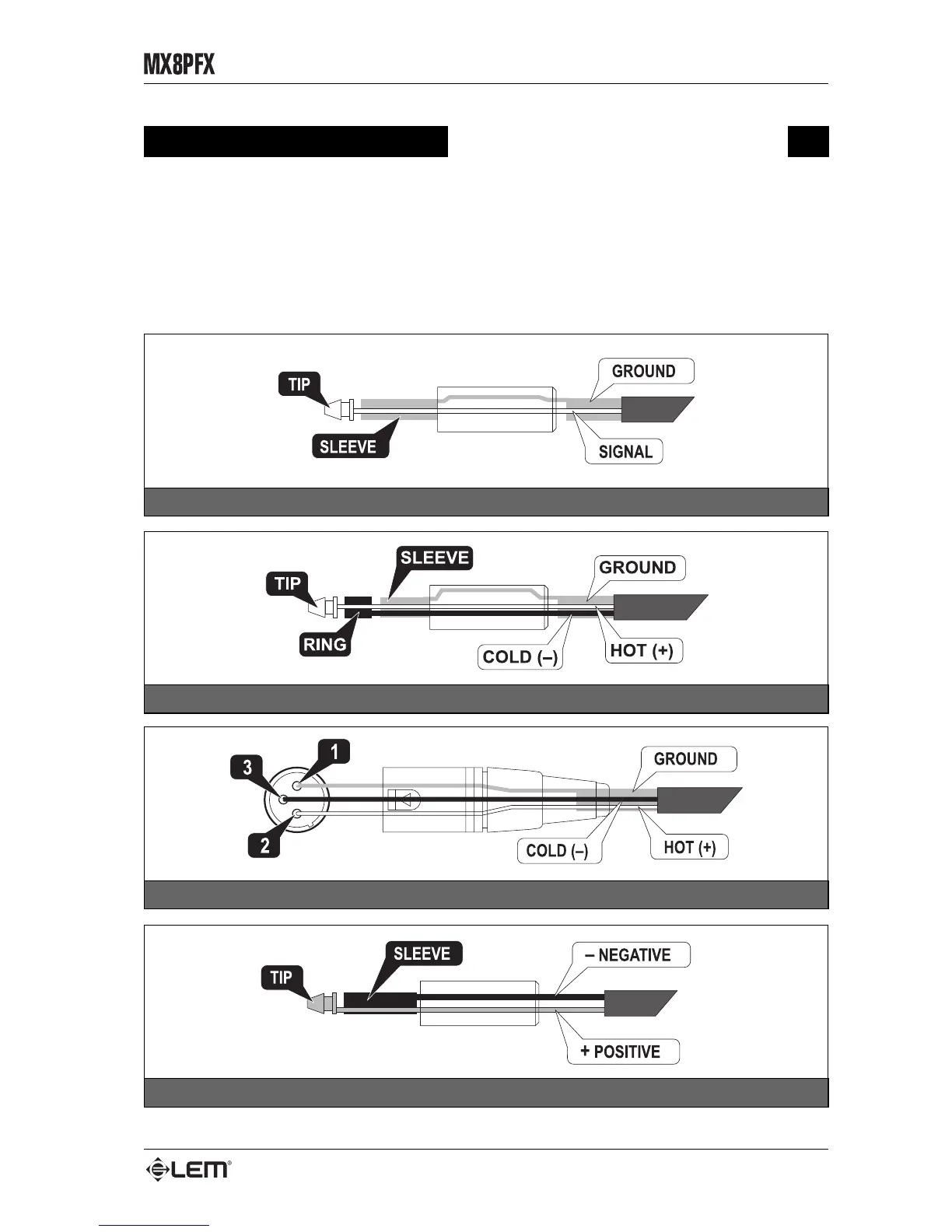

The following are wiring diagrams for the connectors used with MX8P FX. Take care of the connector cables,
always holding them by the connectors and avoiding pulling the wire and avoid knots and twists when coiling them:
this gives the advantage of increasing their life and reliability, which is always to your advantage. Periodically check
that your cables are in good condition and are correctly wired and that all their contacts are perfect: a great number
of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables.
