Operation
53
11.8.4 Lateral position
Loosen the nut (3).
Swivel the round stalk (4) until the
skimmer (1) extends approx. 2 – 3 cm
beyond the side of the plough body shin.
Tighten the nut (3), see «Tightening tor-
ques, page 65». Check the angle.
11.8.5 Forwards or backwards
Move the skim stalk (4) forwards or back-
wards to optimise the skimmer (1) position:
Backwards => more space between the
skimmer and the plough body in front of it.
Forwards => more space between the
skimmer and its corresponding plough
body..
Loosen the nut (3) and move the round
stalk (4) forwards or backwards.

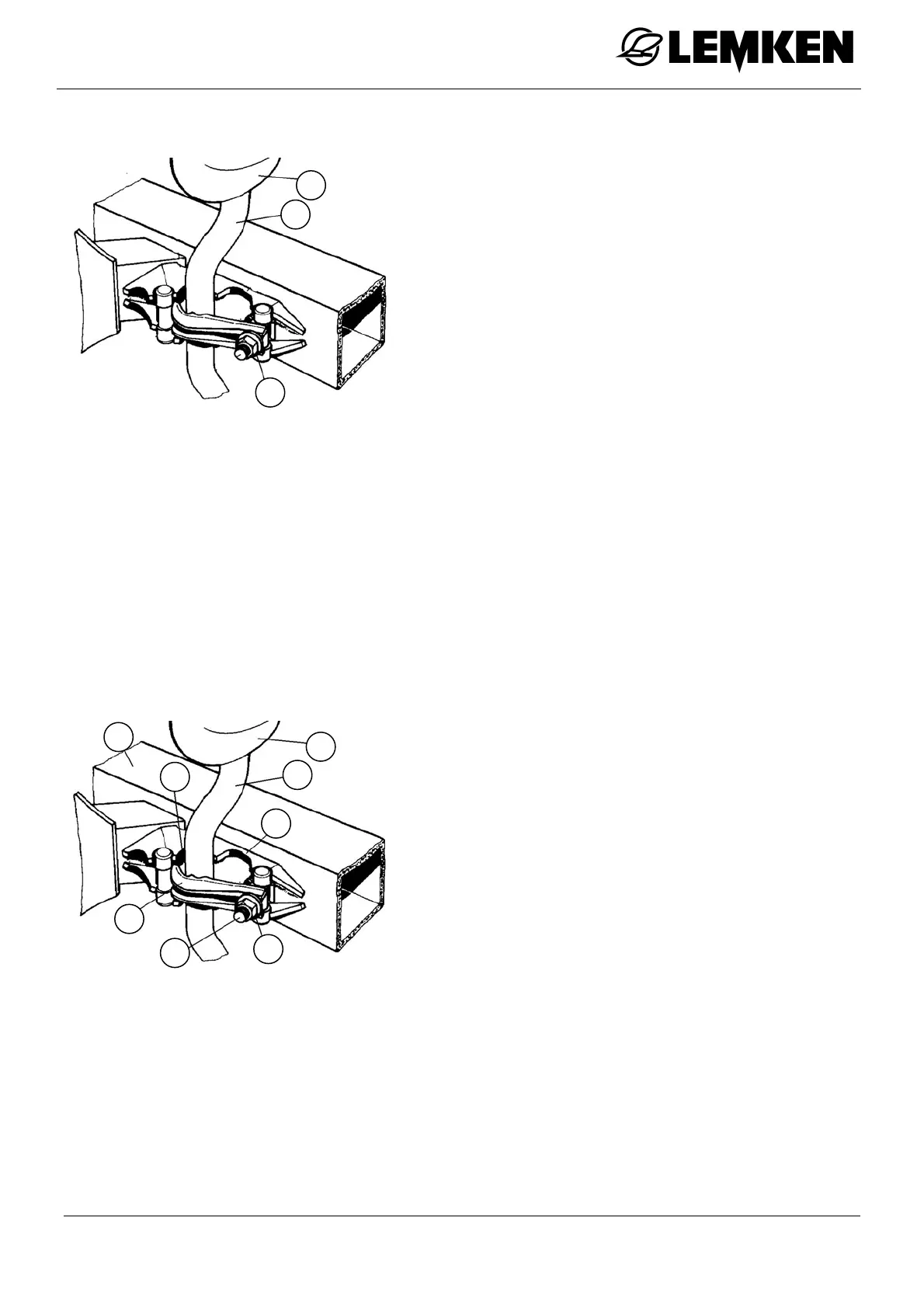

The plough frame (7) has two fixing
points (A) and (B).
After moving the round stalk (4), fit the
bolt (5) and clamping lever (6) in the re-
verse positions.
Tighten the nut (3), see «Tightening tor-
ques, page 65».
3
1
4
3
1
5
6
4
7
A
B
