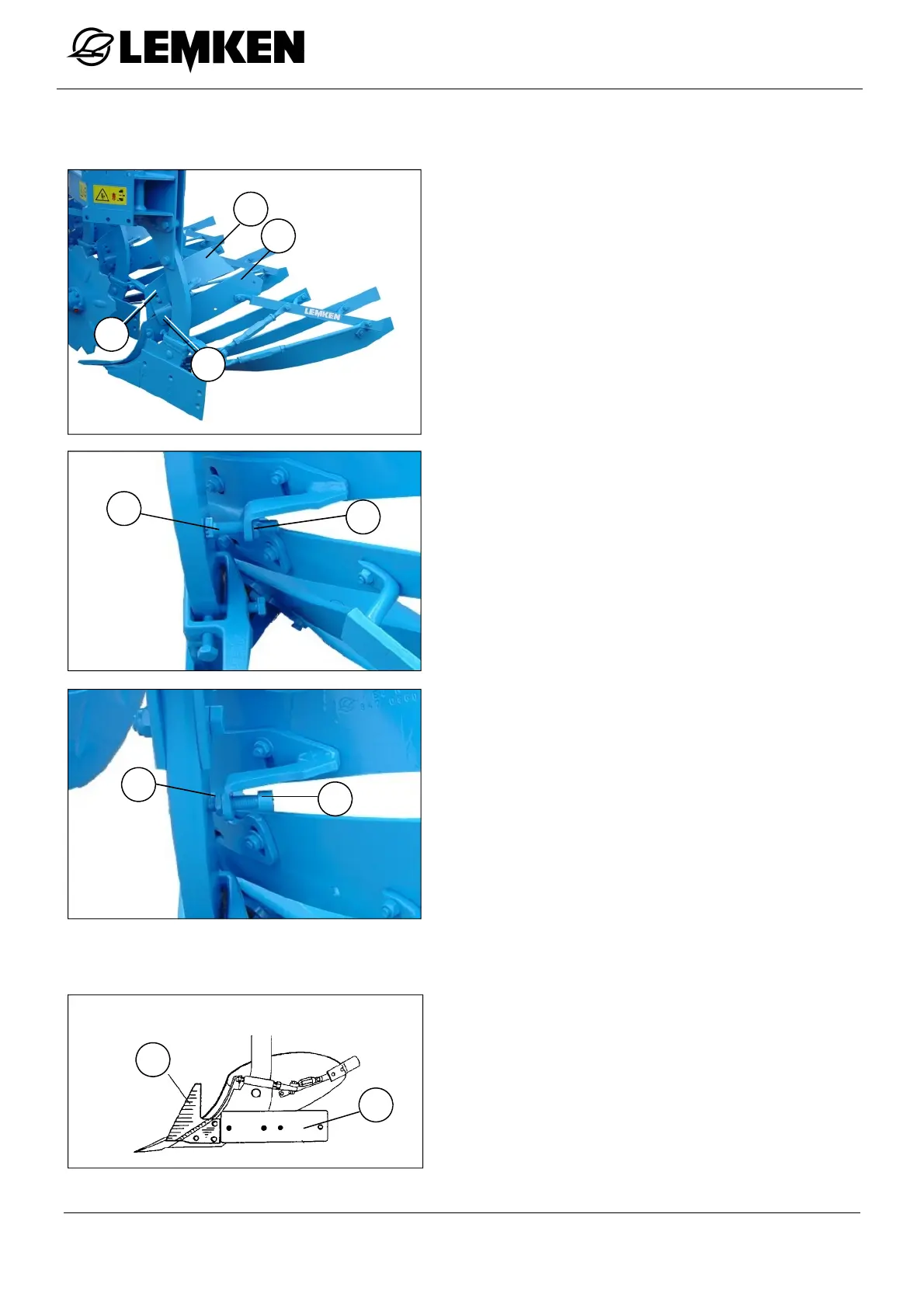

11.8.6 Trashboard
The bracket has slots (6) which allow
universal adjustment.
Bolt the trashboard (1) with bracket (2)
onto the mouldboard (3).
The support bolt (4) supports the trash-
board against the leg.
Secure the support bolt (4) by tightening
the lock nut (5).
The lock nut (5) must always be securely
tightened while the plough is operating.
11.9 Sword Coulter
Fit the sword coulter (1) in front of the
landslide (2) of the plough body.
2
3
6
1
4
5
4
5
2
1
