Operation
56

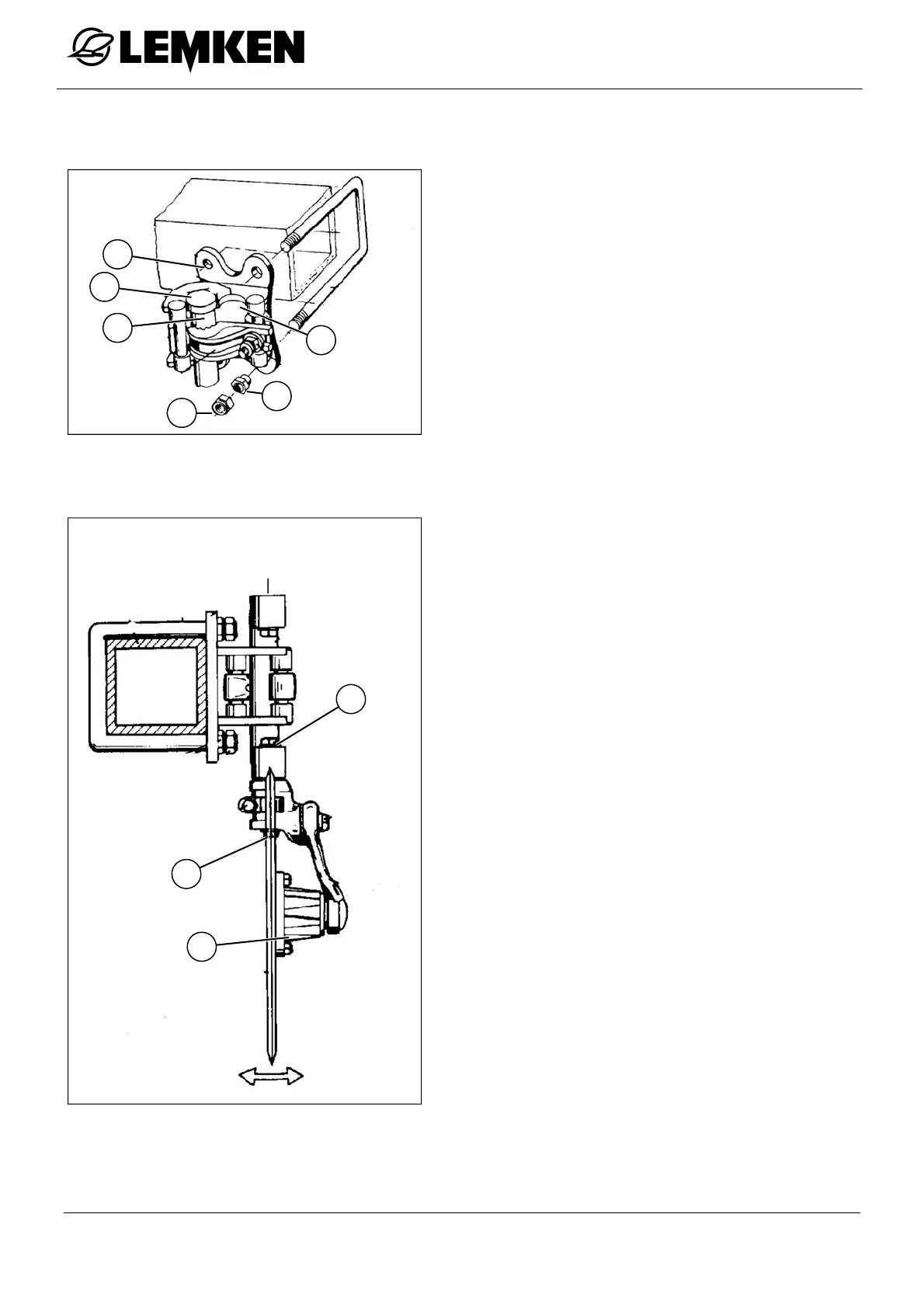

11.10.3 Moving the disc coulter forwards or backwards
Loosen the nuts (4).
Loosen the eccentric sleeves (5).
Move the bracket (6) forwards or back-
wards.
The round stalk (7) can also be moved in-
side the bracket (6).
Two fixing options (C) and (D) are provid-
ed.
11.10.4 Disc coulter inclination
The inclination of the disc coulter (8) can
be adjusted as follows:
Loosen the bolt (9).
Adjust the eccentric pin (10).
It may be necessary to hit the eccentric
pin with a hammer to loosen it.
After each adjustment, tighten the bolts
and nuts that have been loosened, see
«Tightening torques, page 65».
D
C
7
6
5
4
10
9
8
