3.0 AUTO GLIDE ELECTRICAL INSTALLATION
TM
3.6 Auto Glide Second Station Kit Installation
Lenco Marine offers 2nd Station Auto Glide kits ranging in lengths of 10' to 50'. These kits allow you to add a 2nd Key Pad to
your Auto Glide system and control the tabs automatically or manually from either station. Each Dual Station Kit includes a
2nd Station Key Pad, CANBUS Splitter Connector Hub and extension harness ranging from 10' to 50'.
Any 2nd Station Auto Glide kit can be used on either a Single or a Dual Actuator Trim Tab System. The following illustration
outlines how to connect an Auto Glide 2nd Station Kit:
11
TM

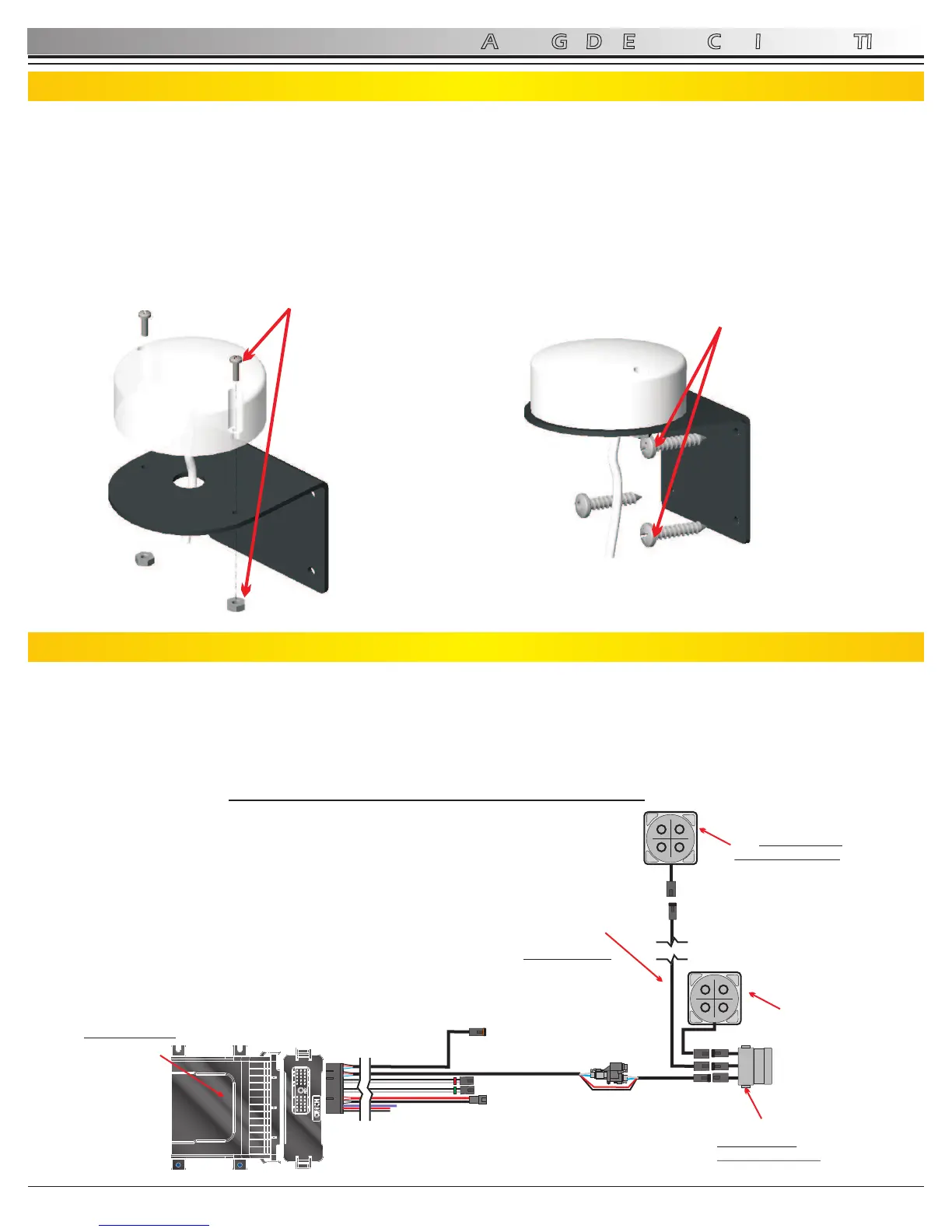

3.5 Optional Auto Glide GPS Mounting Bracket
If you do not have a flat surface to mount the GPS antenna, you can use the Lenco 70567-001 GPS Mounting Bracket Kit to
mount the Lowrance LGC-4000 GPS Antenna to a vertical surface. You still to need to make sure the antenna module has a
clear view of the sky or only has fiberglass above it.
Attach the GPS module to the mounting bracket using the two (2) #6-32 stainless steel bolts and nylon nuts that are included
in the mounting bracket kit. (See Figure 3.5.1)
Then attach the mounting bracket to a vertical surface using the four (4) ½” screws that are included in the mounting kit. (See
Figure 3.5.2)
Figure 3.5.1 Figure 3.5.2
ATTACH THE GPS MODULE TO THE MOUNTING BRACKET
USING THE TWO (2) #6-32 SS BOLTS AN THE NYLON NUTS
ATTACH THE MOUNTING BRACKET TO THE VERTICAL
SURFACE USING THE FOUR (4) ½”SS SCREWS INCLUDED
WITH THE MOUNTING BRACKET KIT.
2ND STATION KEY
PAD INCLUDED IN
2ND STATION KIT.
CANBUS SPLITTER
INCLUDED IN
2ND STATION KIT
SELECT 2ND STATION KIT
BASED ON LENGTH OF
EXTENSION HARNESS
BETWEEN 1ST AND 2ND
STATIONS (10 FT - 50 FT)
SEE PRICE LIST FOR
DIFFERENT KITS AVAILABLE.
1
2
DTP
AUTO GLIDE
CONTROL BOX
Sample
2ND STATION INSTALLATION EXAMPLE
NOTE: 2ND STATION
KEY PAD IS DIFFERENT
FROM MAIN KEY PAD
MAIN KEY PAD
AUTO GLIDE
Rev 03-10-11
