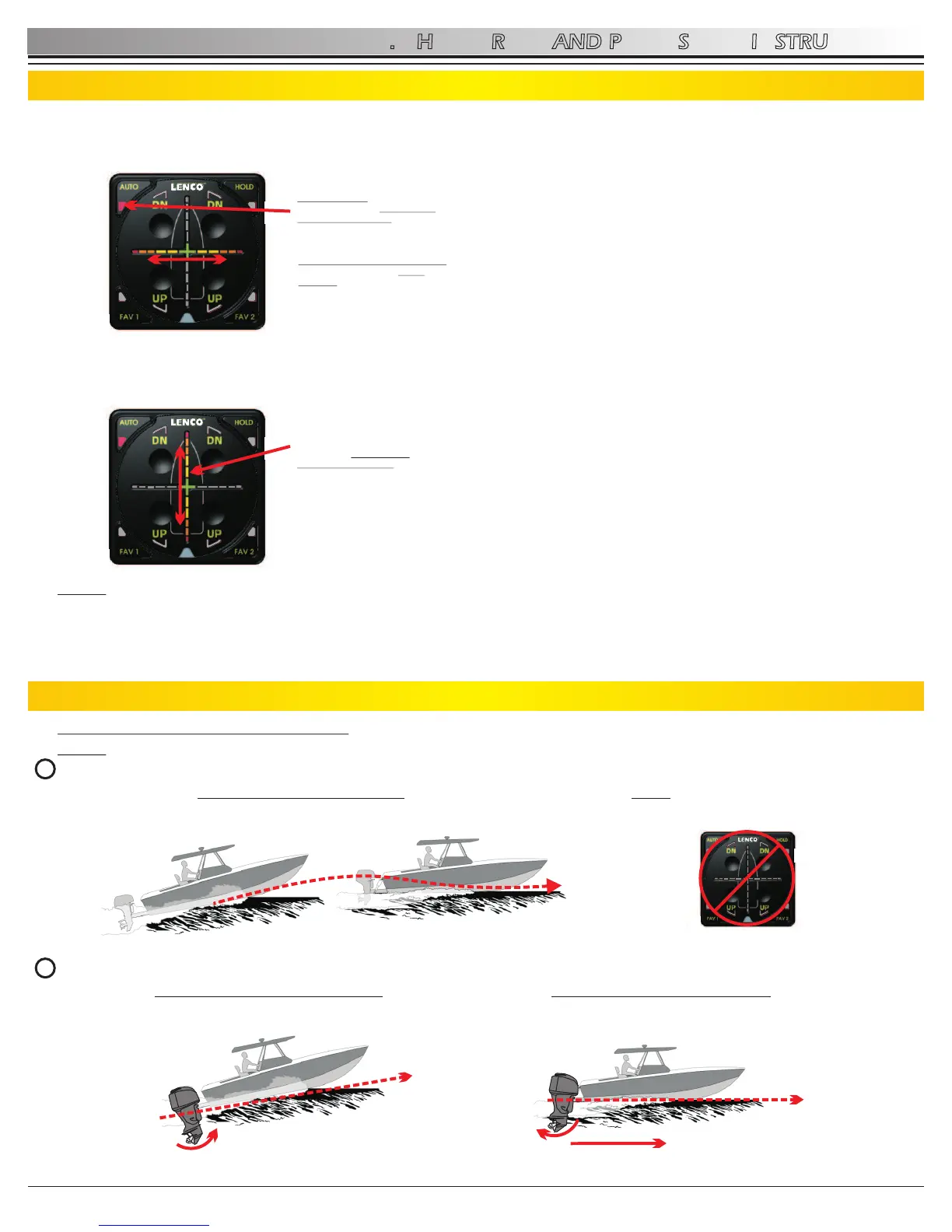

5.0 HOME ROLL AND PITCH SETUP INSTRUCTIONS
17
AUTO GLIDE
5.2 Home Roll Setup (Continued)
When you determine that the boat is level from side to side, press and release the “AUTO” button one time. The Auto Glide
will store the boat’s ROLL POSITION as the DEFAULT HOME ROLL position at the exact moment the Auto button is
pushed.
DN
DN
A
U
T
O
UP UP
F
H
F
A
O
A
V
L
V
1
D
2
TM
THE ROLL POSITION OF THE
BOAT WILL BE STORED AS THE
DEFAULT HOME ROLL POSITION
AT THE MOMENT THE AUTO
BUTTON IS PUSHED.
PRESS AND RELEASE THE
AUTO BUTTON WHILE THE
AUTO GLIDE IS IN HOME ROLL
CALIBRATION MODE.
As soon as you release the “AUTO” button on HOME ROLL CALIBRATION MODE, the horizontal crosshair LEDs will stop
scrolling and the vertical crosshair LEDs will begin to scroll up and down to indicate that the Auto Glide is in HOME PITCH
CALIBRATION MODE.
DN
DN
A
U
T
O
UP UP
F
H
F
A
O
A
V
L
V
1
D
2
TM
THE VERTICAL LEDS ON THE
CROSSHAIR SCROLL UP AND
DOWN TO INDICATE THE AUTO
GLIDE IS IN HOME PITCH
CALIBRATION MODE.
NOTE: DO NOT TOUCH ANY OF THE FOUR (4) UP/DN BUTTONS ON THE KEY PAD WHILE THE AUTO GLIDE IS IN
HOME PITCH CALIBRATION MODE. If you touch the UP/DN buttons before setting the HOME PITCH DEFAULT
POSITION, the Auto Glide will convert to LIMP HOME MODE (manual Trim Tab control only). Once the Auto Glide is in
LIMP HOME MODE, you will have to shut the boat engine(s) off and back on again before the Auto Glide will revert back to
HOME PITCH CALIBRATION MODE.
SET HOME PITCH DEFAULT POSITION:
NOTE: Water conditions should be calm as possible during HOME PITCH CALIBRATION
Get the boat on plane without using the trim tabs. The tabs will be fully retracted.
NOTE: DO NOT TOUCH ANY OF THE
UP/DN BUTTONS ON THE KEY PAD
WHILE IN HOME PITCH CALIBRATION MODE, GET THE BOAT
ON PLANE WITHOUT USING YOUR TRIM TABS.
Once the boat is on plane, ensure the engine(s) are trimmed to match running surface of the boat.
HOLE SHOT - ENGINE TRIM POSITION
TRIM MOTOR(S) UNDER THE BOAT
TO ASSIST WITH HOLE SHOT
ON PLANE - ENGINE TRIM POSITION
TRIM MOTOR(S) ANGLE SO BOW IS HIGHER THAN
NORMAL, BUT NOT PORPOISING (BOW HOPPING)
ENGINE TRIM
MATCHES BOAT
RUNNING SURFACE
ENGINE TRIMMED
UNDER BOAT TO
AIDE HOLE SHOT
5.3 Home Pitch Setup
1
Rev 03-10-11
