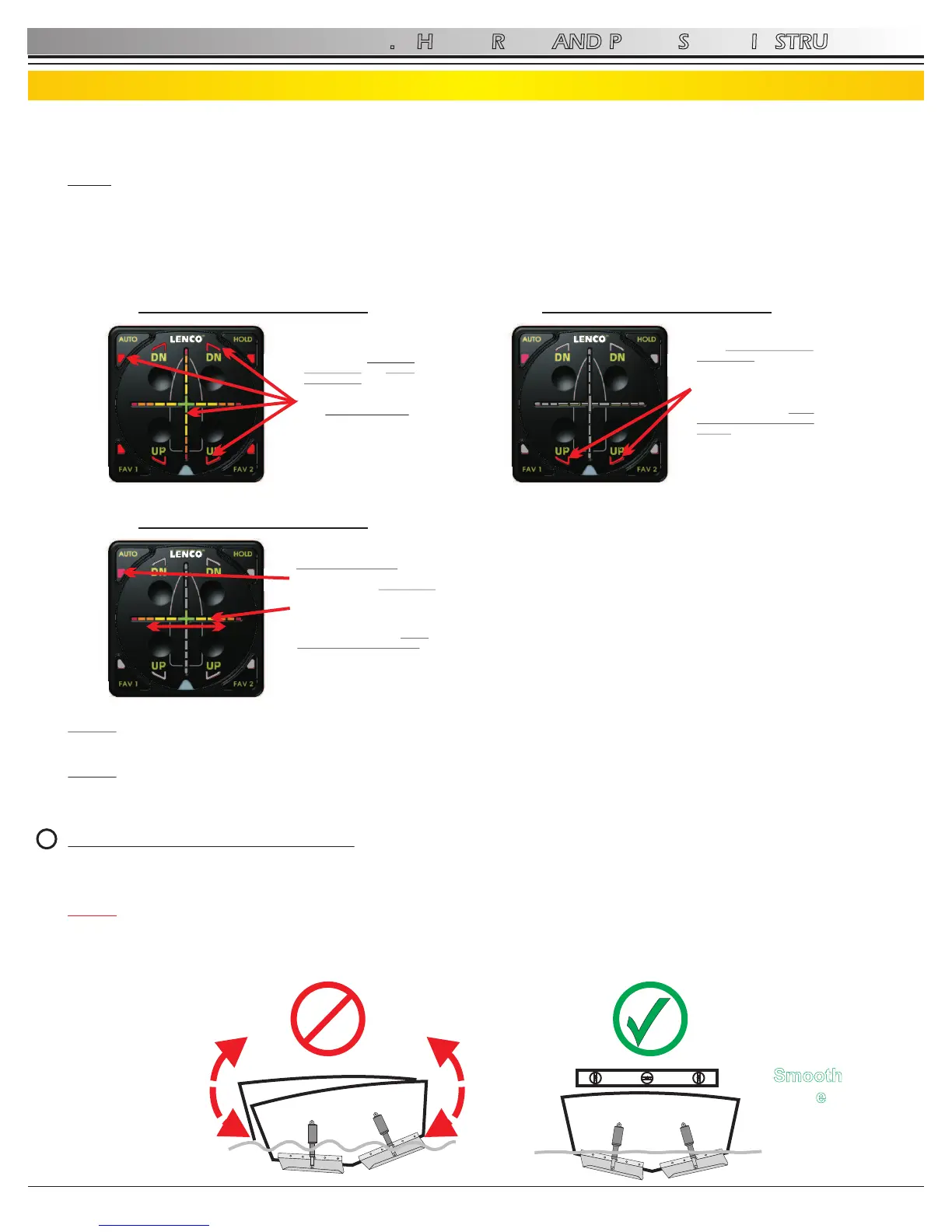

5.0 HOME ROLL AND PITCH SETUP INSTRUCTIONS
16
AUTO GLIDE
5.2 Home Roll Setup (Continued)
DN
DN
A
U
T
O
UP
UP
F
H
F
A
O
A
V
L
V
1
D
2
TM
BOTH UP ACTUATOR LED
INDICATORS FLASH AS
THE AUTO GLIDE RETRACTS
THE TRIM TABS ACTUATORS
TO ENSURE THE TRIM TABS
ARE FULLY RETRACTED
BEFORE INITIATING ROLL
AND PITCH CALIBRATION
MODES.
DN
DN
A
U
T
O
UP UP
F
H
F
A
O
A
V
L
V
1
D
2
TM
HORIZONTAL CROSSHAIR
LEDS WILL SCROLL FROM
SIDE TO SIDE TO INDICATE
THE AUTO GLIDE IS IN HOME
ROLL CALIBRATION MODE.
AUTO LED INDICATOR WILL
ILLUMINATE TO INDICATE THE
AUTO GLIDE IS IN AUTO MODE.
DN
DN
AA
UU
TT
OO
UP UP
F
H
F
A
O
A
V
L
V
1
D
2
TM
ALL OUTSIDE AUTO LED
INDICATORS AND UP/DN
INDICATORS WILL FLASH
BRIEFLY.
THE CROSSHAIR LEDS
WILL BRIEFLY CONVERGE
TO THE CENTER.
ST
1 SET OF LED FLASHES
ND
2 SET OF LED FLASHES
RD
3 SET OF LED FLASHES
Once the Auto Glide sees that the boat's engine(s) are running at 400 RPM or greater, the Auto Glide will check to make
sure it is receiving the required GPS data, flash a series of LED indicators on the Key Pad and immediately default to
HOME ROLL CALIBRATION MODE.
NOTE: You can verify that the engine(s) are broadcasting 400 RPM or greater over the engine CANBUS by inspecting the
tachometer value on the boat's instrumentation. If the boat's instrumentation shows a tachometer value of 400 RPM or
greater, Auto Glide should also be receiving this data and should default to HOME ROLL CALIBRATION MODE.
Here are the sequences of LED flashes that occur as the engine(s) are turned “ON” and the Auto Glide initiates SETUP
MODE.
NOTE: If GPS data is not available at the time the engine(s) are started, the Auto Glide will not default to setup mode.
Without the required engine and GPS data, the Auto Glide can not initiate HOME ROLL or PITCH calibration modes.
NOTE: If the Auto Glide does not default to HOME ROLL CALIBRATION MODE when the engine(s) are started and the
LEDs on the key pad flash for more than 10 seconds, please refer to the ‘System Failure Warning Messages’ contained in
Owner’s Manual B on page 33.
SET HOME ROLL DEFAULT POSITION: Once the Auto Glide is in HOME ROLL CALIBRATION MODE, you can set the
HOME ROLL DEFAULT POSITION. The Auto Glide will use this HOME ROLL POSITION to level the boat automatically
from port to starboard, while on plane.
NOTE: Setting an accurate HOME ROLL position is very important to the performance of the Auto Glide. Lenco Marine
recommends setting the HOME ROLL DEFAULT position in smooth water conditions. If the boat is rocking back and forth
when the HOME ROLL DEFAULT position is calibrated, the HOME ROLL position may be slightly skewed to port or
starboard.
2
Rough
Water
Smooth
Water
Rev 03-10-11
