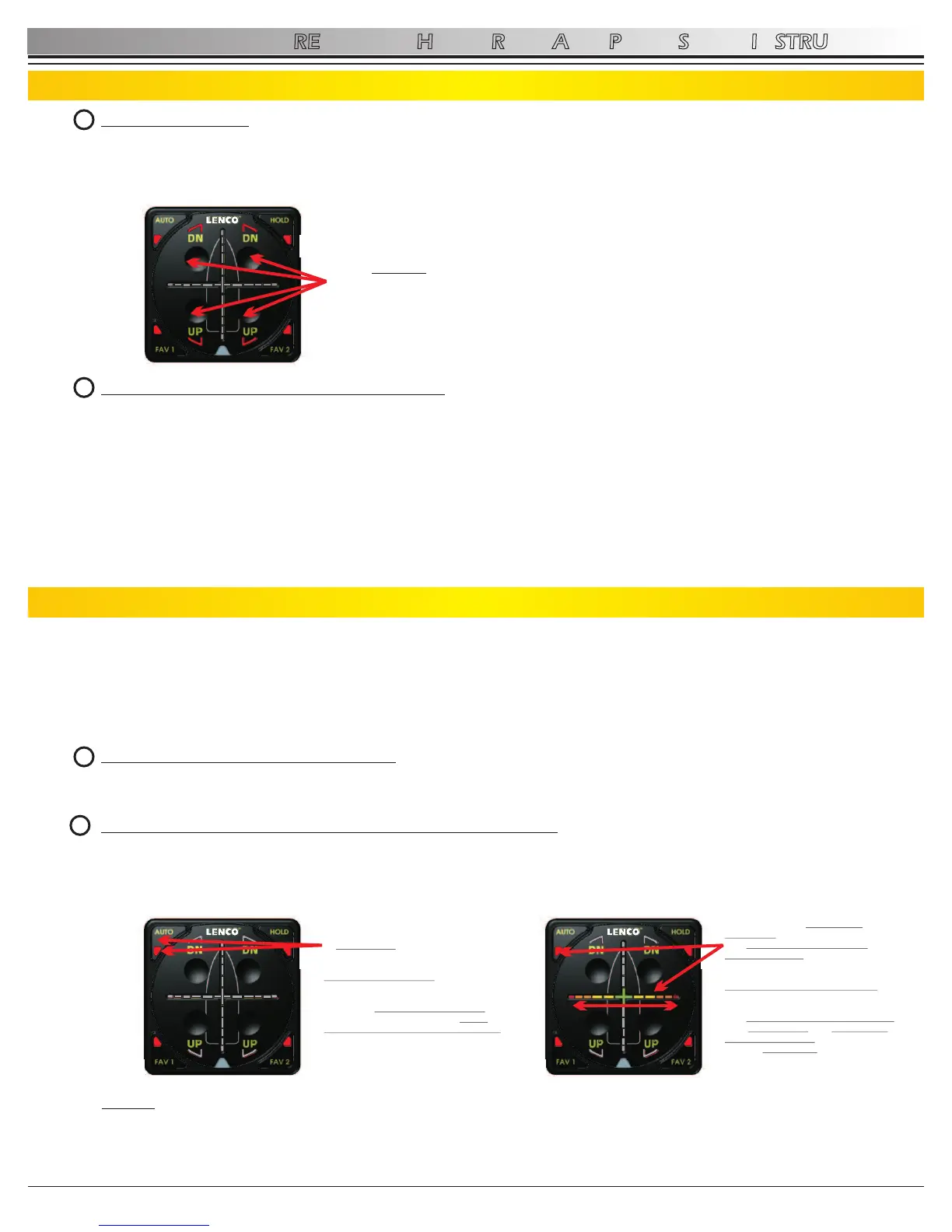

6.0 RESETTING HOME ROLL AND PITCH SETUP INSTRUCTIONS
21
AUTO GLIDE
6.1 Resetting Home Pitch Default Position ONLY (Continued)
Rev 03-10-11
After erasing the HOME PITCH DEFAULT POSITION, you must exit TEST MODE before you can re-enter the HOME
PITCH CALIBRATION MODE. Exit TEST MODE by holding down all four (4) UP/DN buttons for one (1) second. The
AUTOMATIC SETTING LED INDICATORS will go blank indicating the Auto Glide is back in STANDBY MODE.
4
EXIT TEST MODE:
DN
DN
A
U
T
O
UP UP
F
H
F
A
O
A
V
L
V
1
D
2
TM
TO EXIT TEST MODE, HOLD
ALL FOUR (4) UP/DN BUTTONS
AT THE SAME TIME FOR ONE
(1) SECOND.
5
RESET HOME PITCH DEFAULT POSITION:
Restart your motor(s) and the Auto Glide will default to HOME PITCH CALIBRATION MODE. The VERTICAL
CROSSHAIR LED INDICATORS will scroll up and down to indicate the Auto Glide is ready to reset a new HOME
PITCH DEFAULT POSITION.
Return to page 17 of this manual for HOME PITCH SETUP INSTRUCTIONS and follow the instructions to set the
new HOME PITCH DEFAULT POSITION.
6.2 Resetting Home Roll and Home Pitch Default Positions
If you need to reset the HOME ROLL DEFAULT POSITION, you will also need to erase and reset the HOME PITCH
DEFAULT POSITION. The Auto Glide erases both HOME ROLL AND HOME PITCH DEFAULT POSITIONS when you erase
the HOME ROLL DEFAULT POSITION. Even if you only want to erase the HOME ROLL DEFAULT POSITION, the Auto Glide
will automatically erase the HOME PITCH DEFAULT POSITION.
The following instructions explain how to erase and reset both HOME ROLL AND HOME PITCH DEFAULT POSITIONS.
1
ACTIVATE and VERIFY TEST MODE:
SEE STEPS 1 & 2 ON PAGE 20
2
ERASING HOME ROLL AND PITCH DEFAULT POSITION:
Once the Auto Glide is in TEST MODE, press and hold the “AUTO” AUTOMATIC SETTING button until the “AUTO”
LED INDICATOR flashes three times. The three flashes of the “AUTO” LED INDICATOR confirm that both the HOME
ROLL AND PITCH DEFAULT POSITIONS have been erased.
DN
DN
A
U
T
O
UP UP
F
H
F
A
O
A
V
L
V
1
D
2
TM
WHILE THE AUTO GLIDE IS
IN TEST MODE, PRESS AND
HOLD THE “AUTO” AUTOMATIC
SETTING BUTTON UNTIL THE
“AUTO” LED INDICATOR FLASHES
THREE (3) TIMES.
ONCE THE “AUTO” LED INDICATOR
STOPS FLASHING, BOTH THE HOME
ROLL AND PITCH DEFAULT POSITIONS
HAVE BEEN ERASED.
DN
DN
A
U
T
O
UP UP
F
H
F
A
O
A
V
L
V
1
D
2
TM
AS SOON AS THE “AUTO” LED
INDICATOR STOPS FLASHING,
THE HORIZONTAL CROSS HAIR
LED INDICATORS SCROLL BACK
AND FORTH TO INDICATE THE
AUTO GLIDE HS RE-ENTERED
HOME ROLL CALIBRATION MODE.
ONCE THE AUTO GLIDE HAS ERASED
THE HOME ROLL DEFAULT POSITION,
YOU MUST RESET THE HOME ROLL
DEFAULT POSITION BEFORE EXITING
OUT OF TEST MODE.
NOTE: IF YOU DO NOT RESET THE HOME ROLL DEFAULT POSITION BEFORE EXITING TEST
MODE, THE AUTO GLIDE WILL AUTOMATICALLY RESAVE THE PREVIOUS HOME ROLL DEFAULT
POSITION WHEN YOU EXIT OUT OF TEST MODE.
To Next Page
