LENCO Auto Glide Installation & Setup Guide

6.0 RESETTING HOME ROLL AND PITCH SETUP INSTRUCTIONS
22
AUTO GLIDE
6.2 Resetting Home Roll and Home Pitch Default Positions (Continued)
Rev 03-10-11

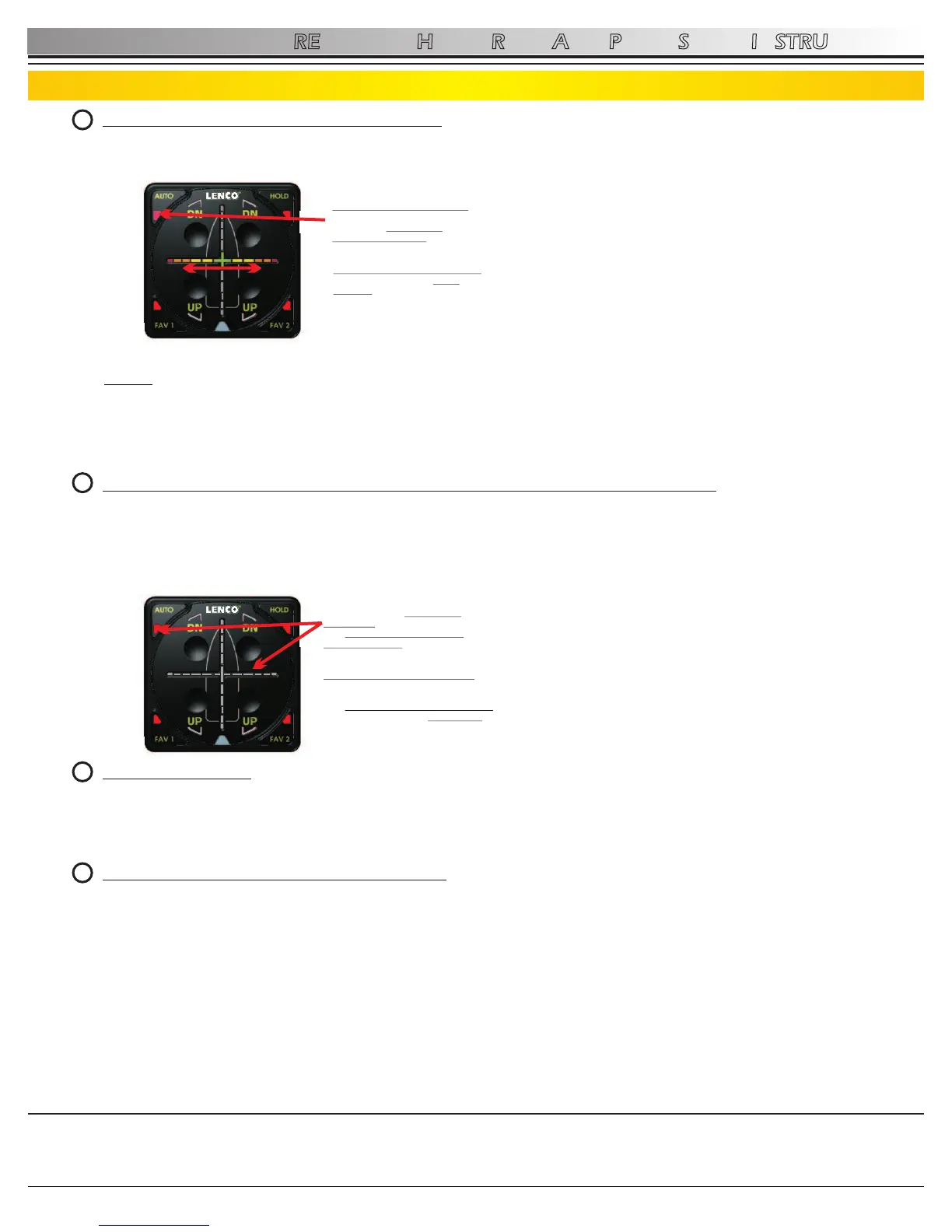

Once the Auto Glide is in ROLL CALIBRATION MODE, you will need to reset the HOME ROLL DEFAULT POSITION
by pressing and releasing the “AUTO” Automatic button.
RESET HOME ROLL DEFAULT POSITION:
CONFIRMATION NEW HOME ROLL DEFAULT POSITION HAS BEEN SAVED:
Once you release the “AUTO” AUTOMATIC SETTING button the “AUTO” LED INDICATOR will flash three times. The
three flashes of the “AUTO” LED INDICATOR confirm that the new HOME ROLL DEFAULT POSITIONS has been
stored. The HORIZONTAL CROSSHAIR LED INDICATORS will also stop scrolling to indicate the Auto Glide has
exited out of HOME ROLL CALIBRATION MODE and has defaulted back into TEST MODE.
3
4
NOTE: SETTING AN ACCURATE HOME ROLL DEFAULT POSITION IS VERY IMPORTANT TO THE
PERFORMANCE OF THE AUTO GLIDE. LENCO MARINE RECOMMENDS SETTING THE HOME ROLL DEFAULT
POSITION IN SMOOTH WATER CONDITIONS. IF THE BOAT IS ROCKING BACK AND FORTH WHEN THE HOME
ROLL DEFAULT POSITION IS CALIBRATED, THE HOME ROLL POSITION MAY BE SLIGHT SKEWED TO PORT
OR STARBOARD.
DN
DN
A
U
T
O
UP UP
F
H
F
A
O
A
V
L
V
1
D
2
TM
THE NEW ROLL POSITION OF THE
BOAT WILL BE STORED AS THE
HOME ROLL DEFAULT POSITION
AT THE MOMENT THE AUTO
BUTTON IS PUSHED.
PRESS AND RELEASE THE
“AUTO” AUTOMATIC SETTING
BUTTON WHILE THE AUTO
GLIDE IS IN HOME ROLL
CALIBRATION MODE.
DN
DN
A
U
T
O
UP UP
F
H
F
A
O
A
V
L
V
1
D
2
TM
AS SOON AS THE “AUTO” LED
INDICATOR STOPS FLASHING,
THE HORIZONTAL CROSSHAIR
LED INDICATORS ALSO STOP
SCROLLING TO INDICATE THE
AUTO GLIDE HAS SAVED THE NEW
HOME ROLL DEFAULT POSITION.
ONCE THE AUTO GLIDE HAS STORED
THE HOME ROLL DEFAULT POSITION,
IT DEFAULTS BACK TO TEST MODE.
After erasing the HOME PITCH DEFAULT POSITION, you must exit TEST MODE before you can re-enter the HOME
PITCH CALIBRATION MODE. Exit TEST MODE by holding down all four (4) UP/DN buttons for one (1) second. The
AUTOMATIC SETTING LED INDICATORS will go blank indicating the Auto Glide is back in STANDBY MODE.
SEE ILLUSTRATION ON PAGE 21.
5
EXIT TEST MODE:
6
RESET HOME PITCH DEFAULT POSITION:
Restart your motor(s) and the Auto Glide will default to HOME PITCH CALIBRATION MODE. The VERTICAL
CROSSHAIR LED INDICATORS will scroll up and down to indicate the Auto Glide is ready to reset a new HOME
PITCH DEFAULT POSITION.
Return to page 15 of the HOME ROLL AND PITCH SETUP INSTRUCTIONS and follow the instructions to set the
new HOME PITCH DEFAULT POSITION.
END OF OWNER’S MANUAL A
Refer to Owner’s Manual B for Operational Instructions
