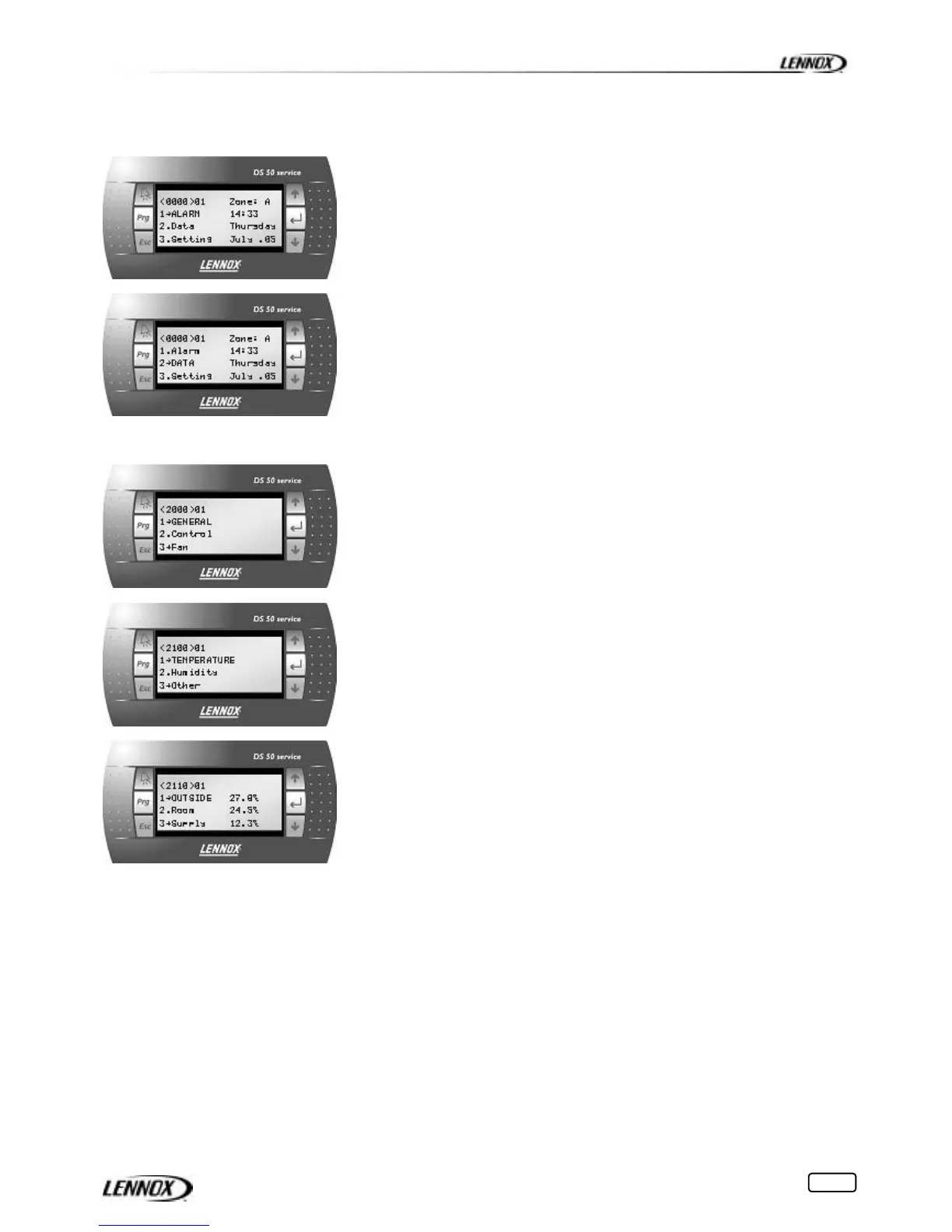

Navigation in the screens
Main menu (0000)
S.5
S.6
Data (2000)
S.7
S.8
S.9
The four digits in brackets indicate the number of the current menu.
The two digits beside the brackets indicate the pLan number of the selected
card.
The display on the right indicates the period of operation and the current
time conditions.
Scrolling the menus
Press button
!or # to move the cursor upwards or downwards. The item
selected is displayed in CAPITAL letters preceded by the symbol ‘!’. It can
then be selected by pressing button $.
A ‘+’ or ‘++’ symbol beside the number of the first or third line indicates the
existence of one or more additional lines.
Examples S.6 to S.9 show how the menu tree changes each time
button $ from the menu is pressed
$ Data (2000)
$ General (2100)
$ Temperature (2210)
(2211) Outside temperature 27.9°C
(2212) Room temperature 24.5°C
(2213) Blower temperature 12.3°C
Press “Esc” at any time sends to return to the previous level of the menu
tree. In the example shown above, “Esc” must be pressed 3 times to return
to the main menu (0000)
