Special dignostic screens
In oirder to analyse the operation of the unit, it is possible to use the following screens which can be reached by pressing
the ‘Prg’ button in menu 0000 or the data menus 2xxx
Press button !or # to navigate from one screen to another
Screens are available as functions of the program configuration.

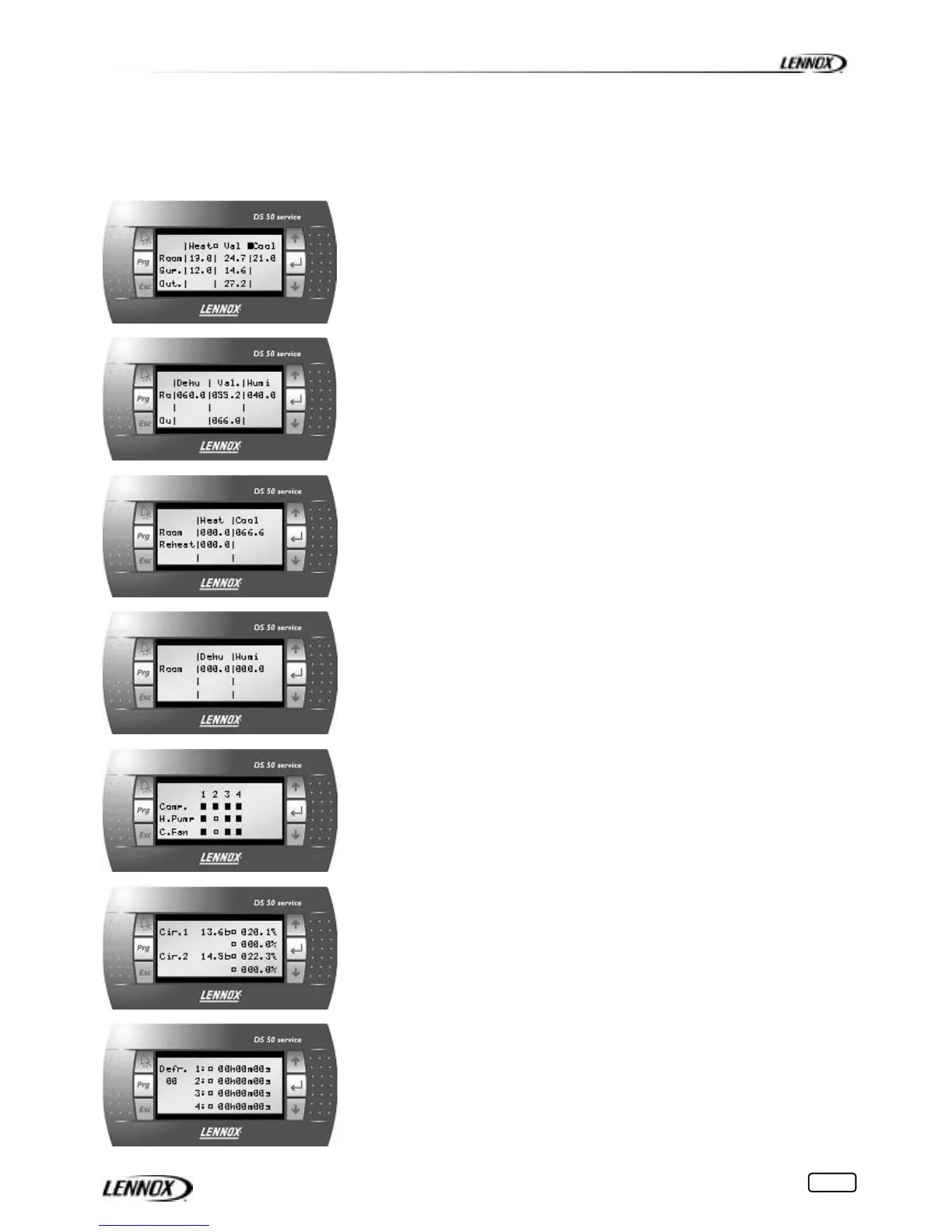

T.1
T.2
T.3
T.4
T.5
T.6
T.7
T.1 General temperatures
Heating or Cooling mode of operation
Environment; Hot Set Point, Temperature, Cold Set Point
Blowing; Hot Set Point, Temperature
Outside Air; Temperature
T.2 General humidity
(Option)
Environment; Dehumidification Set Point, Humidity, Humidification Set Point
Outside Air; Humidity
T.3 General Power Factors, Temperature
Environment; Hot Factor, Cold Factor
Blowing; Hot Factor
T.4 General Power Factors, Humidity
(Option)
Environment; Dehumidification Factor, Humidification Factor
T.5 Condenser Compressors and Fans
Circuit 1, Circuit 2, Circuit 3 or Circuit 4
‘⇔’ Stop or ‘#’ Start; Compressors
‘⇔’ Stop or ‘#’ Start; Cycle reversing valve
‘⇔’ Stop or ‘#’ Start; Condenser fans
T.6 Condenser Compressors and Fans
(Option)
Circuit 1, Circuit pressure, ‘⇔’ H.P. or ‘#’ L.P.; Circuit temperature.
Circuit 1, ‘#’ End of defrosting, Speed variation power factor.
Circuit 2, Circuit pressure, ‘⇔’ H.P. or ‘#’ L.P.; Circuit temperature.
Circuit 2, ‘#’ End of defrosting, Speed variation power factor.
T.7 Defrost
(Option)
Circuit 1, ‘#’ Deicing requested; Compressor operating time since last
defrost
Same for Circuits 2 to 4
