eNeRGy-IOM-2020.11-EN
43

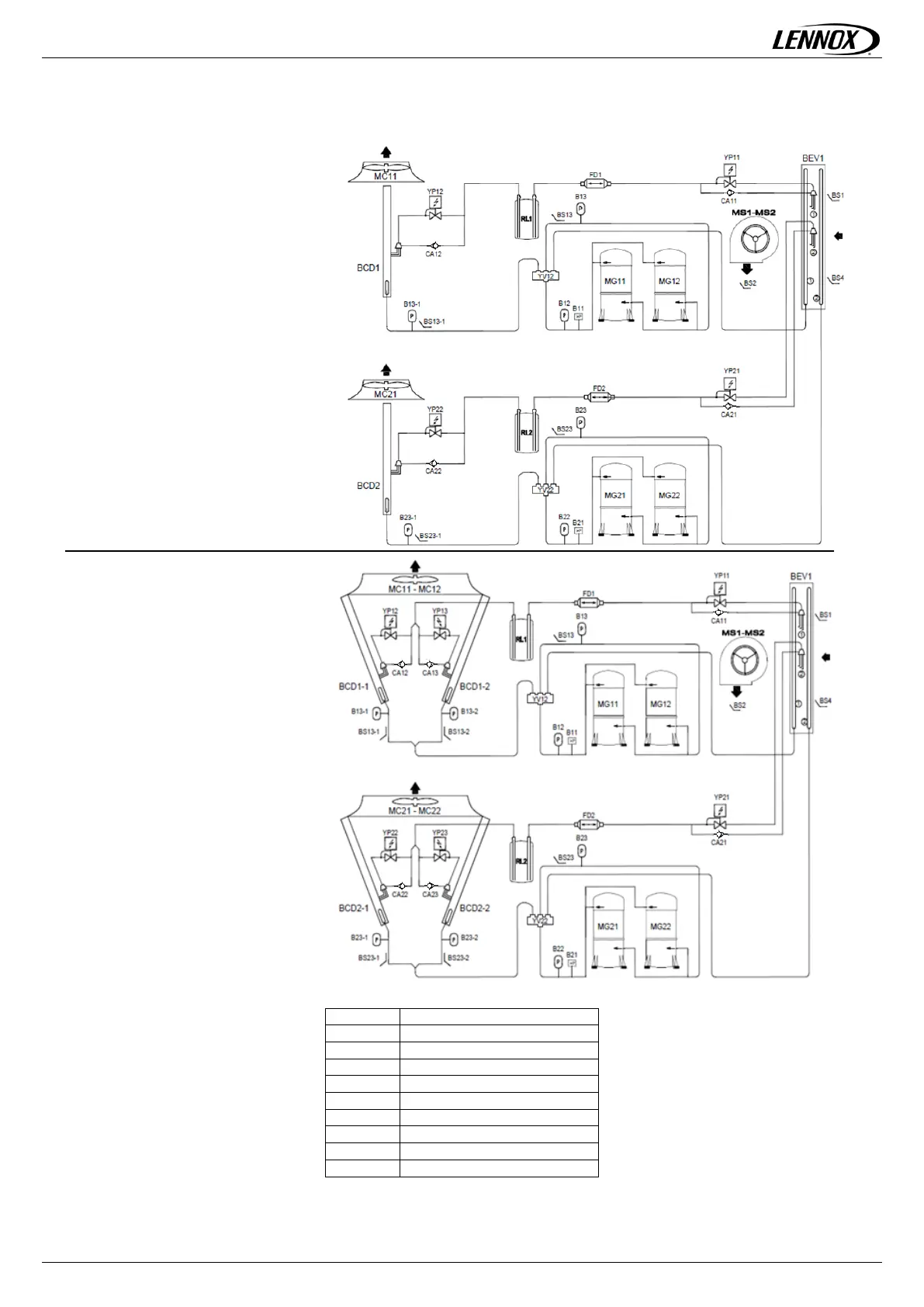

Generic refrigerant sketch
Depending on the unit size, the number of compressors can change (Single or Tandem), the number of filter dryer can change (1 or
2 in parallel), the liquid receiver can be present or not. Some connection valve (Schrader type) are available to load/unload the circuit.
UNITS
E014AH055FM2M
E014AH065FM2M
E019AH066FM2M
E014AH075FM2M
E019AH076FM2M
E016AH085FM2M
E019AH086FM2M
E016AH105FM2M
E019AH106FM2M
E019AH124FM2M
E022AH077FM2M
E024AH078FM2M
E022AH087FM2M
E024AH088FM2M
E022AH107FM2M
E024AH108FM2M
UNITS
E024AH126FM2M
E022AH140FM2M
E024AH141FM2M
E027AH160FM2M
E027AH180FM2M
BEV-
Indoor coil
BS-
Temperature sensor
YP-
Expansion valve
CAT-
Check valve
FD-
Filter dryer
RL-
Liquid receiver
BCD-
Outdoor coil
B-
Low/High pressure switch
YV-
Cycle reversal valve
MG-
Compressor
Circuit 1
Circuit 2
Circuit 1
Circuit 2
REFRIGERANT CIRCUIT
