eNeRGy-IOM-2020.12-EN
• 46 •
eRecovery

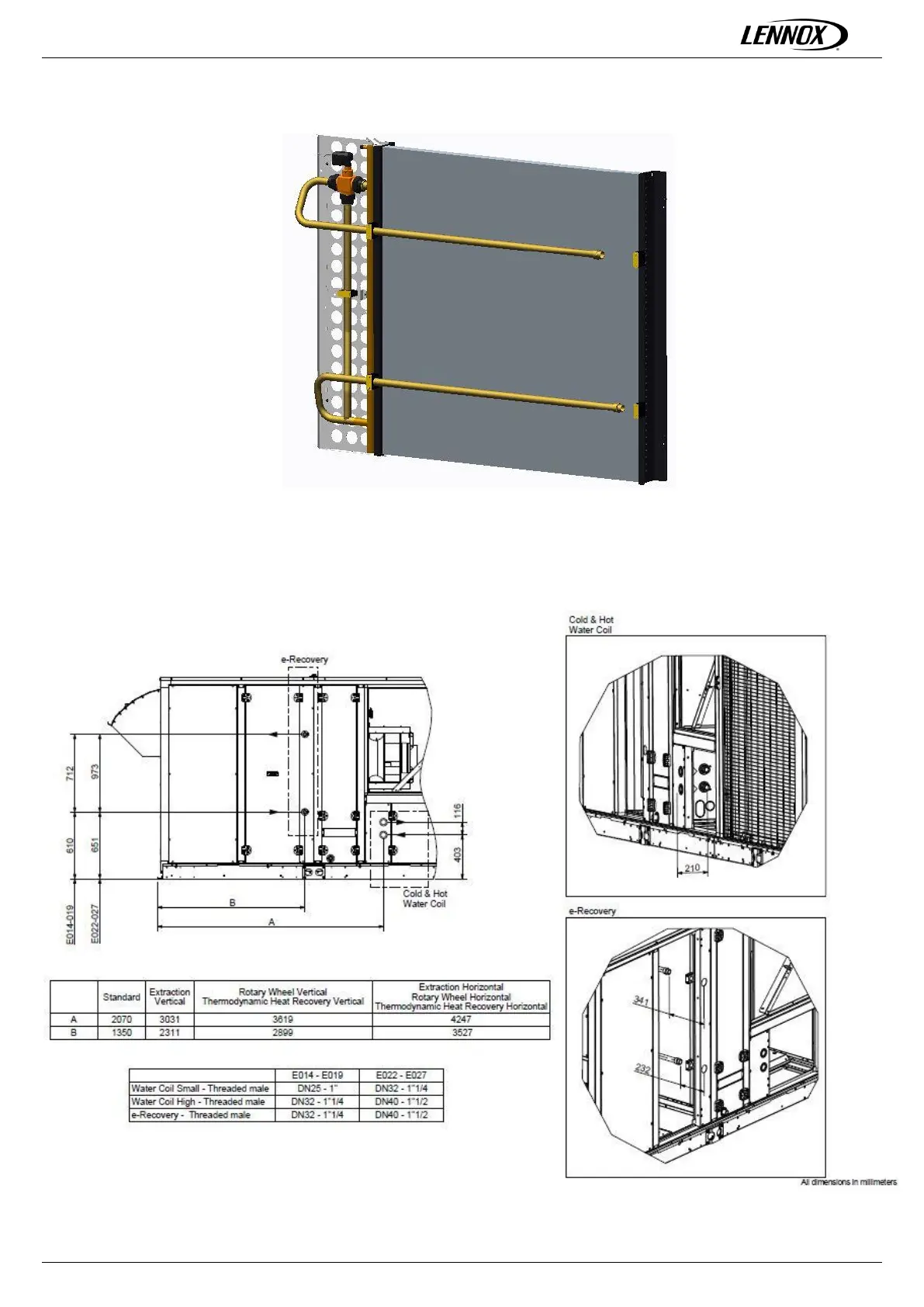

eRecovery water coil is delivered with 3 ways valve included
It is placed just before the standard coil of the unit.
The freeze protection is made via fresh damper safeties nevertheless a full freezing protection has to be done using glycol.
Water pipes connection
Water pipes of the hot (and cold) water coil & eRecovery water coil are placed inside the unit. Connection (Inlet/outlet) with the water
loop must be realised inside the unit. Some adjustable sealing parts are forecasted and mounted on the side of the unit (right hand side
airflow direction) so that the water loop pipes can go through the panels. See picture below:
