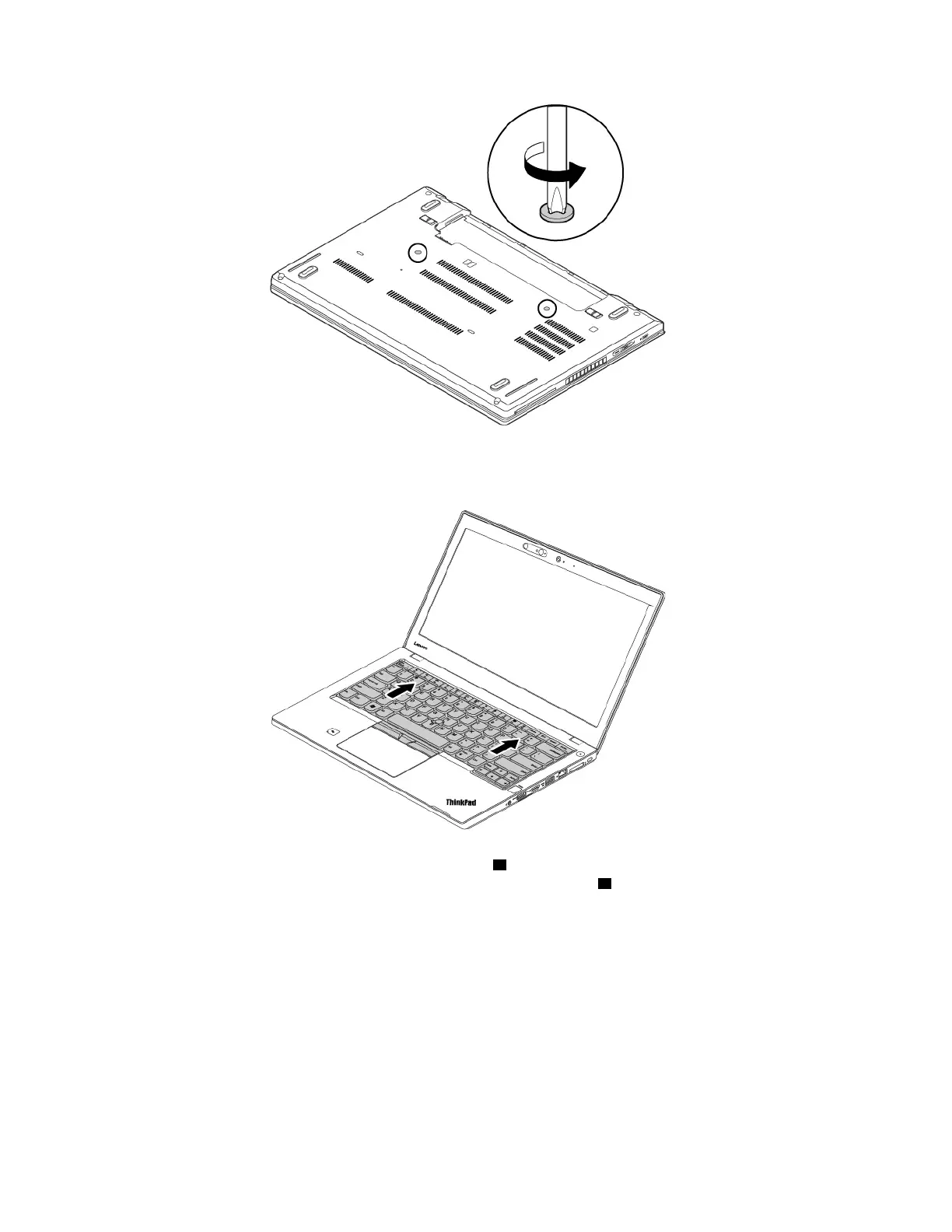

Turn the computer over and open the display. Push hard in the direction as shown to release the latches from
the keyboard bezel.
Pivot the keyboard slightly upward as shown by the arrow 1 until you can see the connectors on the bottom
side of the keyboard. Then turn over the keyboard as shown by the arrow
2 .
