• “1030 Base cover assembly” on page 65
• “1110 Speaker assembly” on page 78
• “1120 Built-in battery” on page 79

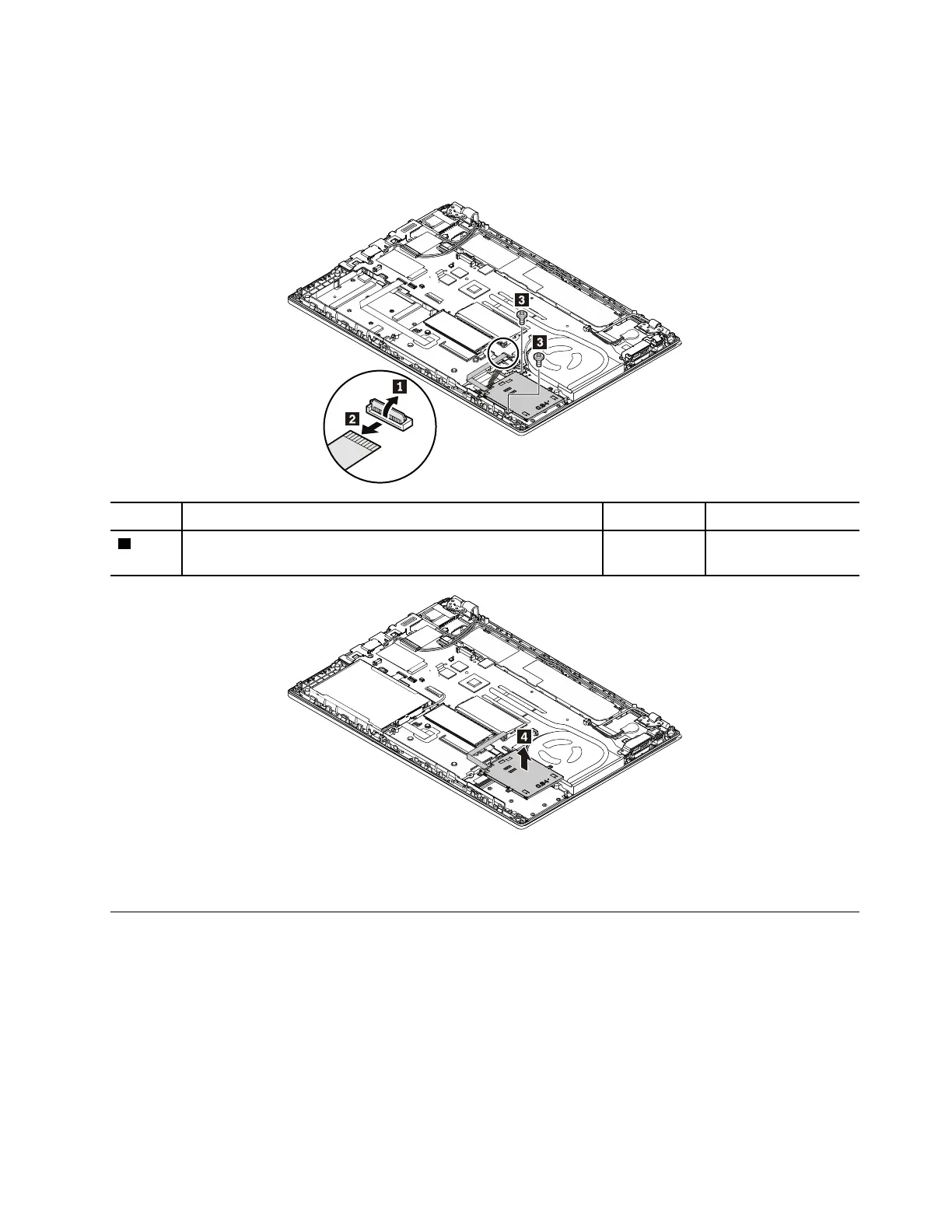

Removal steps of the smart-card reader assembly
Step Screw (quantity) Color
Torque
3
M2 × 3 mm, flat-head, nylon-coated (2)
Black 0.181 Nm
(1.85 kgf-cm)
When installing:
Ensure that the connector of the smart-card reader is attached firmly.
1140 I/O bracket and RJ45 bracket
Note: Before you start the servicing, disable the built-in battery. See “Disabling the built-in battery” on page
64.
For access, remove these FRUs:
• “1010 Removable battery” on page 64
• “1030 Base cover assembly” on page 65
Chapter 9. Removing or replacing a FRU 81
