1020 Nano-SIM card
1020 Nano-SIM card
Note: Before you start the servicing, disable the built-in battery. See “Disabling the built-in battery” on page
64.
For access, remove the following FRU:
• “1010 Removable battery” on page 64

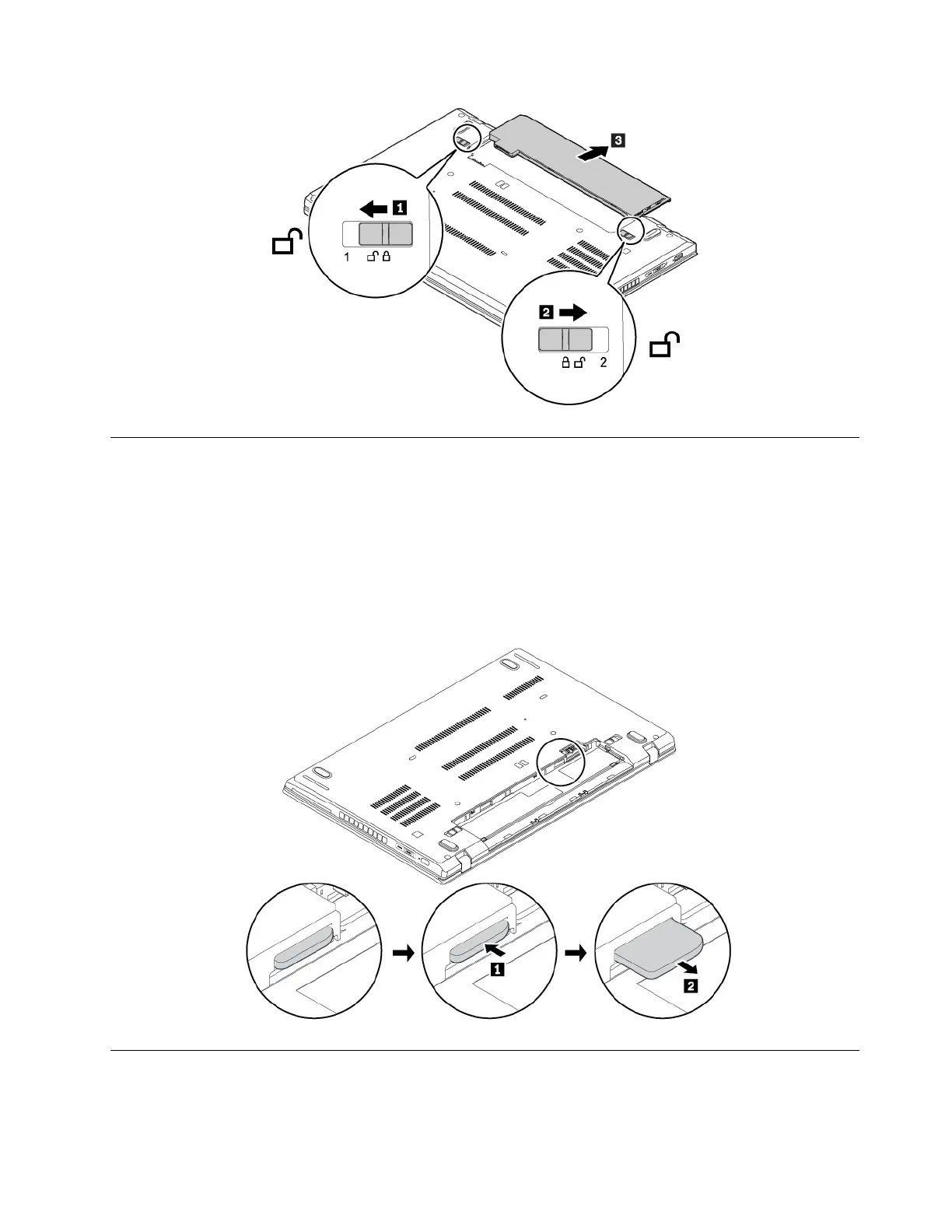

Removal steps of the nano-SIM card
1030 Base cover assembly
Note: Before you start the servicing, disable the built-in battery. See “Disabling the built-in battery” on page
64.
Chapter 9. Removing or replacing a FRU 65
