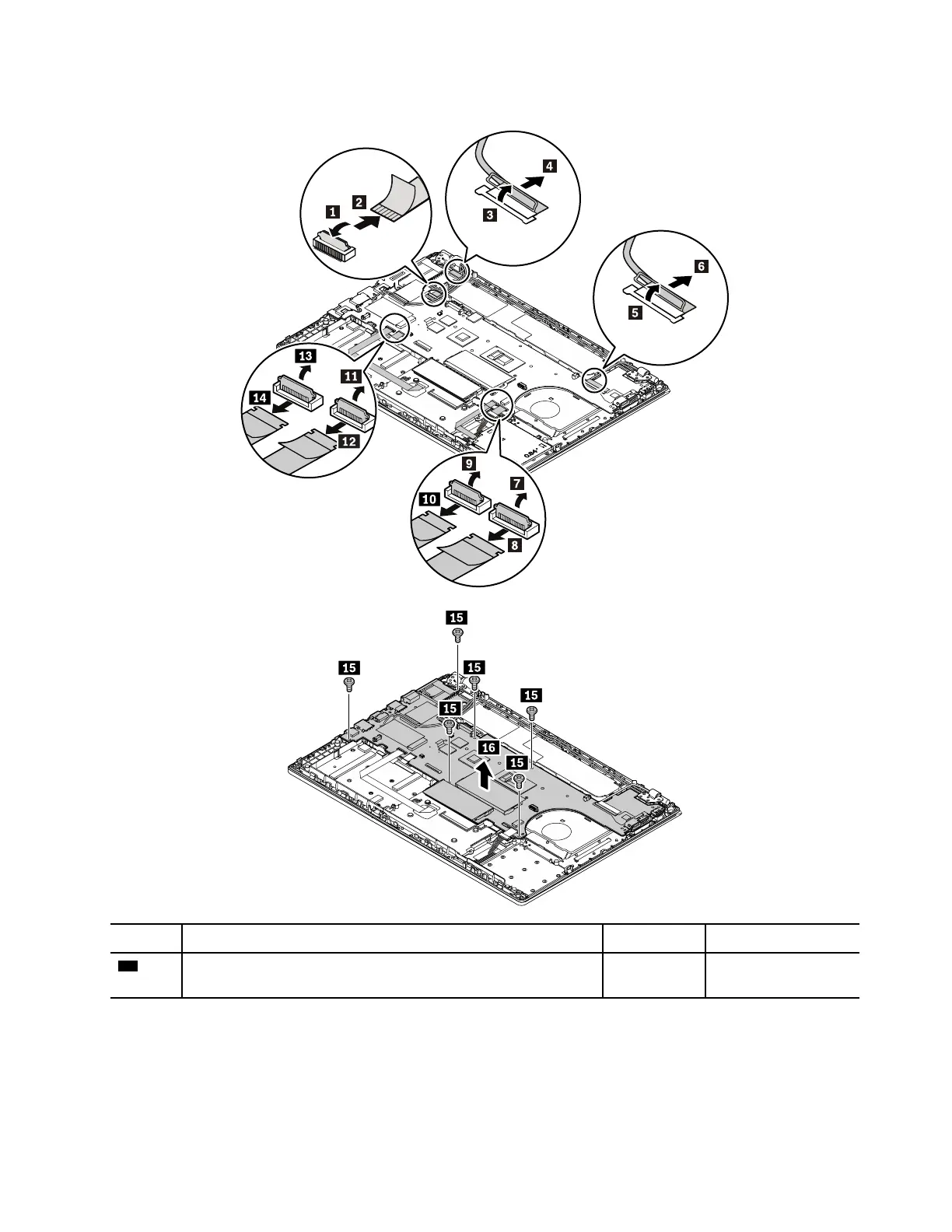

Removal
steps of
the system
board
Step
Screw (quantity)
Color
Torque
15
M2 ×
3 mm,
flat
head, nylon-coated
(6)
Black
0.181 Nm
(1.85 kgf-cm)
When
installing:
Ensure
that
the connectors
are attached
firmly.
Chapter 9
.
Removing or
replacing a
FRU
87
