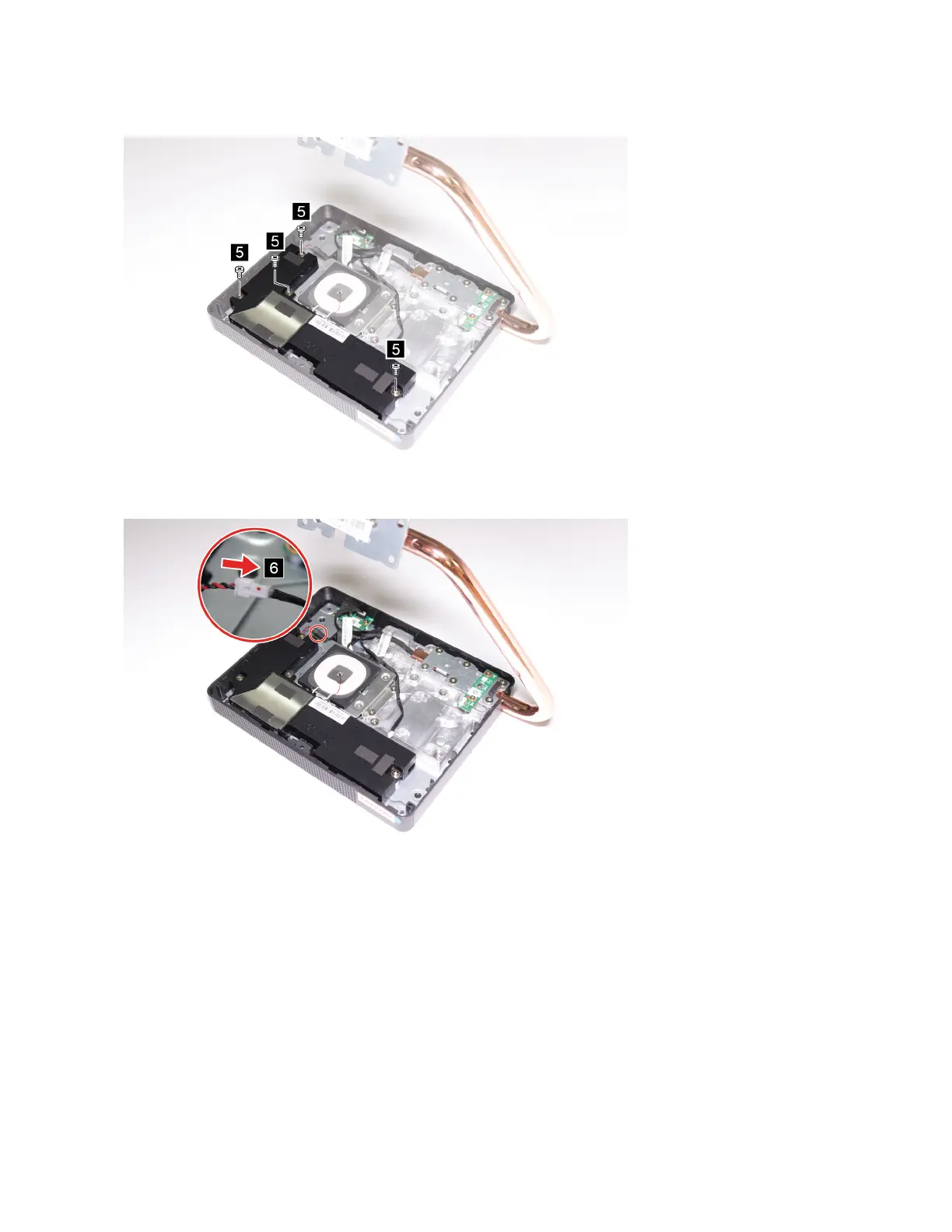

7. Secure the subwoofer with the screws.
8. Connect the subwoofer cables.
9. Reinstall the removed parts.
Wireless charging module
Prerequisite
Before you start, read Chapter 2 “Important service information” on page 27 and print the following
instructions.
Replacement procedure
1. Remove the hinge cover. See “Hinge cover” on page 57.
2. Remove the computer upper cover. See “Computer upper cover” on page 104.
3. Remove the speakers. See “Subwoofer” on page 109.
112
IdeaCentre A540-24ICB and A540-24API Hardware Maintenance Manual
