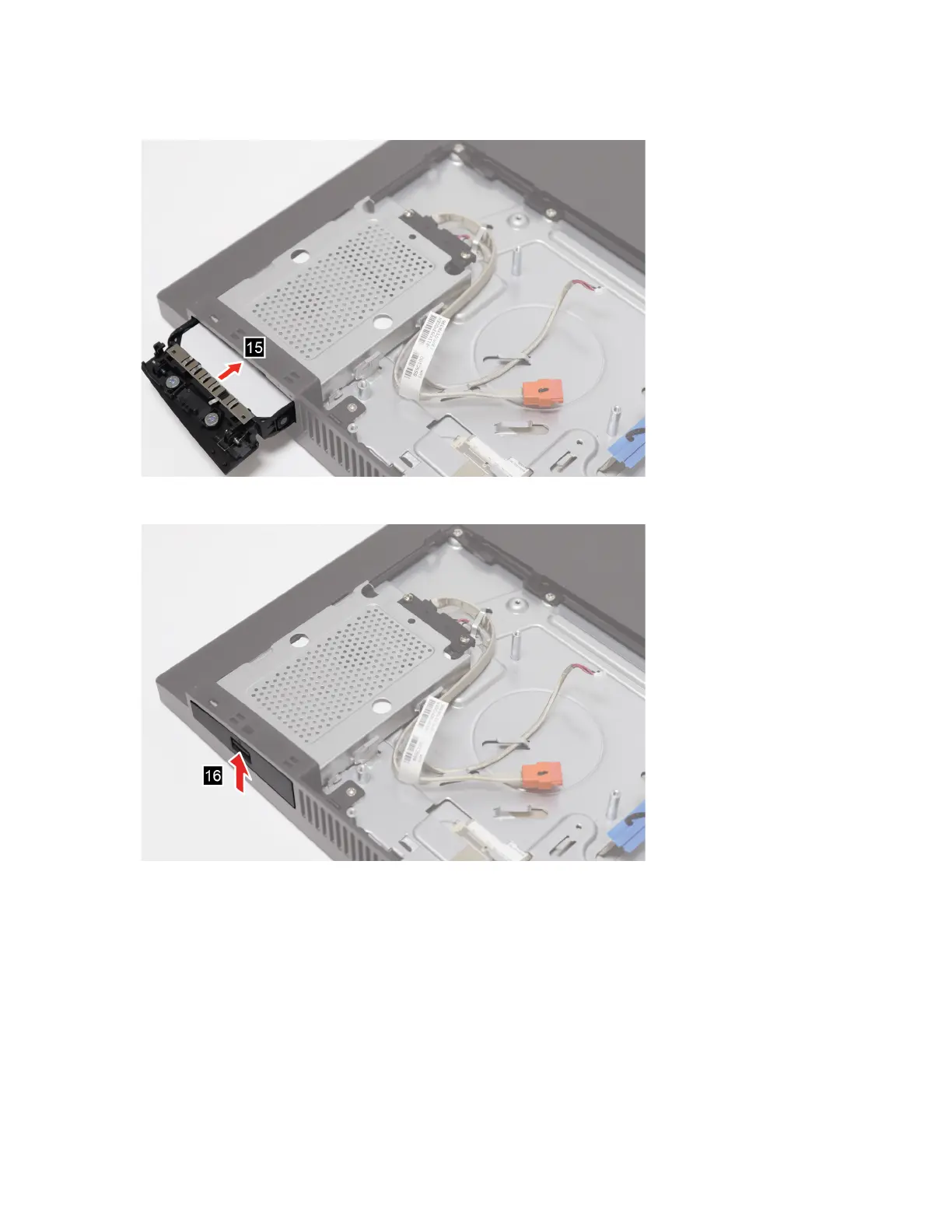

15. Insert the storage drive in the storage drive door.
16. Lock the storage drive door.
17. Reinstall the removed parts.
LCD panel
Prerequisite
Before you start, read Chapter 2 “Important service information” on page 27 and print the following
instructions.
Replacement procedure
1. Remove the hinge cover. See “Hinge cover” on page 57.
2. Remove the computer back cover. See “Computer back cover” on page 58.
Chapter 6. Hardware removal and installation 93
