Replacement
procedure
1.
Remove
the
hinge
cover.
See
“Hinge
cover”
on
page
57.
2.
Remove
the
computer
back
cover.
See
“Computer
back
cover”
on
page 58.
3.
Remove
the
system
board
frame.
See
“System
board
frame”
on page
62.

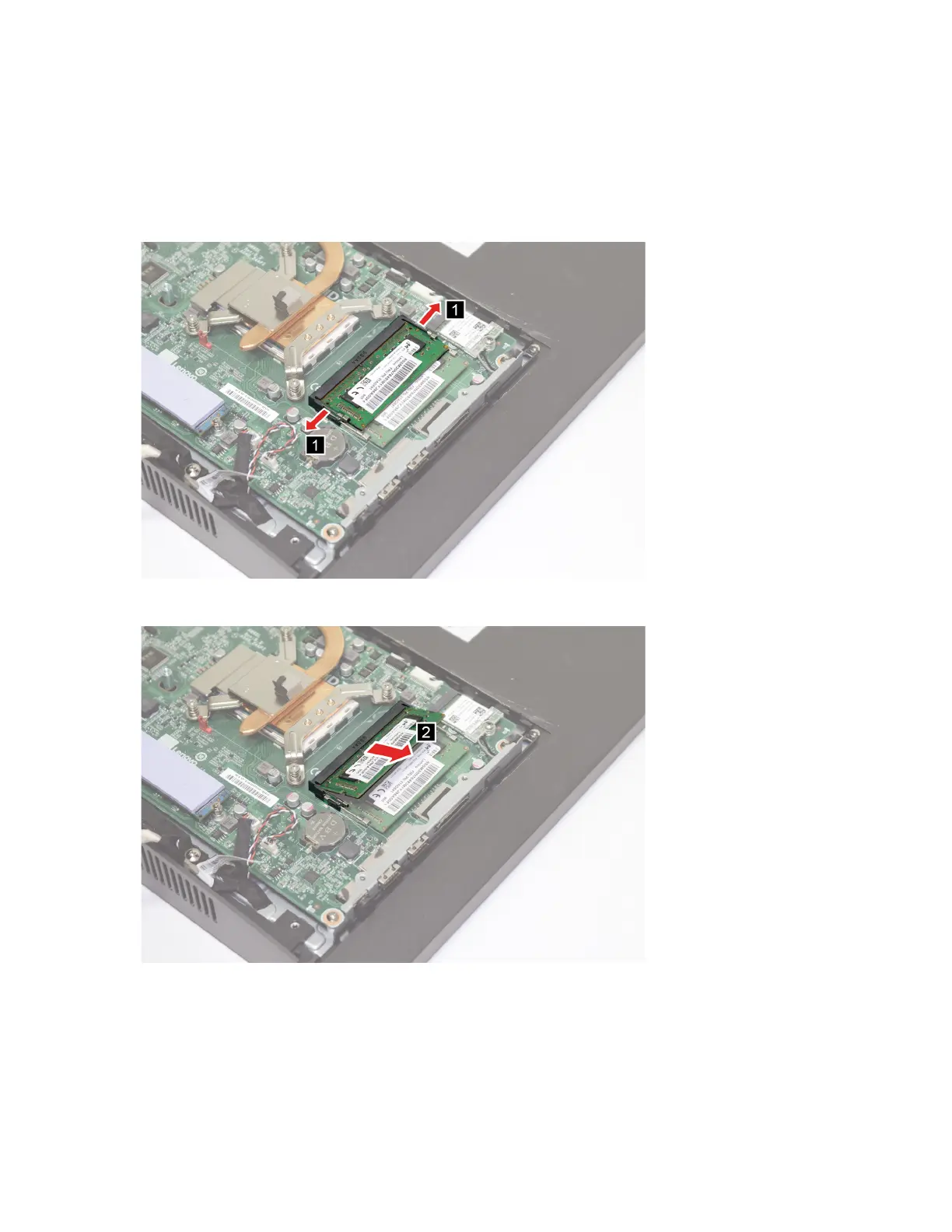

4.
Disengage
the
latches.
5.
Remove
the
memory
module.
Chapter 6
.
Hardware removal
and installation
65
70
72
