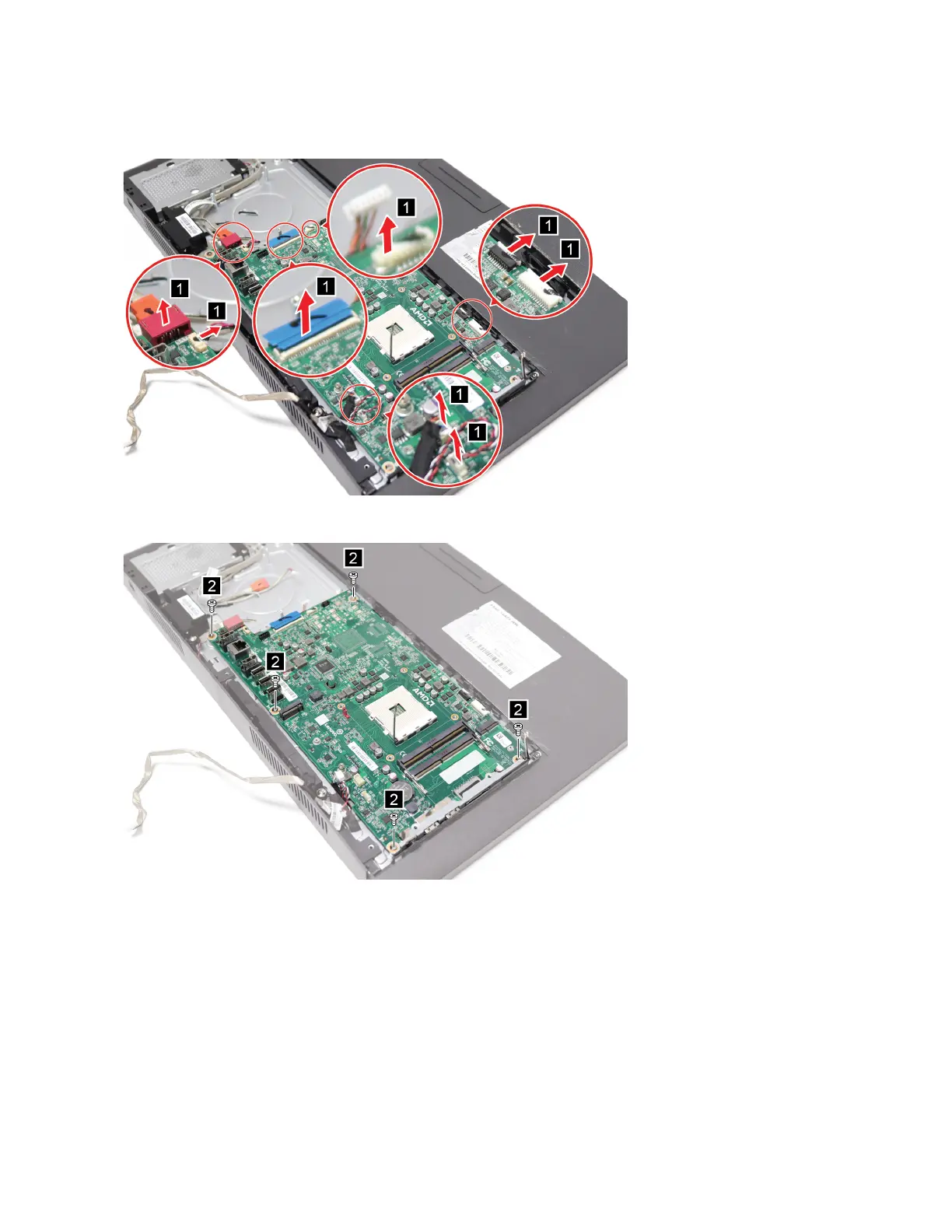

5. Record the cable routing and cable connections, and then disconnect all cables from the system board.
See “System board” on page 56.
6. Remove the screws that secure the system board.
7. Carefully remove the system board.
Note: Carefully handle the system board by its edges.
8. Install the new system board by aligning the five screw holes in the new system board with the
corresponding mounting studs.
82
IdeaCentre A540-24ICB and A540-24API Hardware Maintenance Manual
