1110
Trackpad
and trackpad
cable
For
access, remove
these FRUs
in order:
•
“1030 Base
cover assembly”
on page
78
•
“1090 Battery
pack” on
page 83

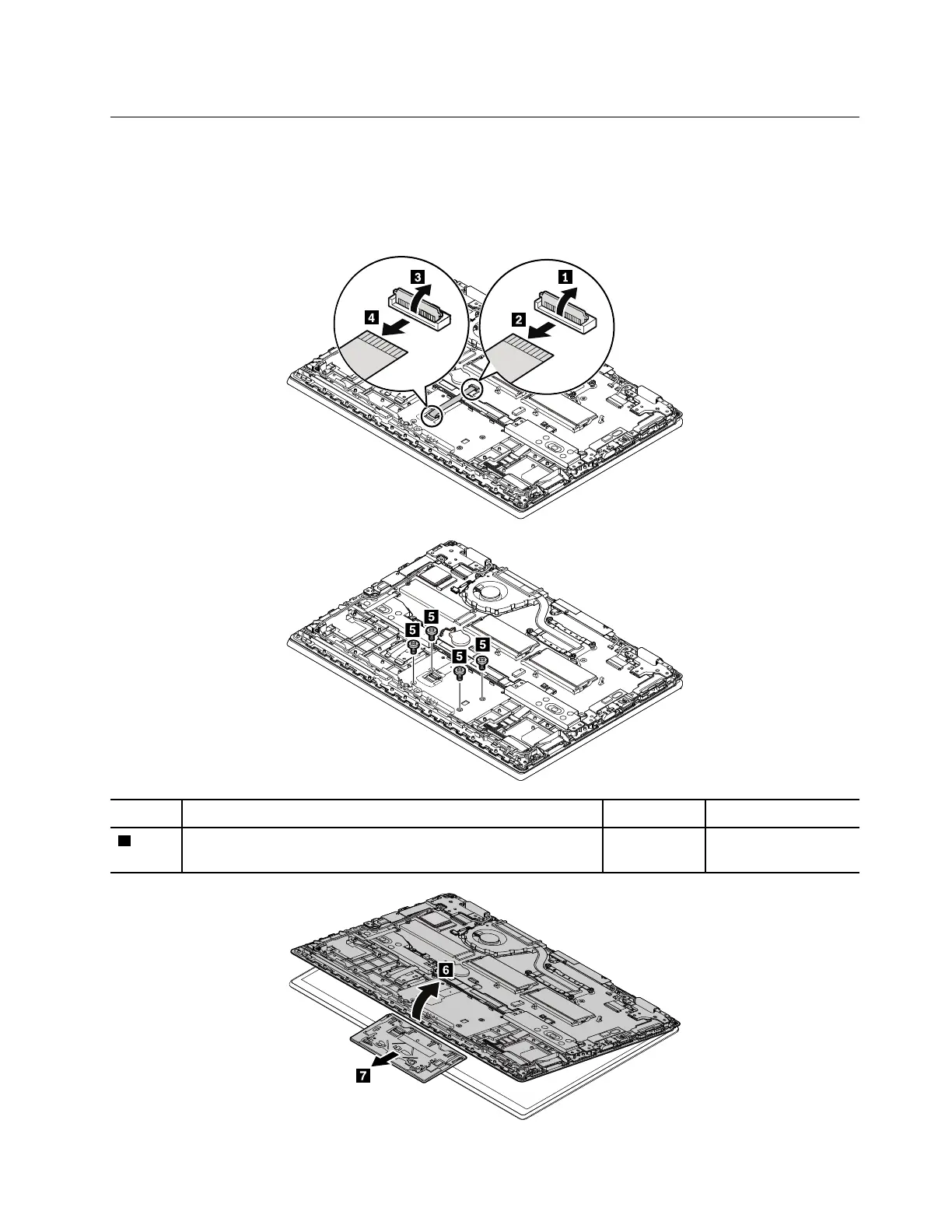

Removal
steps of
the trackpad
and trackpad
cable
Step
Screw
(quantity)
Color
Torque
5
M2 ×
2 mm,
fine pitch,
wafer-head, nylon-coated
(4)
Silver
0.181 Nm
(1.85 kgf-cm)
Chapter 9
.
