2030 Bluetooth daughter card (BDC-2)
For access, remove these FRUs in order:
v “1010 Battery pack” on page 56
v “1040 Palm rest or palm rest with fingerprint reader” on page 60
v “1060 Keyboard” on page 63
v “1070 Modem daughter card (MDC-1.5)” on page 65
v “1080 PCI Express Mini card for wireless WAN” on page 67
v “1090 PCI Express Mini card for wireless LAN” on page 69
v “1110 Keyboard bezel” on page 72
v “1160 LCD assembly” on page 80
v “2010 LCD front bezel” on page 97

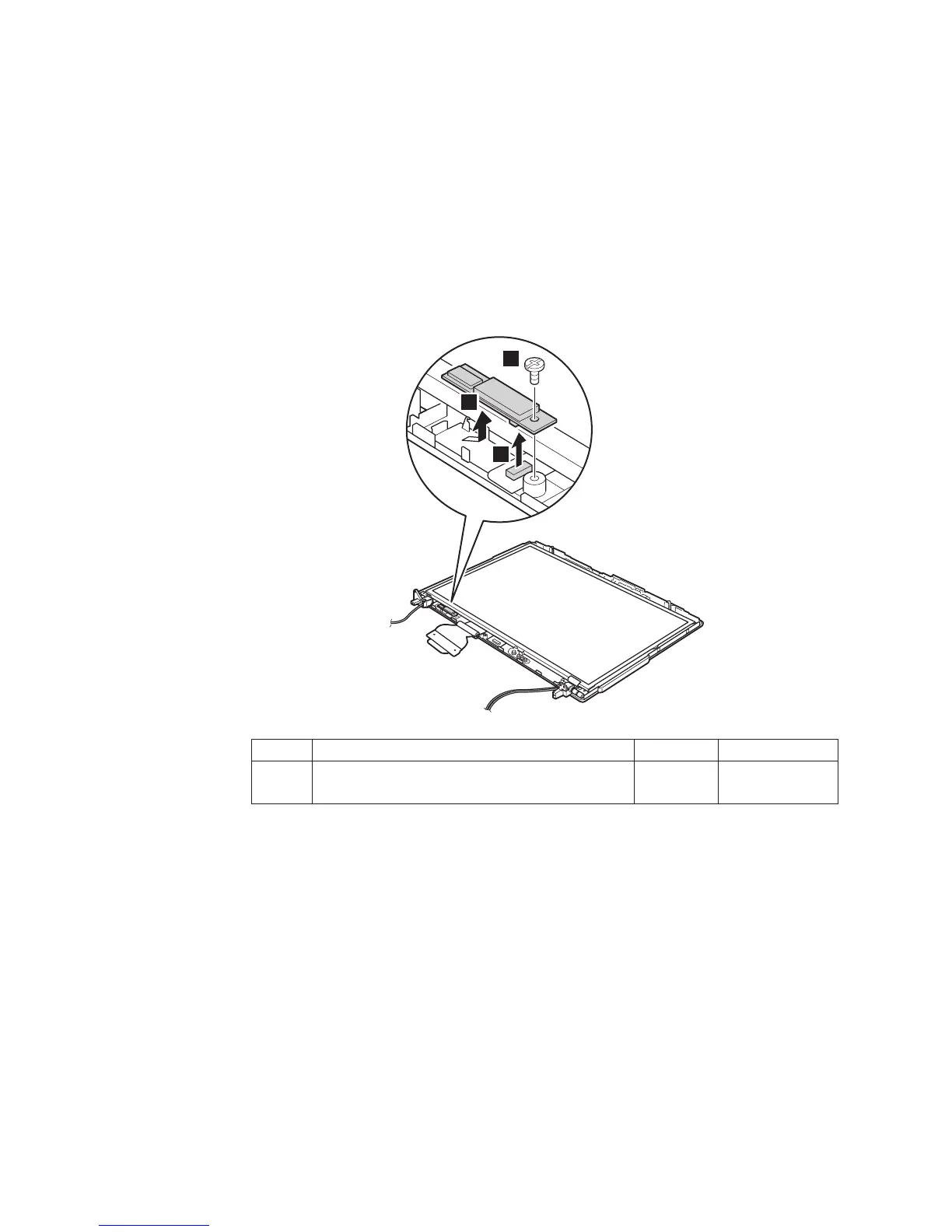

1
2
3
Step Screw (quantity) Color Torque
1 M2 × 5 mm, flat-head, nylon-coated (1) Black 0.196 Nm
(2.0 kgfcm)
Removing and replacing a FRU
100 MT 2511, 2512, 2513, and 2514
