1150 Wireless WAN antenna (DIV)
For access, remove these FRUs in order:
v “1010 Battery pack” on page 56
v “1040 Palm rest or palm rest with fingerprint reader” on page 60
v “1060 Keyboard” on page 63
v “1080 PCI Express Mini card for wireless WAN” on page 67

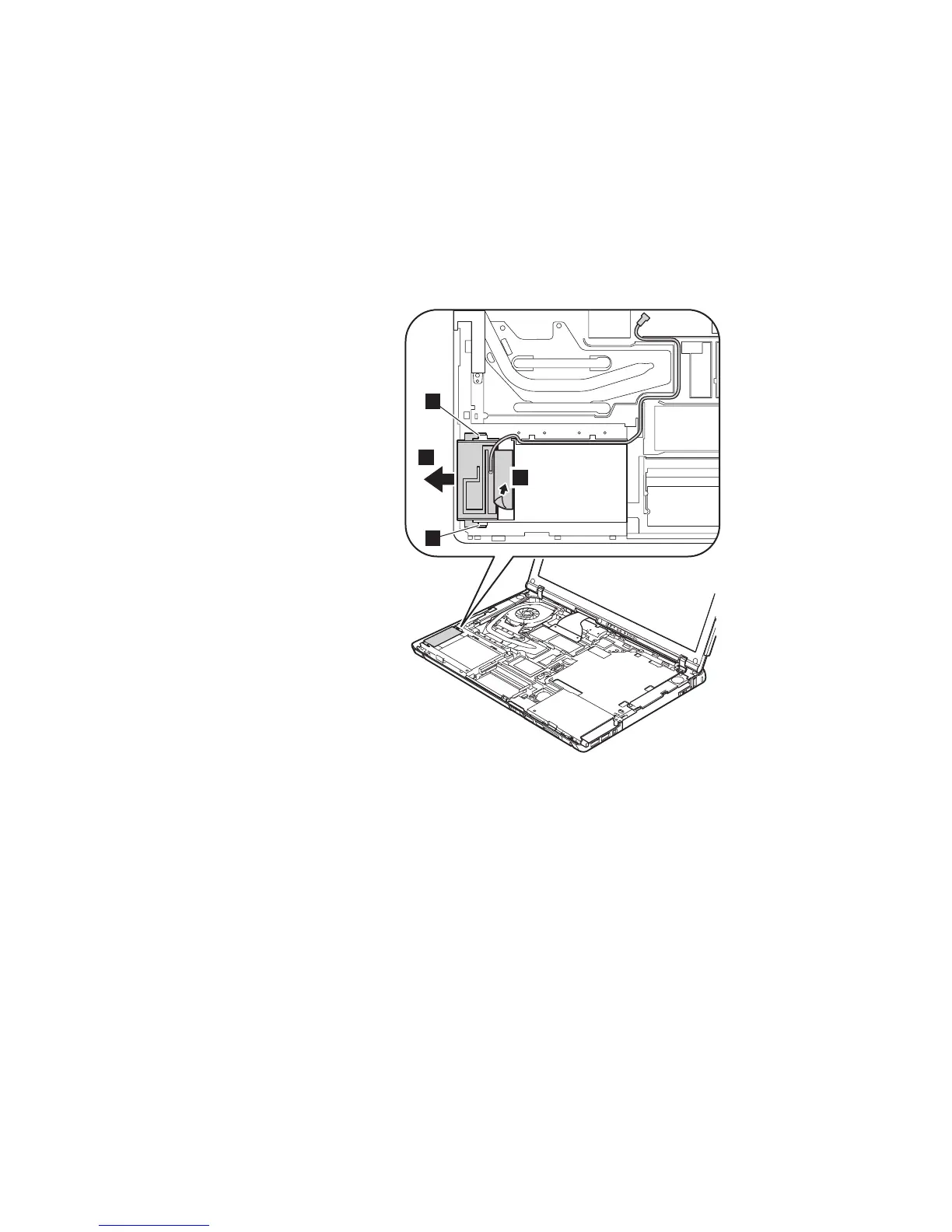

Strip the tape that secures the wireless WAN antenna 1, and release the antenna
cable from the cable guide. Then slide the antenna in the direction shown by arrow
2.
1
2
a
a
When installing: Make sure that the antenna cable is routed along the cable
guides, and that the antenna is attached to the guides a firmly.
Removing and replacing a FRU
ThinkPad Z60t 79
