1040 Palm rest or palm rest with fingerprint reader

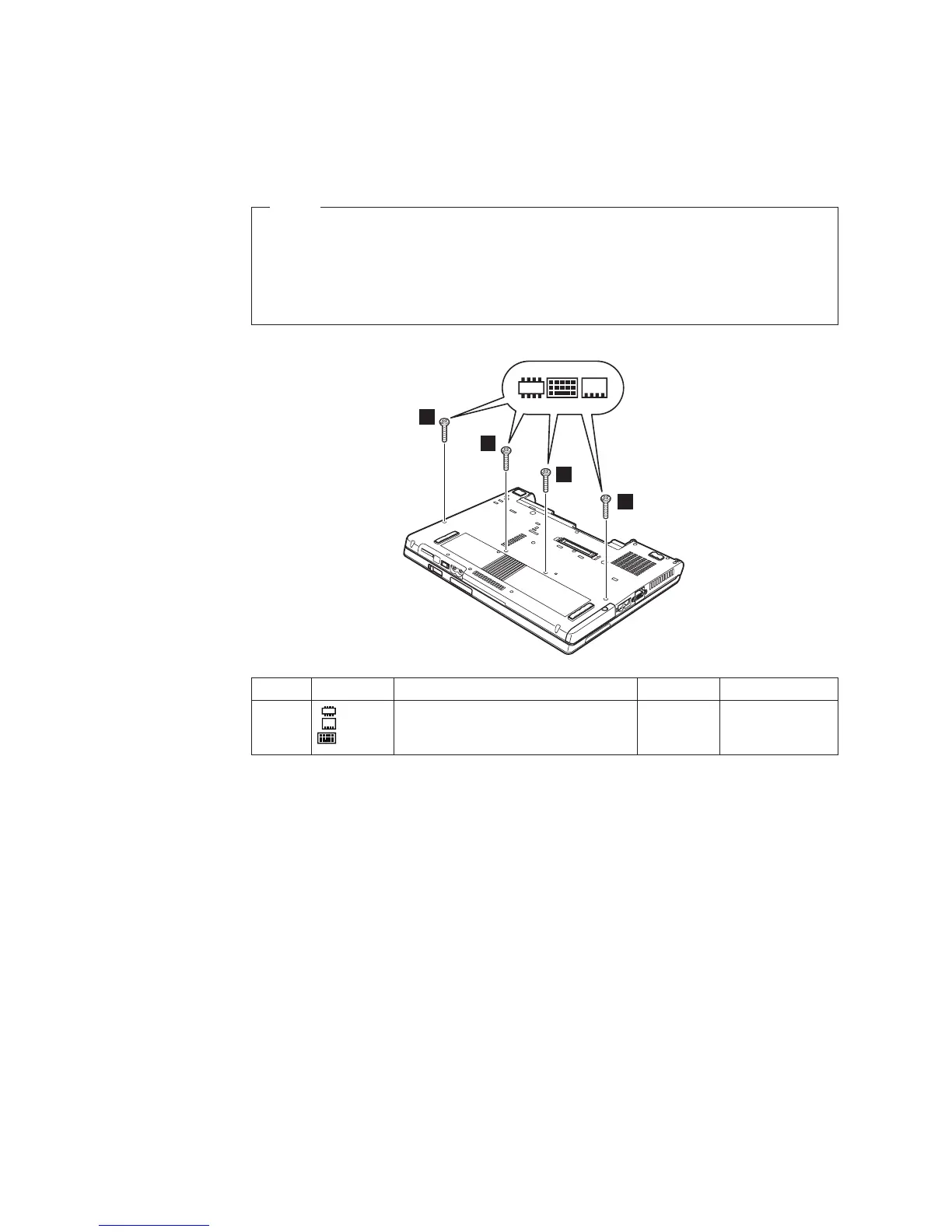

For access, remove this FRU in order:
v “1010 Battery pack” on page 56
Note
In models with the fingerprint reader, the sensor has been attached to the
palm rest FRU as the child part. If the fingerprint reader has any defects and
needs to be replaced, you need to replace the palm rest by the procedures
given in this section. These procedures are the same for a palm rest with or
without a fingerprint reader.
1
1
1
1
Step Icon Screw (quantity) Color Torque
1
M2 × 14 mm, flat-head, nylon-coated
(4)
Black 0.196 Nm
(2.0 kgfcm)
(continued)
Removing and replacing a FRU
60 MT 2511, 2512, 2513, and 2514
