2060 LCD rear cover and wireless LAN antenna cables
For access, remove these FRUs in order:
v “1010 Battery pack” on page 56
v “1040 Palm rest or palm rest with fingerprint reader” on page 60
v “1060 Keyboard” on page 63
v “1070 Modem daughter card (MDC-1.5)” on page 65
v “1080 PCI Express Mini card for wireless WAN” on page 67
v “1090 PCI Express Mini card for wireless LAN” on page 69
v 1110 Keyboard bezel” on page 72
v “1160 LCD assembly” on page 80
v “2010 LCD front bezel” on page 97
v “2020 Inverter card” on page 99
v “2030 Bluetooth daughter card (BDC-2)” on page 100
v “2040 Wireless WAN antenna cable (MAIN)” on page 102
v “2050 LCD panel, LCD cable, and hinges” on page 105

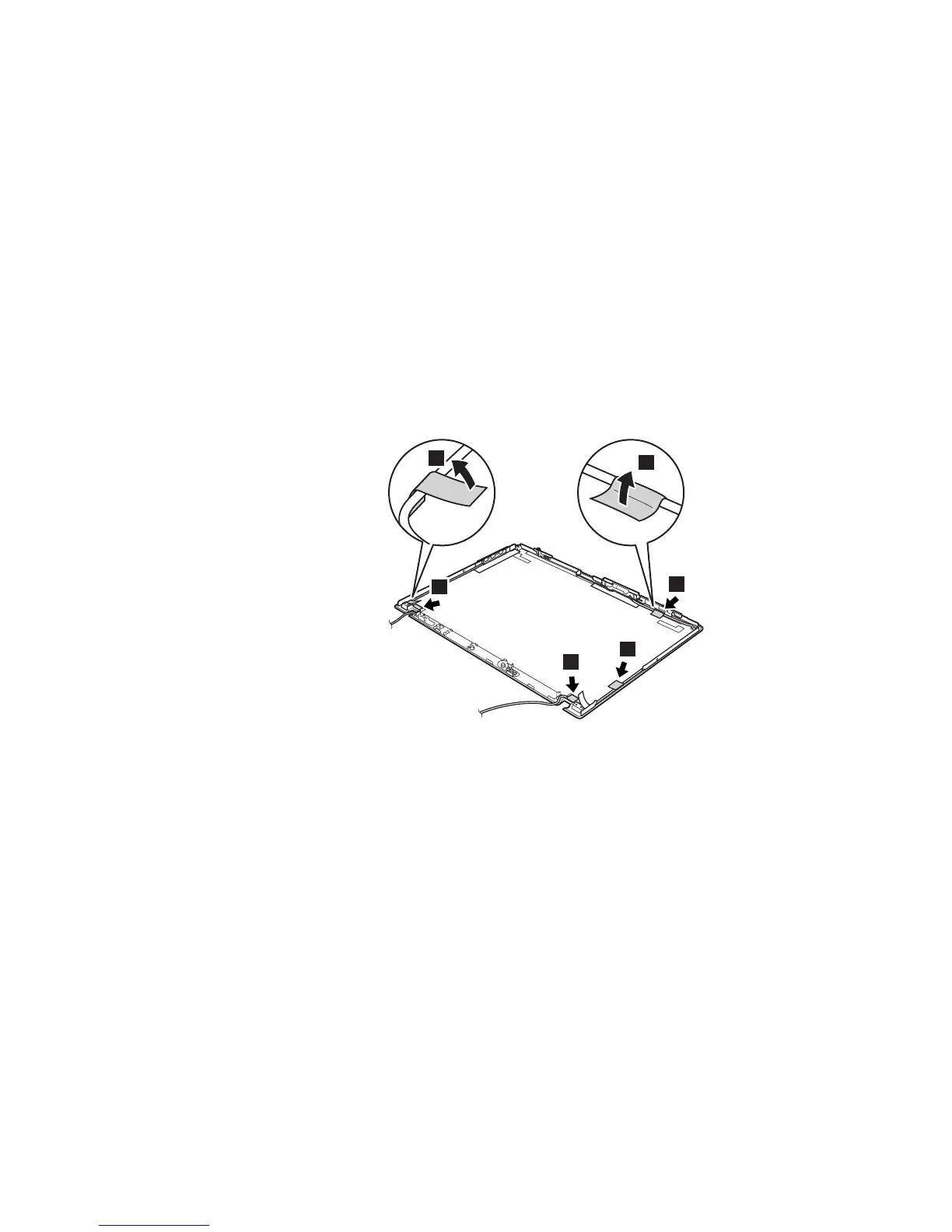

Strip the tapes 1 and 2 that secure the antenna cables.
1
1
1
1
1
2
(continued)
Removing and replacing a FRU
108 MT 2511, 2512, 2513, and 2514
