1080 PCI Express Mini card for wireless WAN
For access, remove these FRUs in order:
v “1010 Battery pack” on page 56
v “1040 Palm rest or palm rest with fingerprint reader” on page 60
v “1060 Keyboard” on page 63

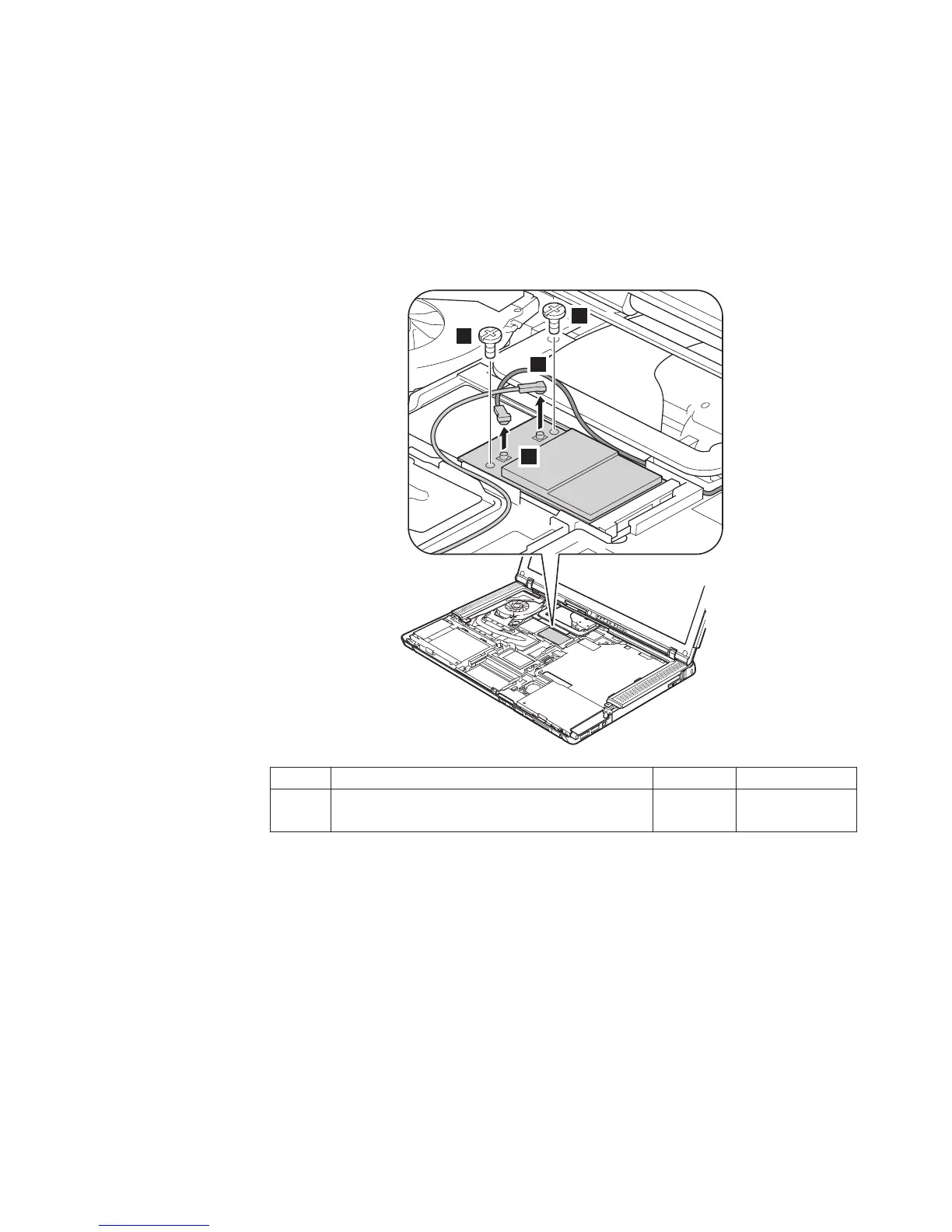

In steps 1a and 1b, unplug the jacks by using the removal tool antenna RF
connector (P/N: 08K7159), or pick the connectors with your fingers and gently
unplug them in the direction shown by the arrow.
1b
1a
2
2
Step Screw (quantity) Color Torque
2 M2 × 3 mm, flat-head, nylon-coated (2) Black 0.196 Nm
(2.0 kgfcm)
(continued)
Removing and replacing a FRU
ThinkPad Z60t 67
To Next Page
