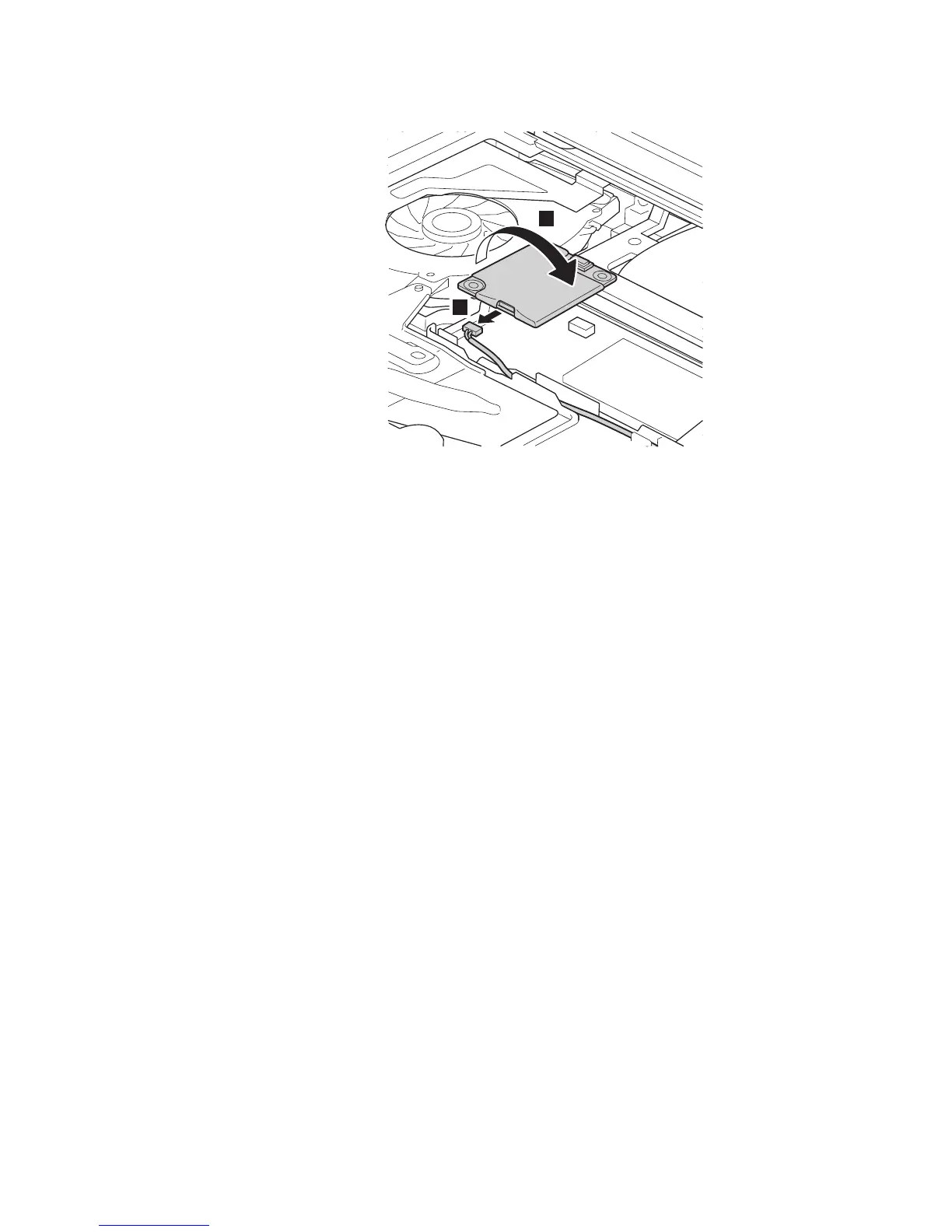

T
urn
the
car
d
over
3
,
and
detach
the
modem
connector
4
.
4
3
When
installing:
Make
sur
e
that
the
modem
connector
and
the
connector
on
the
underside
of
the
card
ar
e
attached
firmly
.
Removing
and
replacing
a
FRU
66
MT
251
1,
2512,
2513,
and
2514
71
73
Table of Contents
Default Chapter
3
Thinkpad Z60T
3
Table of Contents
5
1150 Wireless WAN Antenna (DIV) . 1160 LCD Assembly
5
About this Manual
7
Introduction
9
Important Service Information
9
Strategy for Replacing Frus
9
Strategy for Replacing a Hard Disk Drive
10
Important Notice for Replacing a System Board
10
How to Use Error Messages
10
Strategy for Replacing Frus for CTO, CMV, and GAV
10
Product Definition
10
FRU Identification for CTO, CMV, and GAV Products
11
Important Information about Replacing Rohs Compliant Frus
12
Diskette Compatibility Matrix
13
Safety Notices: Multilingual Translations
13
Safety Notices
14
Safety Information
19
General Safety
19
Electrical Safety
19
Safety Inspection Guide
21
Handling Devices that Are Sensitive to Electrostatic Discharge
22
Grounding Requirements
22
Laser Compliance Statement
23
General Descriptions
25
Read this First
25
What to Do First
25
Related Service Information
27
Service Web Site
27
Restoring the Pre-Installed System
27
Passwords
27
How to Remove the Power-On Password
28
Power Management
30
Checkout Guide
32
Testing the Computer
32
Detecting System Information with PC-Doctor
35
Power System Checkout
36
Checking the Battery Pack
37
Checking the Backup Battery
37
Thinkpad Z60T
39
Product Overview
40
Specifications
40
Status Indicators
42
FRU Tests
45
Fn Key Combinations
47
Symptom-To-FRU Index
50
Numeric Error Codes
50
Error Messages
54
Beep Symptoms
55
No-Beep Symptoms
55
LCD-Related Symptoms
56
Intermittent Problems
57
Undetermined Problems
57
FRU Replacement Notices
58
Screw Notices
58
Retaining Serial Numbers
58
Restoring the Serial Number of the System Unit
59
Retaining the UUID
59
Reading or Writing the ECA Information
59
Removing and Replacing a FRU
61
1010 Battery Pack
62
1020 Ultrabay Slim Device
63
1030 Hard Disk Drive Cover, Hard Disk Drive, and Hard Disk Drive Rubber Rails
64
1040 Palm Rest or Palm Rest with Fingerprint Reader
66
1050 DIMM
68
1060 Keyboard
69
1070 Modem Daughter Card (MDC-1.5)
71
1080 PCI Express Mini Card for Wireless WAN
73
1090 PCI Express Mini Card for Wireless LAN
75
1100 Backup Battery
77
1110 Keyboard Bezel
78
1120 Speaker Assembly
80
1130 Fan Assembly
82
1140 Cpu
84
1150 Wireless WAN Antenna (DIV)
85
1160 LCD Assembly
86
1170 Base Cover
89
1180 USB/S-Video Sub Card with Cable
92
1190 MG (Magnesium) Frame
93
1200 System Board and PC Card Slot Assembly
98
2010 LCD Front Bezel
103
2020 Inverter Card
105
2030 Bluetooth Daughter Card (BDC-2)
106
2040 Wireless WAN Antenna Cable (MAIN)
108
2050 LCD Panel, LCD Cable, and Hinges
111
2060 LCD Rear Cover and Wireless LAN Antenna Cables
114
Locations
120
Front View
120
Rear View
121
Bottom View
122
Parts List
123
Overall
124
LCD Frus
132
Keyboard
134
Recovery Cds
135
Windows XP Professional
135
Windows XP Home Edition
136
Miscellaneous Parts
137
AC Adapters
138
Common Parts List
138
Tools
138
Power Cords (System)
139
Notices
140
Trademarks
141
4
