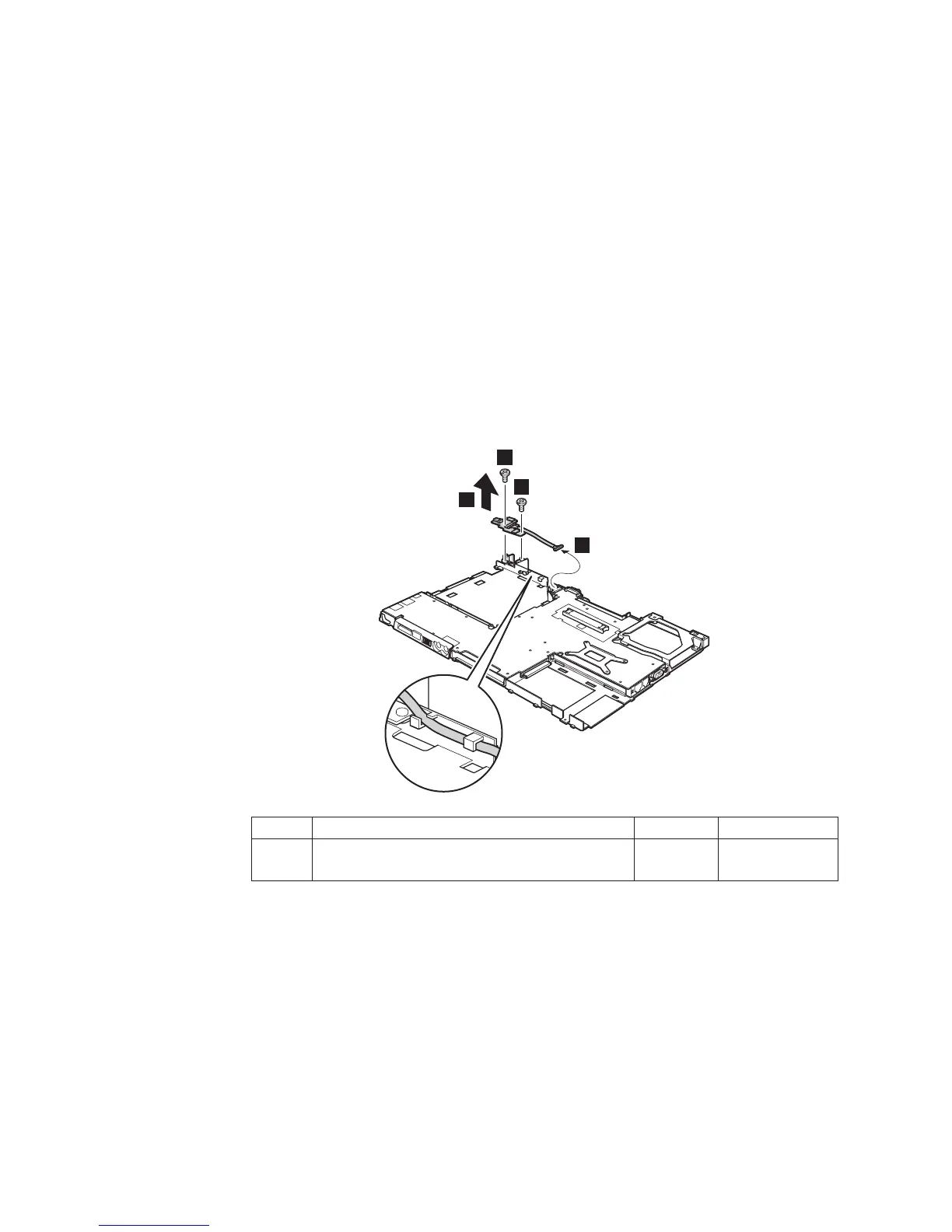

1180 USB/S-video sub card with cable
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 56
v “1020 Ultrabay Slim device” on page 57
v “1030 Hard disk drive cover, hard disk drive, and hard disk drive rubber rails”
on page 58
v “1040 Palm rest or palm rest with fingerprint reader” on page 60
v “1060 Keyboard” on page 63
v “1070 Modem daughter card (MDC-1.5)” on page 65
v “1080 PCI Express Mini card for wireless WAN” on page 67
v “1090 PCI Express Mini card for wireless LAN” on page 69
v “1110 Keyboard bezel” on page 72
v “1120 Speaker assembly” on page 74
v “1130 Fan assembly” on page 76
v “1150 Wireless WAN antenna (DIV)” on page 79
v “1160 LCD assembly” on page 80
v “1170 Base cover” on page 83
2
3
2
1
Step Screw (quantity) Color Torque
2 M2 × 3 mm, flat-head, nylon-coated (2) Black 0.196 Nm
(2.0 kgfcm)
When installing: Make sure that the connector 1 is attached firmly, and that the
cable is routed as in the figure above.
Removing and replacing a FRU
86 MT 2511, 2512, 2513, and 2514
