1170 Base cover
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 56
v “1020 Ultrabay Slim device” on page 57
v “1030 Hard disk drive cover, hard disk drive, and hard disk drive rubber rails”
on page 58
v “1040 Palm rest or palm rest with fingerprint reader” on page 60
v “1060 Keyboard” on page 63
v “1070 Modem daughter card (MDC-1.5)” on page 65
v “1080 PCI Express Mini card for wireless WAN” on page 67
v “1090 PCI Express Mini card for wireless LAN” on page 69
v “1110 Keyboard bezel” on page 72
v “1120 Speaker assembly” on page 74
v “1130 Fan assembly” on page 76
v “1150 Wireless WAN antenna (DIV)” on page 79
v “1160 LCD assembly” on page 80
1b
1b
1b
1a
1a
1b

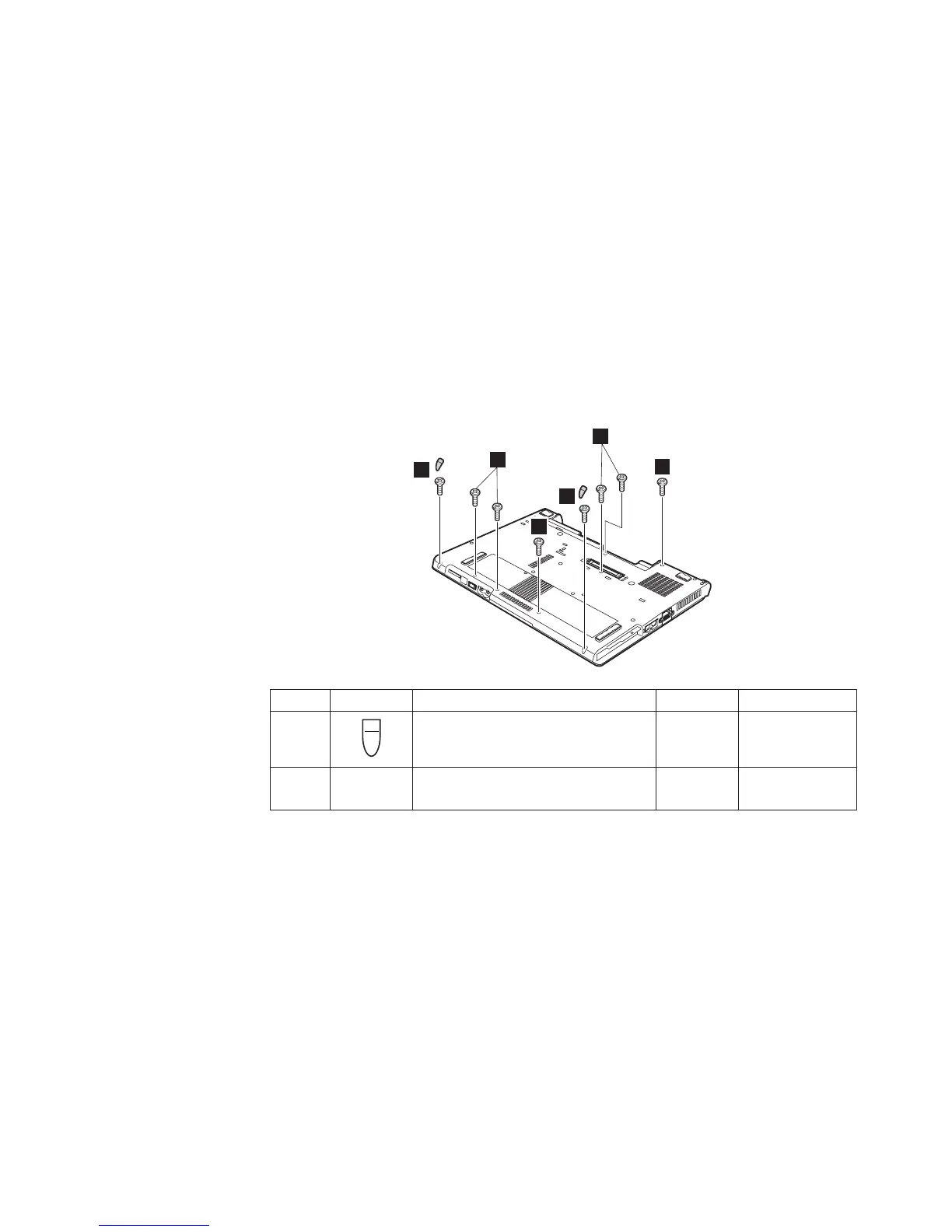

Step Screw cap Screw (quantity) Color Torque
1a
M2 × 5 mm, flat-head, nylon-coated
(2)
Black 0.196 Nm
(2.0 kgfcm)
1b — M2 × 5 mm, flat-head, nylon-coated
(6)
Black 0.196 Nm
(2.0
kgfcm)
(continued)
Removing and replacing a FRU
ThinkPad Z60t 83
