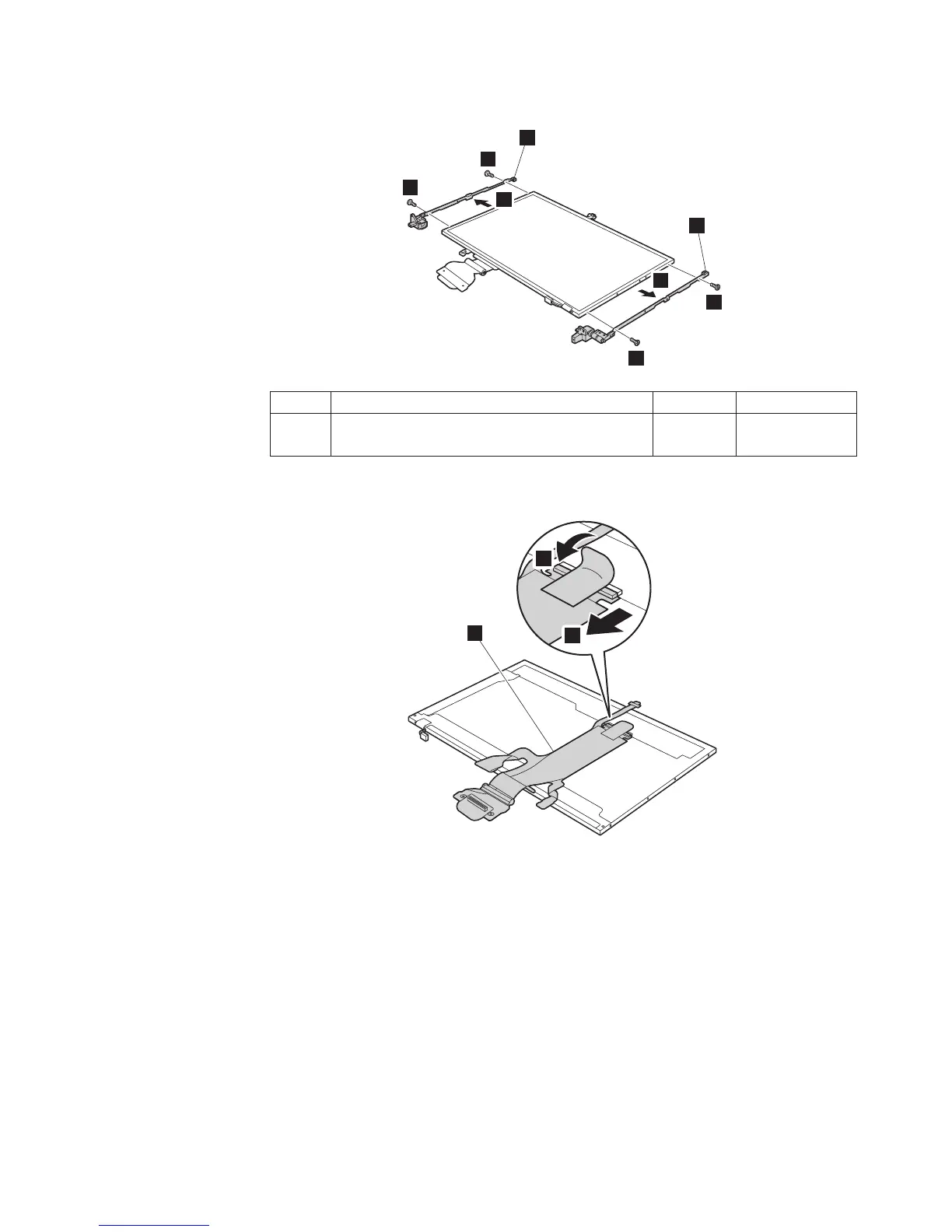

Remove the hinges a from the LCD panel.
7
7
7
7
8
8
a
a
Step Screw (quantity) Color Torque
7 M2 × 3 mm, small-head, nylon-coated (4) Silver 0.196 Nm
(2.0 kgfcm)
Remove the LCD cable assembly b from the LCD panel.
9
10
b
When installing: When replacing any LCD FRUs, be sure not to pinch the antenna
cables. Make sure that the cables are routed as shown in the
figures on page 112 and 113.
Removing and replacing a FRU
ThinkPad Z60t 107
