c.Connectthesignalcableofeachrackhandletothecorrespondingsignalcableconnectoronthe
backplaneforservermodelswith123.5-inchharddiskdrivebays.

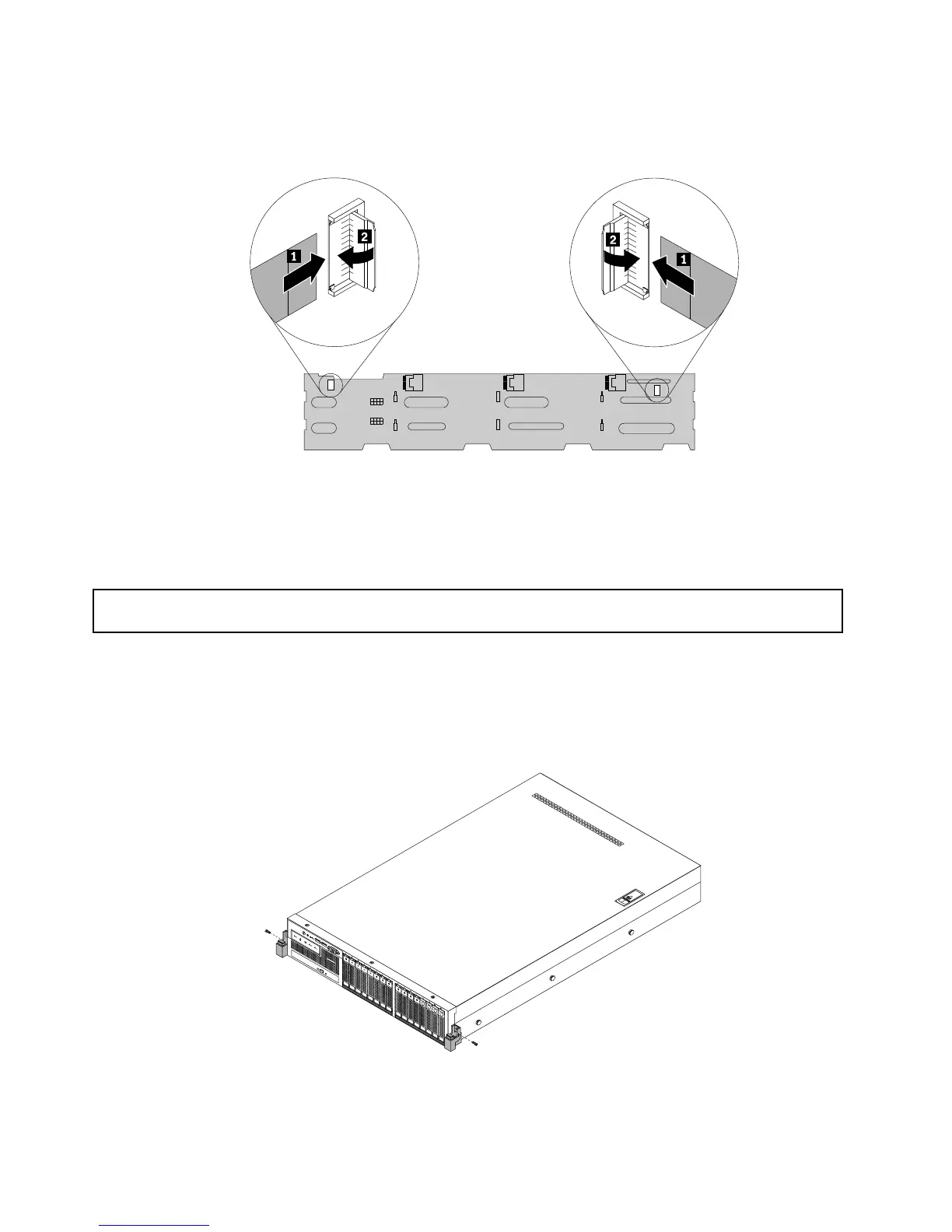

Figure49.Connectingtherackhandlesignalcablestothebackplane
8.Goto“Completingthepartsreplacement”onpage174.
Removingandreinstallingtherackhandlesforservermodelswitheight3.5-inch
harddiskdrivebaysandservermodelswith2.5-inchharddiskdrivebays
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstanding“Safetyinformation”
onpageiiiand“Guidelines”onpage81.
Toremoveandreinstalltherackhandlesforservermodelswitheight3.5-inchharddiskdrivebaysand
servermodelswith2.5-inchharddiskdrivebays,dothefollowing:
1.Oneachsideoftheserver,removethescrewthatsecurestherackhandleandthenremovetherack
handlefromthechassis.
Figure50.Removingtherackhandles
90ThinkServerRD430UserGuide
