1.Removethethreescrews1thatsecurethefrontbezelandthenpivotthefrontbezeloutwardto
removeitfromthechassis.

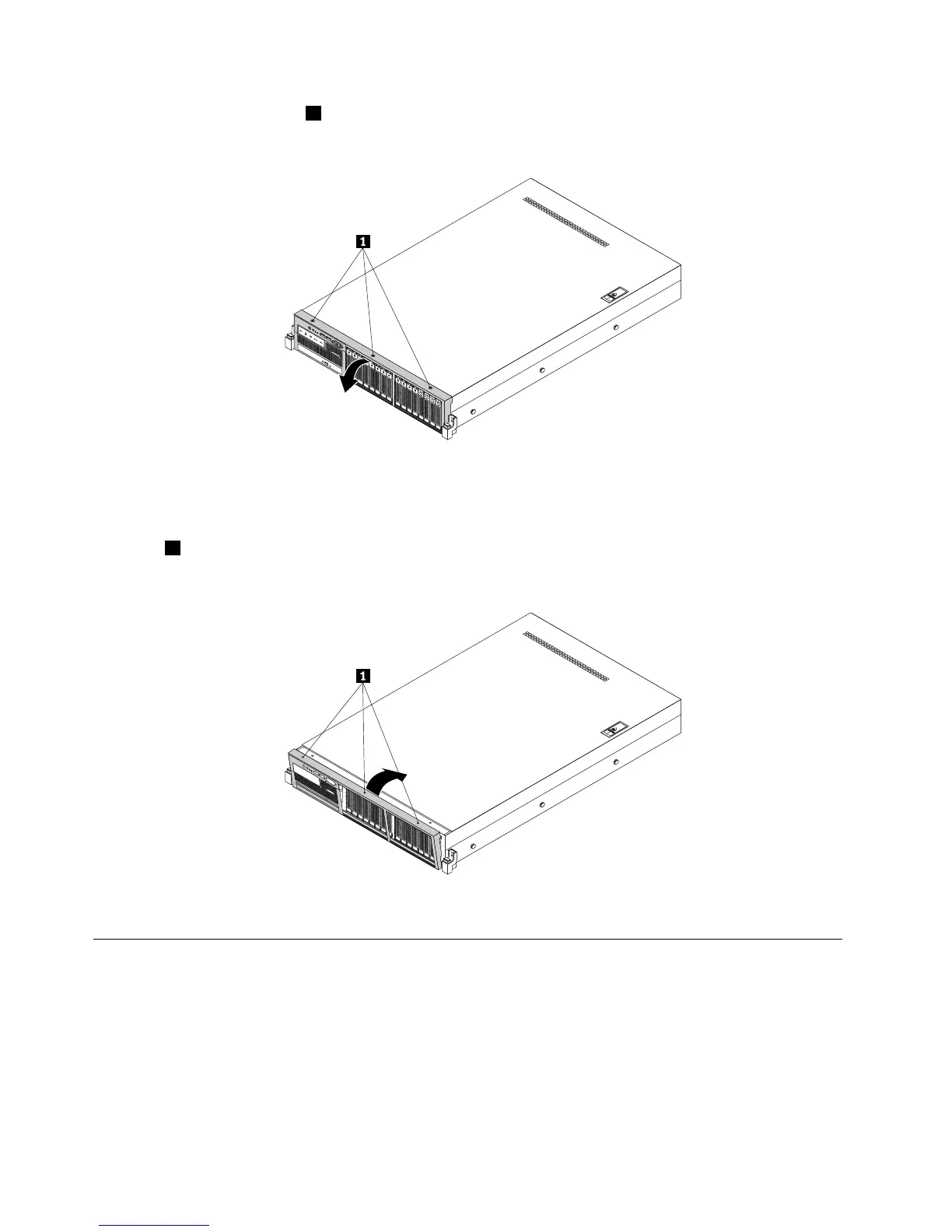

Figure44.Removingthefrontbezel
2.Toreinstallthefrontbezel,alignthetabsonthebottomedgeofthefrontbezelwiththecorresponding
holesinthechassis.Then,pivotthefrontbezelinwarduntilitsnapsintopositionandthethreescrew
holes
1inthetopedgeofthefrontbezelarealignedwiththecorrespondingholesinthetopofthe
chassis.Installthethreescrewstosecurethefrontbezelinplace.
ID
MEM 1
PSU 1 2
1 2 3 4 5 6 7 8
MEM 2
1 2 3 4 5 6 7 8 9
10
CPU 1 2
1 2 3 4 5 6 7 8 9
10
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Figure45.Installingthefrontbezel
Installing,removing,orreplacinghardware
Thistopicprovidesinstructionsonhowtoinstall,remove,orreplacehardwareforyourserver.Youcan
expandthecapabilitiesofyourserverbyaddingnewhardwaredevices,suchasmemorymodules,PCI
Expresscards,orotherserveroptions,andmaintainyourserverbyreplacingthefailinghardwaredevices.
Ifyouarehandlingaserveroption,refertotheappropriateinstallationandorremovalinstructionsinthis
topicalongwiththeinstructionsthatcomewiththeoption.
