Lenovo ThinkServer RD430 - Front View of the Server

Forservermodelswith123.5-inchharddiskdrivebays,themachinetype,model,andserialnumberlabelis
attachedontheleftsideoftheserver.

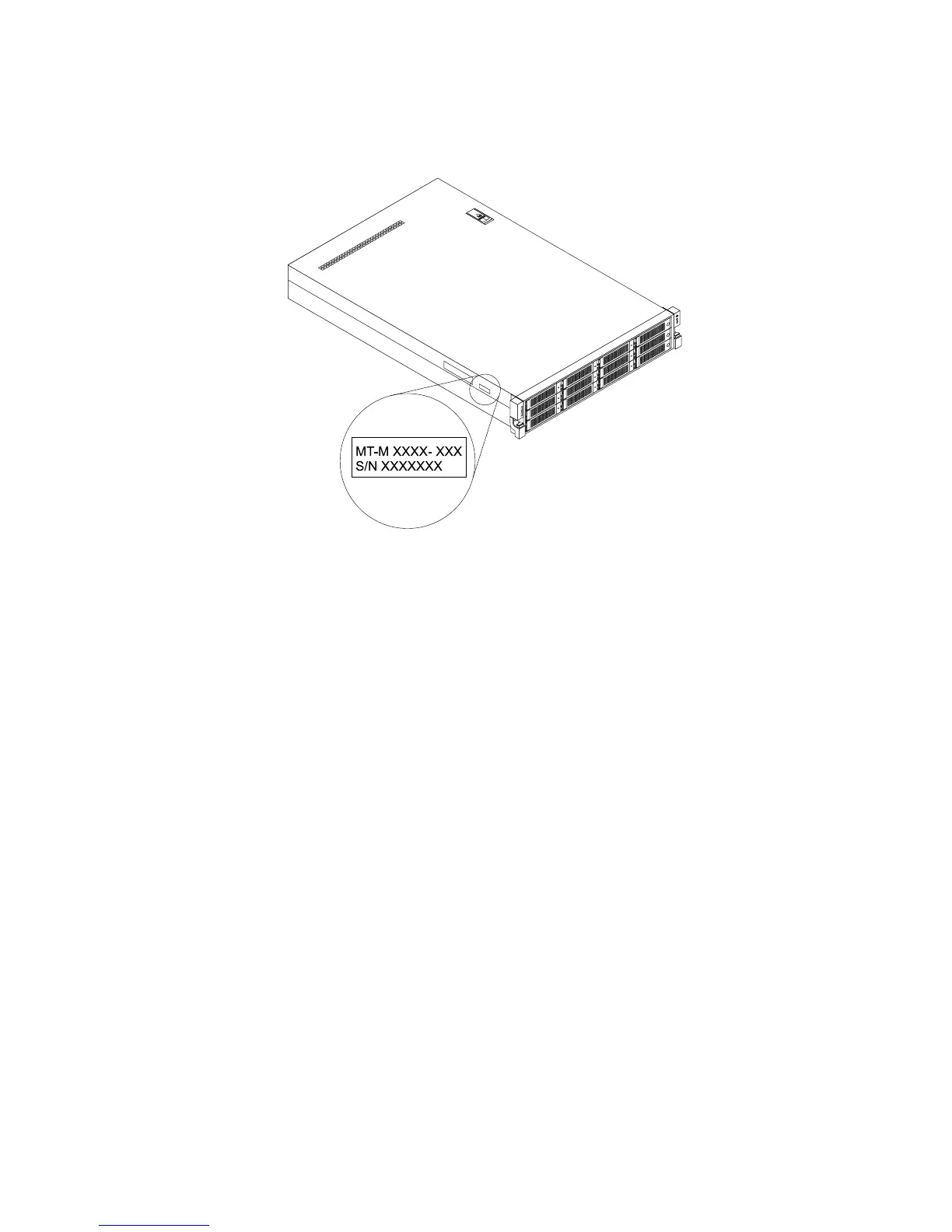

Figure4.Labelonservermodelswith123.5-inchharddiskdrivebays
Frontviewoftheserver
Thistopicprovidesinformationtohelpyoulocatethepartsonthefrontoftheserver.
Thefrontviewoftheservervariesbymodel.Theillustrationsinthistopicshowtheserverfrontviews
basedonthesupportedharddiskdrives:
•“Frontviewofservermodelswitheight3.5-inchharddiskdrivebays”onpage16
•“Frontviewofservermodelswith123.5-inchharddiskdrivebays”onpage17
•“Frontviewofservermodelswith2.5-inchharddiskdrivebays”onpage20
Note:Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationsinthistopic.
