10.Positionthenewrisercardassembly2onthechassisandalignitwiththerisercardassembly2sloton
thesystemboardandaligntherearofitwiththecorrespondingrailguidesintherearofthechassis.
Then,carefullypressthenewrisercardassembly2straightdownintothechassisuntilitisfullyseated.
Note:IfthereisanyPCIExpresscardinstalledontherisercardassembly2,carefullytthePCIExpress
cardintothechassisandproperlyrouteanycablesfromthecard.

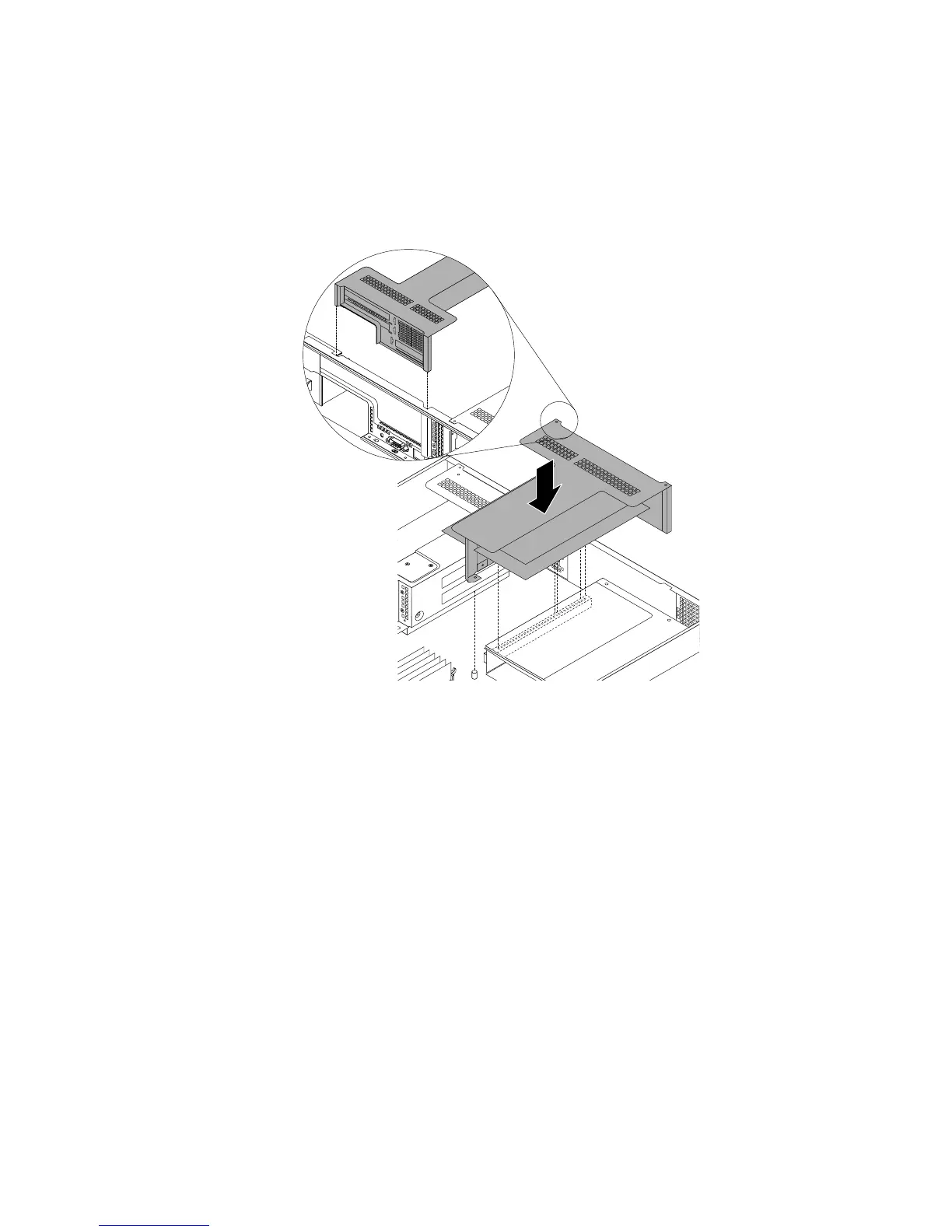

Figure122.Installingtherisercardassembly2
11.Ifyouareinstructedtoreturntheoldrisercardassembly2,followallpackaginginstructionsanduse
anypackagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletethereplacement,goto“Completingthepartsreplacement”onpage174.
Replacingthefrontpanelboard
Thistopicprovidesinstructionsonhowtoreplacethefrontpanelboard.Thistopiccontainsthefollowing
items:
•“Replacingthefrontpanelboardforservermodelswitheight3.5-inchharddiskdrivebays”onpage164
•“Replacingthefrontpanelboardforservermodelswith2.5-inchharddiskdrivebays”onpage165
Forservermodelswith123.5-inchharddiskdrivebays,thefrontUSBconnectorsareintegratedintotheleft
rackhandle;andthefrontcontrolsandLEDsareintegratedintotherightrackhandle.See“Frontviewof
servermodelswith123.5-inchharddiskdrivebays”onpage17fordetailedinformation.
Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
